H-4122

QuarterMaster Hot Asphalt

Mix Sample Splitter

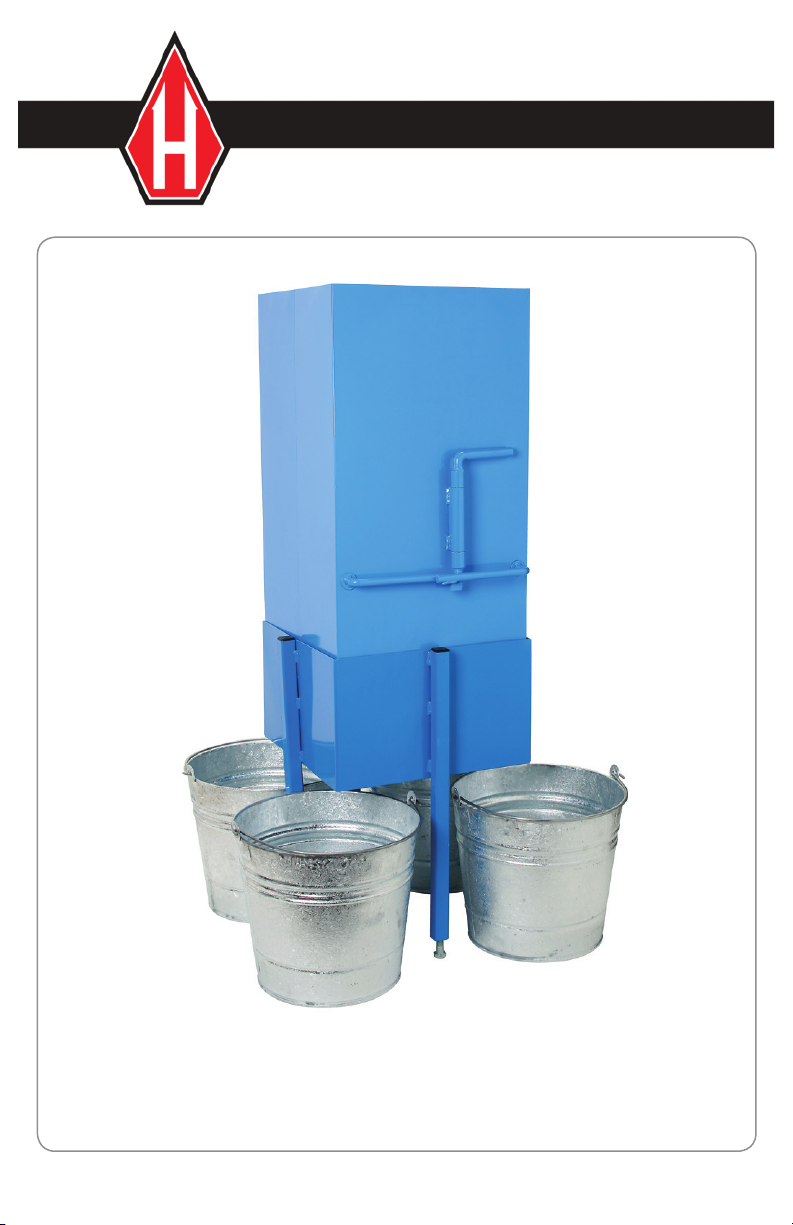

The H-4122 Quartermaster™ Splitter is a fixed, 4-chute splitter with a gate-release
hopper designed to "Quarter" or reduce sample size of aggregate and hotmix
asphalt materials. Aggregate materials larger than 2"or hot-mix asphalt of insufficient
temperature to be freeflowing may cause bridging in one or more of the fixed chutes
causing blockages and uneven or non-uniform sample distributions. Splitting accuracy
can only be as good as the methods employed. We suggest the following guidelines,
and all ASTM and AASHTO procedures to achieve representative sample accuracy.

Assembly:

1) Place the lower section or base unit of the Quartermaster™ Splitter with four
independently adjustable, threaded feet on a smooth, rigid surface.

2) Place a carpenters level a-cross the corners of the base unit, and adjust the four
threaded feet so that the base is stable, and level.

3) Place the upper hopper section of the Quartermaster™ Splitter on top of the base.
Verify the assembled unit remains stable and level.

4) Slide the (4) four, included galvanized buckets under the base, so that each container
makes contact with two adjacent legs, and each is positioned beneath one of the four
chute's. The handles of the buckets should be facing away from the center of the unit
forease of removing the samples after splitting.

5) Close the hopper by swinging both hopper doors upward and the release handle
under the hopper door catch mechanism.

Operating Instructions:

1) Check that the hopper doors are closed and secured with the handle/door catch

mechanism.

2) Obtain the aggregate or Hot-Mix asphalt sample to be quartered. (See warnings

below)

3) Place the sample, or samples into the hopper distributing evenly as you pour. Make

sure the sample is level from side-to-side and from front to back with a small scoop or
trowel.

4) Make sure all (4) four buckets are placed below each corner of the Quartermaster™

Splitter base.

5) Turn the Release Handle in a smooth, quick, motion, and allow the hopper gates to

open simultaneously.

6) Retain samples for testing.

Additional H-4122 Quartermaster™ Splitter Information:

For further reductions in sample size, use two opposite corners, combine in hopper and
repeat splitting process until the desired fraction is reached 1/8, 1/16, 1 /32, etc. For
easier clean-up of Hot-Mix asphalt samples, apply a coat of release agent on all surfaces
that are likely to come in contact with the asphalt. Please make sure release-agents used,
are approved for use with asphalt and do not change the characteristics of the mix being
tested.

Warnings

1) Asphalt paving materials can be hot, please use extreme caution, and always wear
protective clothing and safety equipment to prevent burns and serious injury.

2) Always practice proper lifting techniques when handling large samples.

3) Use caution when opening the hopper door to prevent injuries from pinching action of
the 0hopper door and the release handle mechanism

Proper attention to safety is the responsibility of the operator.

Warranty

Humboldt Mfg. Co. warrants its products to be free from defects in material or
workmanship. The exclusive remedy for this warranty is Humboldt Mfg. Co., factory
replacement of any part or parts of such product, for the warranty of this product please
refer to Humboldt Mfg. Co. catalog on Terms and Conditions of Sale. The purchaser is
responsible for the transportation charges. Humboldt Mfg. Co. shall not be responsible
under this warranty if the goods have been improperly maintained, installed, operated
or the goods have been altered or modified so as to adversely affect the operation, use
performance or durability or so as to change their intended use. The Humboldt Mfg. Co.
liability under the warranty contained in this clause is limited to the repair or replacement
of defective goods and making good, defective workmanship.
