Hughes & Kettner Attax 80 User Manual

BEDIENUNGSANLEITUNG

ENGLISH

DEUTSCH

FRANÇAIS

ITALIANO

ESPAÑOL

MANUAL

ATTAX 80

100-WATT GUITAR AMPLIFIER

MAINS

LEADCLEAN

MODE 2

INPUT

BASS

-50+5

0510

MASTER

CLEAN VOL

MID

-50+5

TREBLE

-50+5

0510

LEAD GAIN

BASS

-50+5

MID

-50+5

TREBLE

-50+5

0510

LEAD MASTER

0510

REVERB

0510

MASTER

CHANNEL

SELECT

IMPORTANT SAFETY INSTRUCTIONS

BEFORE CONNECTING, READ INSTRUCTIONS

• Read all of these instructions!

• Save these instructions for later use!

• Follow all warnings and instructions marked on the product!

• Do not use this product near water, i.e. bathtub, sink, swimming pool, wet base­ment, etc.

• Do not place this product on an unstable cart, stand or table. The product may fall,
causing serious damage to the product or to persons!

• Slots and openings in the cabinet and the back or bottom are provided for ventilati­on; to ensure reliable operation of the product and to protect it from overheating,
these openings must not be blocked or covered. This product should not be placed
in a built-in installation unless proper ventilation is provided.

• This product should not be placed near a source of heat such as a stove, radiator, or
another heat producing amplifier.

• Use only the supplied power supply or power cord. If you are not sure of the type
of power available, consult your dealer or local power company.

• Do not allow anything to rest on the power cord. Do not locate this product where
persons will walk on the cord.

• Never break off the ground pin on the power supply cord.

• Power supply cords should always be handled carefully. Periodically check cords
for cuts or sign of stress, especially at the plug and the point where the cord exits
the unit.

• The power supply cord should be unplugged when the unit is to be unused for long
periods of time.

• If this product is to be mounted in an equipment rack, rear support should be provi­ded.

• This product should be used only with a cart or stand that is recommended by
Hughes & Kettner.

• Never push objects of any kind into this product through cabinet slots as they may
touch dangerous voltage points or short out parts that could result in risk of fire or
electric shock. Never spill liquid of any kind on the product.

• Do not attempt to service this product yourself, as opening or removing covers may
expose you to dangerous voltage points or other risks. Refer all servicing to qualified
service personnel.

• Unplug this product from the wall outlet and refer servicing to qualified service per­sonnel under the following conditions:

• When the power cord or plug is damaged or frayed.

• If liquid has been spilled into the product.

• If the product has been exposed to rain or water.

• If the product does not operate normally when the operating instructions are follo­wed.

• If the product has been dropped or the cabinet has been damaged.

• If the product exhibits a distinct change in performance, indicating a need of servi­ce!

• Adjust only these controls that are covered by the operating instructions since
improper adjustment of other controls may result in damage and will often require
extensive work by a qualified technician to restore the product to normal operation.

• Exposure to extremely high noise levels may cause a permanent hearing loss.

• Individuals vary considerably in susceptibility to noise induced hearig loss, but
nearly everyone will lose some hearing if exposed to sufficiently intense noise for a
sufficient time. The U.S. Government´s Occupational Safety and Health
Administration (OSHA) has specified the following permissible noise level exposu­res:

Duration Per Day In Hours Sound LeveldBA, Slow Response

890
692
495
397
2100

11/

2

102

1105

1

/

2

110

1

/

4

or less 115

• According to OSHA, any exposure in excess of the above permissible limits could
result in some hearing loss.

• Ear plug protectors in the ear canals or over the ears must be worn when operating
this amplification system in order to prevent a permanent hearing loss if exposure is
in excess of the limits as set forth above. To ensure against potentially dangerous
exposure to high sound pressure levels, it is recommended that all persons exposed
to equipment capable of producing high sound pressure levels such as this amplifi­cation system be protected by hearing protectors while this unit is in operation.

• Fuses: For continued protection against risk of fire, replace fuses only with the same
type and ratings.

TO PREVENT THE RISK OF FIRE AND SHOCK HAZARD, DO NOT EXPOSE
THIS APPLIANCE TO MOISTURE OR RAIN. DO NOT OPEN CASE; NO
USER SERVICE-ABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

WICHTIGE SICHERHEITSHINWEISE!

BITTE VOR GEBRAUCH LESEN UND FÜR SPÄTEREN GEBRAUCH
AUFBEWAHREN!

• Das Gerät wurde von Hughes & Kettner gemäß IEC 65 gebaut und hat das Werk in sicher­heitstechnisch einwandfreiem Zustand verlassen. Um diesen Zustand zu erhalten und
einen gefahrlosen Betrieb sicherzustellen, muß der Anwender die Hinweise und die
Warnvermerke beachten, die in der Bedienungsanleitung enthalten sind. Das Gerät ent­spricht der Schutzklasse I (schutzgeerdet).

• DIE SICHERHEIT, ZUVERLÄSSIGKEIT UND LEISTUNG DES GERÄTES WIRD VON HUG­HES & KETTNER NUR DANN GEWÄHRLEISTET, WENN:

• Montage, Erweiterung, Neueinstellung, Änderungen oder Reparaturen von Hughes &
Kettner oder von dazu ermächtigten Personen ausgeführt werden.

• die elektrische Installation des betreffenden Raumes den Anforderungen von IEC (ANSI)­Festlegungen entspricht.

• das Gerät in Übereinstimmung mit der Gebrauchsanweisung verwendet wird.

WARNUNG:

• Wenn Abdeckungen geöffnet oder Gehäuseteile entfernt werden, außer wenn dies von
Hand möglich ist, können Teile freigelegt werden, die Spannung führen.

• Wenn ein Öffnen des Gerätes erforderlich ist, muß das Gerät von allen Spannungsquellen
getrennt sein. Berücksichtigen Sie dies vor dem Abgleich, vor einer Wartung, vor einer
Instandsetzung und vor einem Austausch von Teilen.

• Ein Abgleich, eine Wartung oder eine Reparatur am geöffneten Gerät unter Spannung darf
nur durch eine vom Hersteller autorisierte Fachkraft (nach VBG 4) geschehen, die mit den
verbundenen Gefahren vertraut ist.

• Lautsprecher-Ausgänge, die mit dem IEC 417/5036-Zeichen (Abb.1, s.unten) versehen sind
können berührungsgefährliche Spannungen führen. Deshalb vor dem Einschalten des
Gerätes Verbindung nur mit dem vom Hersteller empfohlenen Anschlußkabel zum
Lautsprecher herstellen.

• Alle Stecker an Verbindungskabeln müssen mit dem Gehäuse verschraubt oder verriegelt
sein, sofern möglich.

• Es dürfen nur Sicherungen vom angegebenen Typ und der angegebenen Nennstromstärke
als Ersatz verwendet werden.

• Eine Verwendung von geflickten Sicherungen oder Kurzschließen des Halters ist unzuläs­sig.

• Niemals die Schutzleiterverbindung unterbrechen.

• Oberflächen, die mit dem „HOT“-Zeichen (Abb.2, s.unten) versehen sind, Rückwände
oder Abdeckungen mit Kühlschlitzen, Kühlkörper und deren Abdeckungen, sowie Röhren
und deren Abdeckungen können im Betrieb erhöhte Temperaturen annehmen und sollten
deshalb nicht berührt werden.

• Hohe Lautstärkepegel können dauernde Gehörschäden verursachen. Vermeiden Sie des­halb die direkte Nähe von Lautsprechern, die mit hohen Pegeln betrieben werden.
Verwenden Sie einen Gehörschutz bei dauernder Einwirkung hoher Pegel.

NETZANSCHLUSS:

• Das Gerät ist für Dauerbetrieb ausgelegt.

• Die eingestellte Betriebsspannung muß mit der örtlichen Netzspannung übereinstimmen.

• Achtung: Der Netzschalter des Gerätes muß in 0 - Position stehen, wenn das Netzkabel
angeschlossen wird.

• Der Anschluß an das Stromnetz erfolgt mit dem mitgelieferten Netzteil oder Netzkabel.

• Netzteil: Eine beschädigte Anschlußleitung kann nicht ersetzt werden. Das Netzteil darf
nicht mehr betrieben werden.

• Vermeiden Sie einen Anschluß an das Stromnetz in Verteilerdosen zusammen mit vielen
anderen Stromverbrauchern.

• Die Steckdose für die Stromversorgung muß nahe am Gerät angebracht und leicht zugäng­lich sein.

AUFSTELLUNGSORT:

• Das Gerät sollte nur auf einer sauberen, waagerechten Arbeitsfläche stehen.

• Das Gerät darf während des Betriebs keinen Erschütterungen ausgesetzt sein.

• Feuchtigkeit und Staub sind nach Möglichkeit fernzuhalten.

• Das Gerät darf nicht in der Nähe von Wasser, Badewanne, Waschbecken, Küchenspüle,
Naßraum, Swimmingpool oder feuchten Räumen betrieben werden. Keine mit Flüssigkeit
gefüllten Gegenstände -Vase, Gläser, Flaschen etc. auf das Gerät stellen.

• Sorgen Sie für ausreichende Belüftung der Geräte.

• Eventuelle Ventilationsöffnungen dürfen niemals blockiert oder abgedeckt werden. Das
Gerät muß mindestens 20 cm von Wänden entfernt aufgestellt werden. Das Gerät darf nur
dann in ein Rack eingebaut werden, wenn für ausreichende Ventilation gesorgt ist und die
Einbauanweisungen des Herstellers eingehalten werden.

• Vermeiden Sie direkte Sonneneinstrahlung sowie die unmittelbare Nähe von Heizkörpern
und Heizstrahlern oder ähnlicher Geräte.

• Wenn das Gerät plötzlich von einem kalten an einen warmen Ort gebracht wird, kann sich
im Geräteinnern Kondensfeuchtigkeit bilden. Dies ist insbesondere bei Röhrengeräten zu
beachten. Vor dem Einschalten solange warten bis das Gerät Raumtemperatur angenommen
hat.

• Zubehör: Das Gerät nicht auf einen instabilen Wagen, Ständer, Dreifuß, Untersatz oder
Tisch stellen. Wenn das Gerät herunterfällt, kann es Personenschäden verursachen und
selbst beschädigt werden. Verwenden Sie das Gerät nur mit einem vom Hersteller empfoh­lenen oder zusammen mit dem Gerät verkauften Wagen, Rack, Ständer, Dreifuß oder
Untersatz. Bei der Aufstellung des Gerätes müssen die Anweisungen des Herstellers befolgt
und muß das vom Hersteller empfohlene Aufstellzubehör verwendet werden. Eine
Kombination aus Gerät und Gestell muß vorsichtigt bewegt werden. Plötzliches Anhalten,
übermäßige Kraftanwendung und ungleichmäßige Böden können das Umkippen der
Kombination aus Gerät und Gestell bewirken.

• Zusatzvorrichtungen: Verwenden Sie niemals Zusatzvorrichtungen, die nicht vom
Hersteller empfohlen wurden, weil dadurch Unfälle verursacht werden können

• Zum Schutz des Gerätes bei Gewitter oder wenn es längere Zeit nicht beaufsichtigt oder
benutzt wird, sollte der Netzstecker gezogen werden. Dies verhindert Schäden am Gerät
aufgrund von Blitzschlag und Spannungsstößen im Wechselstromnetz.

Abb.1 Abb.2

ENGLISH

DEUTSCH

FRANÇAIS

ITALIANO

ESPAÑOL

CONSEILS DE SECURITE IMPORTANTS!

PRIERE DE LIRE AVANT L’EMPLOI ET A CONSERVER POUR UTILISATION
ULTERIEURE!

•L’appareil a été conçu par Hughes & Kettner selon la norme IEC 65 et a quitté l’ent­reprise dans un état irréprochable. Afin de conserver cet état et d’assurer un fonc­tionnement sans danger de l’appareil nous conseillons à l’utilisateur la lecture des
indications de sécurité contenues dans le mode d’emploi. L’appareil est conforme à
la classification I (mise à terre de protection).

• SURETE, FIABILITE ET EFFICACITE DE L’APPAREIL NE SONT GARANTIS PAR HUG­HES & KETTNER QUE SI:

• Montage, extension, nouveau réglage, modification ou réparation sont effectués par
Hughes & Kettner ou par toute personne autorisée par Hughes & Kettner.

•L’installation électrique de la pièce concernée correspond aux normes IEC (ANSI).

•L’utilisation de l’appareil suit le mode d’emploi.

AVERTISSEMENT:

•Amoins que cela ne soit manuellement possible, tout enlèvement ou ouverture du
boîtier peut entrainer la mise au jour de pieces sous tension.

• Si l’ouverture de l’appareil est nécessaire, celui-ci doit être coupé de chaque source
de courant. Ceci est à prendre en considération avant tout ajustement, entretien,
réparation ou changement de pieces.

• Ajustement, entretien ou réparation sur l’appareil ouvert et sous tension ne peuvent
être éffectués que par un spécialiste autorisé par le fabricant (selon VBG4). Le spé­cialiste étant conscient des dangers liés à ce genre de réparation.

• Les sorties de baffles qui portent le signe IEC 417/5036 (fig. 1, voir en bas) peuvent
être sous tension dangereuse. Avant de brancher l’appareil utiliser uniquement le
câble de raccordement conseillé par le fabricant pour raccorder les baffles.

•Toutes les prises des câbles de raccordement doivent être, si possible, vissées ou
verrouillées sur le boîtier.

• Utilisez subsidiairement uniquement des fusibles de type et de puissance de courant
nominale donnés.

•L’utilisation de fusibles rafistolés ou court-circuites est inadmissible.

• Ne jamais interrompre la connexion du circuit protecteur.

• Il est conseillé de ne pas toucher aux surfaces pourvues du signe „HOT“ (fig. 2, voir
en bas), aux parois arrières ou caches munis de fentes d’aération, éléments d’aérati­on et leurs caches ansi qu’aux tubes et leurs caches. Ces éléments pouvant atteindre
des températures élévées pendant l’utilisation de l’appareil.

• Les Niveaux de puissance élévés peuvent entrainer des lésions auditives durables.
Evitez donc la proximité de haut-parleurs utilisés à haute puissance. Lors de haute
puissance continue utilisez une protection auditive.

BRANCHEMENT SUR LE SECTEUR:

•L’appareil est conçu pour une utilisation continue.

• La tension de fonctionnement doit concorder avec la tension secteur locale.

• Attention: L’interrupteur de secteur de l’appareil doit être sur la position „0“, lorsque
le câble de réseau est raccordé.

• Le raccordement au réseau éléctrique s’effectue avec l’adaptateur ou le cordon
d´alimentation livré avec l’appareil.

• Adaptateur: Un câble de raccordement abimé ne peut être remplacé. L’adaptateur
est inutilisable.

• Evitez un raccordement au réseau par des boîtes de distribution surchargées.

• La prise de courant doit être placée à proximité de l’appareil et facile à atteindre.

LIEU D’INSTALLATION:

•L’appareil doit être placé sur une surface de travail propre et horizontale.

•L’appareil en marche ne doit en aucun cas subir des vibrations.

• Evitez dans la mesure du possible poussière et humidité.

•L’appareil ne doit pas être placé à proximité d’eau, de baignoire, lavabo, évier,
pièce d’eau, piscine ou dans une pièce humide. Ne placez aucun vase, verre, bou­teille ou tout objet rempli de liquide sur l’appareil.

•L’appareil doit être suffisamment aéré.

• Ne jamais recouvrir les ouvertures d’aération. L’appareil doit être placé à 20 cm du
mur au minimum. L’appareil peut être monté dans un Rack si une ventilation suffi­sante est possible et si les conseils de montage du fabricant sont suivis.

• Evitez les rayons de soleil et la proximité de radiateurs, chauffages etc.

• Une condensation d’eau peut se former dans l’appareil si celui-ci est transporté
brusquement d’un endroit froid à un endroit chaud. Ceci est particulièrement impor­tant pour des appareils à tubes. Avant de brancher l’appareil attendre qu’il ait la
température ambiante.

• Accessoires: L’appareil ne doit être placé sur un chariot, support, trépied, bâti ou
table instable. Une chute de l’appareil peut entrainer aussi bien des dommages cor­porels que techniques. Utilisez l’appareil uniquement avec un chariot, Rack, sup­port, trépied ou bâti conseillé par le fabricant ou vendu en combinaison avec l’ap­pareil. Les indications du fabricant pour l’installation de l’appareil sont à suivre, et
les accessoires d’installation conseillés par le fabricant sont à utiliser. Un ensemble
support et appareil doit être déplacé avec précaution. Des mouvements brusques et
des revêtements de sol irreguliers peuvent entrainer la chute de l´ensemble.

• Equipements supplémentaires: Ne jamais utiliser un équipement supplémentaire
n’ayant pas été conseillé par le fabricant, ceci pouvant entrainer des accidents.

• Afin de protéger l’appareil pendant un orage ou s’il ne doit pas être utilisé pendant
un certain temps, il est conseillé d’enlever la prise au secteur. Ceci évite des dom­mages dûs à la foudre ou à des coups de tension dans le réseau à courant alternatif.

Fig. 1 Fig. 2

IMPORTANT ADVICE ON SAFETY!

PLEASE READ BEFORE USE AND KEEP FOR LATER USE!

• The unit has been built by Hughes & Kettner in accordance with IEC 65 and left the
factory in safe working order. To maintain this condition and ensure non-risk operati­on, the user must follow the advice and warning comments found in the operating
instructions. The unit conforms to Protection Class 1 (protectively earthed).

• HUGHES & KETTNER ONLY GUARANTEE THE SAFETY, RELIABILITY AND EFFICIEN­CY OF THE UNIT IF:

• Assembly, extension, re-adjustment, modifications or repairs are carried out by Hughes
& Kettner or by persons authorized to do so.

• The electrical installation of the relevant area complies with the requirements of IEC
(ANSI) specifications.

•The unit is used in accordance with the operating instructions.

• The unit is regularly checked and tested for electrical safety by a competent technici­an.

WARNING:

• If covers are opened or sections of casing are removed, except where this can be done
manually, live parts can become exposed.

• If it is necessary to open the unit this must be isolated from all power sources. Please
take this into account before carrying out adjustments, maintenance, repairs and befo­re replacing parts.

• Adjustment, maintenance and repairs carried out when the unit has been opened and
is still live may only be performed by specialist personnel who are authorized by the
manufacturer (in accordance with VBG 4) and who are aware of the associated
hazards.

• Loudspeaker outputs which have the IEC 417/5036 symbol (Diagram 1, below) can
carry voltages which are hazardous if they are made contact with. Before the unit is
switched on, the loudspeaker should therefore only be connected using the lead
recommended by the manufacturer.

• Where possible, all plugs on connection cables must be screwed or locked onto the
casing.

• Replace fuses using only those of the specified type and current rating.

• It is not permitted to use repaired fuses or to short-circuit the fuse holder.

• Never interrupt the protective conductor connection.

• Surfaces which are equipped with the „HOT“ mark (Diagram 2, below), rear panels or
covers with cooling slits, cooling bodies and their covers, as well as tubes and their
covers are purposely designed to dissipate high temperatures and should therefore not
be touched.

• High loudspeaker levels can cause permanent hearing damage. You should therefore
avoid the direct vicinity of loudspeakers operating at high levels. Wear hearing protec­tion if continuously exposed to high levels.

MAINS CONNECTION:

• The unit is designed for continuous operation.

• The set operating voltage must match the local mains supply voltage.

• Caution: The unit mains switch must be in position ‘0’ before the mains cable is
connected.

• The unit is connected to the mains via the supplied power unit or power cable.

• Power unit: Never use a damaged connection lead. Any damage must be rectified by
a competent technician.

• Avoid connection to the mains supply in distributor boxes together with several other
power consumers.

• The plug socket for the power supply must be positioned near the unit and must be
easily accessible.

PLACE OF INSTALLATION:

• The unit should stand only on a clean, horizontal working surface.

• The unit must not be exposed to vibrations during operation.

• Keep away from moisture and dust where possible.

• Do not place the unit near water, baths, wash basins, kitchen sinks, wet areas, swim­ming pools or damp rooms. Do not place objects containing liquid on the unit - vases,
glasses, bottles etc.

• Ensure that the unit is well ventilated.

• Any ventilation openings must never be blocked or covered. The unit must be positio­ned at least 20 cm away from walls. The unit may only be fitted in a rack if adequate
ventilation is ensured and if the manufacturer’s installation instructions are followed.

• Keep away from direct sunlight and the immediate vicinity of heating elements and
radiant heaters or similar devices.

• If the unit is suddenly moved from a cold to a warm location, condensation can form
inside it. This must be taken into account particularly in the case of tube units. Before
switching on, wait until the unit has reached room temperature.

• Accessories: Do not place the unit on an unsteady trolley, stand, tripod, base or table.
If the unit falls down, it can cause personal injury and itself become damaged. Use the
unit only with the trolley, rack stand, tripod or base recommended by the manufactu­rer or purchased together with the unit. When setting the unit up, all the manufactu­rer’s instructions must be followed and the setup accessories recommended by the
manufacturer must be used. Any combination of unit and stand must be moved
carefully. A sudden stop, excessive use of force and uneven floors can cause the com­bination of unit and stand to tip over.

• Additional equipment: Never use additional equipment which has not been recom­mended by the manufacturer as this can cause accidents.

• To protect the unit during bad weather or when left unattended for prolonged periods,
the mains plug should be disconnected. This prevents the unit being damaged by light­ning and power surges in the AC mains supply.

Diagram 1 Diagram 2

IMPORTANTI AVVERTIMENTI DI SICUREZZA!

Leggere attentamente prima dell’uso e conservare per un uti­lizzo successivo:

• L’apparecchio è stato costruito dalla Hughes & Kettner secondo la normativa europea IEC
65 ed ha lasciato il nostro stabilimento in stato ineccepibile. Per garantire il mantenimento
di tale stato e un utilizzo assolutamente privo di rischi l’utente è tenuto ad osservare le
indicazioni e gli avvertimenti di sicurezza contenuti nelle istruzioni per l’uso.
L’apparecchio rispecchia il livello di sicurezza I (collegato a terra).

• Sicurezza, affidabilità e prestazioni dell’apparecchio vengono garantiti dalla Hughes &
Kettner solo ed esclusivamente se:

• Montaggio, ampliamento, rimessa a punto, modifiche e riparazioni vengono eseguite dalla
Hughes & Kettner stessa o da personale da essa autorizzato.

• Gli impianti elettrici nei locali prescelti per l’uso dell’apparecchio rispondono alle norma­tive stabilite dall’ANSI.

• L’apparecchio viene utilizzato come indicato nel libretto delle istruzioni per l’uso.

Avvertimenti:

• In caso di apertura di parti di rivestimento o rimozione di parti dell’involucro, a meno che
non si tratti di pezzi rimovibili semplicemente a mano, possono venire alla luce parti dell’­apparecchio conduttrici di tensione.

• Se l’apertura dell’apparecchio dovesse risultare necessaria è indispensabile staccare prece­dentemente quest’ultimo da tutte le fonti di tensione. Rispettare tale misura di prevenzione
anche prima di un allineamento, di operazioni di manutenzione, della messa in esercizio
o della sostituzione di componenti all’interno dell’apparecchio.

• Allineamento, operazioni di manutenzione o eventuali riparazioni dell’apparecchio in pre­senza di tensione vanno eseguite esclusivamente da personale specializzato ed autorizza­to, in grado di eseguire tali operazioni evitandone i rischi connessi.

• Le uscite degli altoparlanti contrassegnate dai caratteri IEC 417/5036 (vedi illustrazione 1 a
fondo pag.) possono essere conduttrici di tensione pericolosa con cui evitare il contatto.
Per questo motivo, prima di accendere l’apparecchio, collegare quest’ultimo agli altopar­lanti servendosi esclusivamente del cavetto d’allacciamento indicato dal produttore.

• Tutte le spine e i cavi di collegamento devono essere avvitati o fissati all’involucro dell’ap­parecchio per quanto possibile.

• Tutti i fusibili di sicurezza vanno sostituiti esclusivamente con fusibili del tipo prescritto e
valore della corrente nominale indicato.

• L’utilizzo di fusibili di sicurezza non integri e la messa in corto circuito del sostegno di
metallo sono proibite.

• Non interrompere mai il collegamento con il circuito di protezione.

• Superfici contrassegnate dalla parola „HOT“ (vedi illustrazione 2 a fondo pag.), cosi come
griglie di aerazione, dispositivi di raffreddamento e i loro rivestimenti di protezione, oppu­re valvole e i relativi rivestimenti protettivi possono surriscaldarsi notevolmente durante
l’uso e per questo motivo non vanno toccate.

• L’ascolto di suoni ad alto volume può provocare danni permanenti all’udito. Evitate perciò
la diretta vicinanza con altoparlanti ad alta emissione di suono e utilizzate cuffie protettive
in caso ciò non sia possibile.

Alimentazione:

• L’apparecchio è concepito per il funzionamento continuo.

• La tensione di esercizio deve corrispondere alla tensione di rete a cui ci si allaccia.

• Attenzione: l’interruttore di alimentazione dell’apparecchio deve essere in posizione 0
quando viene allacciato il cavetto d’alimentazione.

• L’allacciamento alla rete elettrica avviene tramite alimentatore o cavetto d’alimentazione
consegnato insieme all’apparecchio.

• Alimentatore: un cavo di connessione danneggiato non può essere sostituito.
L’alimentatore non può più essere utilizzato.

• Evitate un allacciamento alla rete di corrente utilizzando cassette di distribuzione sovrac­cariche.

• La spina di corrente deve essere situata nelle vicinanze dell’apparecchio e facilmente rag­giungibile in qualsiasi momento.

Locali di collocamento:

• Opportuno collocare l’apparecchio su una superficie pulita e orizzontale.

• Non sottoporre l’apparecchio in funzione a scosse e vibrazioni.

• Proteggere l’apparecchio per quanto possibile da umidità e polvere.

• Non collocare l’apparecchio vicino ad acqua, vasche da bagno, lavandini, lavelli da cuci­na, locali umidi o piscine. Non appoggiare recipienti contenenti liquidi - vasi, bicchieri,
bottiglie, ecc. - sull’apparecchio.

• Provvedere ad una buone aerazione dell’apparecchio.

• Eventuali aperture previste per la ventilazione dell’apparecchio non vanno ne bloccate, ne
mai coperte. L’apparecchio va collocato ad almeno 20 cm di distanza dalle pareti cir­costanti e può essere inserito tra altre componenti di un impianto solo in caso di sufficien­te ventilazione e qualora le direttive di montaggio del produttore vengano rispettate.

• Evitare di esporre l’apparecchio ai raggi del sole e di collocarlo direttamente nelle vicinan­ze di fonti di calore come caloriferi, stufette, ecc.

• Se l’apparecchio viene trasportato rapidamente da un locale freddo ad uno riscaldato può
succedere che al suo interno si crei della condensa. Ciò va tenuto in considerazione
soprattutto in caso di apparecchi a valvole. Attendere che l’apparecchio abbia assunto la
temperatura ambiente prima di accenderlo.

• Accessori: non collocare l’apparecchio su carrelli, supporti, treppiedi, superfici o tavoli
instabili. Se l’apparecchio dovesse cadere a terra potrebbe causare danni a terzi o danneg­giarsi irreparabilmente. Utilizzate per il collocamento dell’apparecchio supporti, treppiedi
e superfici che siano consigliate dal produttore o direttamente comprese nell’offerta di
vendita. Per il collocamento dell’apparecchio attenetevi strettamente alle istruzioni del
produttore, utilizzando esclusivamente accessori da esso consigliati. L’apparecchio in
combinazione ad un supporto va spostato con molta attenzione. Movimenti bruschi o il
collocamento su pavimenti non piani possono provocare la caduta dell’apparecchio e del
suo supporto.

• Accessori supplementari: non utilizzate mai accessori supplementari che non siano consi­gliati dal produttore, potendo essere ciò causa di incidenti.

• Per proteggere l’apparecchio in caso di temporali o nel caso questo non venisse utilizzato
per diverso tempo si consiglia di staccarne la spina di corrente. In questo modo si evitano
danni all’apparecchio dovuti a colpi di fulmine o ad improvvisi aumenti di tensione nel
circuito di corrente alternata.

Illustrazione 1 Illustrazione 2

¡INDICACIONES DE SEGURIDAD IMPORTANTES!

¡LÉANSE ANTES DE UTILIZAR EL APARATO Y GUARDENSE PARA
SU USO POSTERIOR!

• El aparato ha sido producido por Hughes & Kettner según el IEC 65 y salió de la fábrica
en un estado técnicamente perfecto. Para conservar este estado y asegurar un funcionamien­to sin peligros el usuario debe tener en cuenta las indicaciones y advertencias contenidas en
las instrucciones de manejo. El aparato corresponde a la clase de protección l (toma de tier­ra protegida).

• LA SEGURIDAD, LA FIABILIDAD Y EL RENDIMIENTO DEL APARATO SOLO ESTAN
GARANTIZADOS POR HUGHES & KETTNER CUANDO:

• el montaje, la ampliación, el reajuste, los cambios o las reparaciones se realicen por
Hughes & Kettner o por personas autorizadas para ello;

• la instalación eléctrica del recinto en cuestión corresponda a los requisitos de la determi­nación del IEC (ANSI);

• el aparato se use de acuerdo con las indicaciones de uso.

ADVERTENCIA:

• Si se destapan protecciones o se retiran piezas de la carcasa, exceptuando si se puede
hacer manualmente, se pueden dejar piezas al descubierto que sean conductoras de tensión.

• Si es necesario abrir el aparato, éste tiene que estar aislado de todas las fuentes de ali­mentación. Esto se debe tener en cuenta antes del ajuste, de un entretenimiento, de una
reparación y de una sustitución de las piezas.

• Un ajuste, un entretenimiento o una reparación en el aparato abierto y bajo tensión sólo
puede ser llevado a cabo por un especialista autorizado por el productor (según VBG 4) que
conozca a fondo los peligros que ello conlleva.

• Las salidas de altavoces que estén provistas de la característica IEC 417/5036 (figura 1,
véase abajo) pueden conducir tensiones peligrosas al contacto. Por ello es indispensable que
antes de poner en marcha el aparato; la conexión se haya realizado únicamente con el
cable de empalmes recomendado por el productor.

• Las clavijas de contacto al final de los cables conectores tienen que estar atornilladas o
enclavadas a la carcasa, en tanto que sea posible.

• Los fusibles de repuesto que se utilicen sólo pueden ser del tipo indicado y tener la inten­sidad nominal indicada.

• El uso de fusibles reparados o la puesta en cortocircuito del soporte es inadmisible.

• El empalme del conductor de protección no se puede interrumpir en ningún caso.

• Las superficies provistas de la característica "HOT" (figura 2, véase abajo), los paneles de
fondo trasero o las protecciones con ranuras de ventilación, los cuerpos de ventilación y sus
protecciones, así como las válvulas electrónicas y sus protecciones pueden alcanzar tempe­raturas muy altas durante el funcionamiento y por ello no se deberían tocar.

• Niveles elevados de la intensidad de sonido pueden causar continuos daños auditivos; por
ello debe evitar acercarse demasiado a altavoces que funcionen a altos niveles. En tales
casos utilice protecciones auditivas.

ACOMETIDA A LA RED:

• El aparato está proyectado para un funcionamiento continuo.

• La tensión de funcionamiento ajustada tiene que coincidir con la tensión de la red del
lugar.

• Advertencia: el interruptor de la red del aparato tiene que estar en la posición 0 cuando se
conecte el cable de red.

• La conexión a la red eléctrica se efectuará con la fuente de alimentación o con el cable de
red que se entreguen con el aparato.

• Fuente de alimentación: una linea de conexión dañada no se puede sustituir. La fuente de
alimentación no puede volver a ponerse en funcionamiento.

• Evite una conexión de la red eléctrica a distribuidores con muchas tomas de corriente.

• El enchufe para el suministro de corriente tiene que estar cerca del aparato y ser de fácil
acceso.

SITUACION:

• El aparato debería estar situado en una superficie limpia y totalmente horizontal.

• El aparato no puede estar expuesto a ningún tipo de sacudidas durante su funcionamiento.

• Se deben evitar la humedad y el polvo.

• El aparato no puede ponerse en funcionamiento cerca del agua, la bañera, el lavamanos,
la pila de la cocina, un recinto con tuberías de agua, la piscina o en habitaciones húmedas.
Tampoco se pueden poner objetos llenos de líquido - jarrones, vasos, botellas, etc. - encima
de él.

• Procure que el aparato tenga suficiente ventilación.

• Las aberturas de ventilación existentes no se deben bloquear ni tapar nunca. El aparato
debe estar situado como mínimo a 20 cm de la pared. El aparato sólo se puede montar en
un rack, si se ha procurado la suficiente ventilación y se han cumplido las indicaciones de
montaje del productor.

• Evite los rayos del sol directos así como la proximidad a radiadores, electro-radiadores o
aparatos similares.

• Si el aparato pasa repentinamente de un lugar frío a otro caliente, se puede condensar
humedad en su interior. Esto se debe tener en cuenta sobretodo en los aparatos con válvulas
electrónicas. Antes de poner en marcha el aparato se debe esperar hasta que éste haya
adquirido la temperatura ambiental.

• Accesorios: el aparato no se puede colocar encima de carros, estantes, trípodes, soportes o
mesas inestables. Si el aparato se cae puede causar daños personales y se puede estropear.
Coloque el aparato sólo en un carro, rack, estante, trípode o soporte recomendado por el
productor o que se le haya vendido junto con el aparato. En la instalación se deben seguir
las indicaciones del productor así como utilizar los accesorios recomendados por el mismo
para colocarlo encima. El conjunto del aparato con el pedestal se debe mover con mucho
cuidado. Un paro brusco, la aplicación de una fuerza desmesurada o un suelo irregular
puede ocasionar la caida de todo el conjunto.

• Piezas adicionales: no utilice nunca piezas adicionales que no estén recomendadas por el
productor, ya que se podrían provocar accidentes.

• Para protejer el aparato de una tormenta o si no se supervisa ni utiliza durante algún tiem­po, se debería desconectar la clavija de la red. Así se evitan daños en el aparato a causa de
un rayo y golpes de tensión en la red de corriente alterna.

Figura 1 Figura 2

5

ATTAX-MANUAL

ENGLISH

Congratulations and thank you for choosing
the Hughes & Kettner ATTAX 80 amp!

A team of guitarists and technicians developed the
ATTAX amps with a single purpose in mind: To provide
you with sophisticated guitar sounds and practical
features in an easy-to-handle package.

The ATTAX 80 is the ideal workhorse for discerning
players who want happening tone in a compact gig
amp. The ATTAX 80's high-performance Current
Feedback power amp not only delivers 100 watts of
punch, but also the sought-after tone of a classic tube
amp.
The ATTAX 80 has the sound, versatility and features to
deliver the goods at professional gigs.

Its logical control layout gives you immediate access to
the ATTAX 80's world of sound. This manual introduces
you to its features and many application options.

We wish you a lot of fun and success with
your new ATTAX 80!

TABLE OF CONTENTS
BEFORE POWERING UP 5

1.0 CHANNELS 6

2.0 JACKS AND CONTROL FEATURES 7

3.0 STANDARD SETUP/CABLE CONNECTIONS 8

4.0 OPERATING THE ATTAX 80

4.1 SELECTING CHANNELS

4.2 THE ATTAX 80 AND SIGNAL PROCESSORS

4.3 RECORDING OUTPUT

5.0 SERVICE AND PREVENTIVE MAINTENANCE 9

6.0 TROUBLESHOOTING

7.0 TECHNICAL SPECIFICATIONS 10

BEFORE POWERING UP...

- Check that the local current and the amp's AC power
rating are identical before you plug the power cord into an
AC outlet.

- Ensure air can circulate around your amp's ventilation
ducts.

- Make sure you place the amp on a stable platform where
it is not exposed to mechanical shocks and temperature
extremes which may damage the amp or endanger the
safety of bystanders.

- Hughes & Kettner is not liable for damages due to
improper use.

ATTAX 80

100-WATT GUITAR AMPLIFIER

6

ATTAX-MANUAL

1.0 CHANNELS

The ATTAX 80 features a newly developed preamp
that not only produces authentic harmonic overdrive
but also a truly dynamic response to your picking
style. Based on semiconductors, this innovative
circuitry simulates the sound-shaping elements of tube
amps and delivers sound quality unparalleled in this
price range. It also provides the dynamics demanding
guitarists require for musical expression.

CLEAN:

Depending on the preamp control settings, the
ATTAX 80 delivers a variety of contemporary and
vintage clean tones. At higher VOLUME settings, the
"SoftClick" circuitry delivers that slight edge you would
expect from a vintage tube amp. If desired, the CLEAN
channel will put out plenty of crunch.

LEAD 1 + 2:

This channel delivers direct, in-your-face classic rock
sounds with a very British feel. Switch to the LEAD 2
sound mode to get a completely different tonal
character - even more bottom end, compression and
sustain - in other words, the distinctive performance
characteristics of modified tube amps, ideal for
modern lead playing and heavy-duty power chord
riffing.

REVERB:

The ACCUTRONICS

®

3-spring reverb is renowned for
its excellent sound quality and warm tone. In the
signal chain, the ATTAX 80 reverb section is located
after the FX loop so you can use it for external effects
and still achieve a clean reverb sound. Additionally,
the reverb level automatically adjusts its own level
when you switch between channels, more for clean,
less for lead.

7

ATTAX-MANUAL

ENGLISH

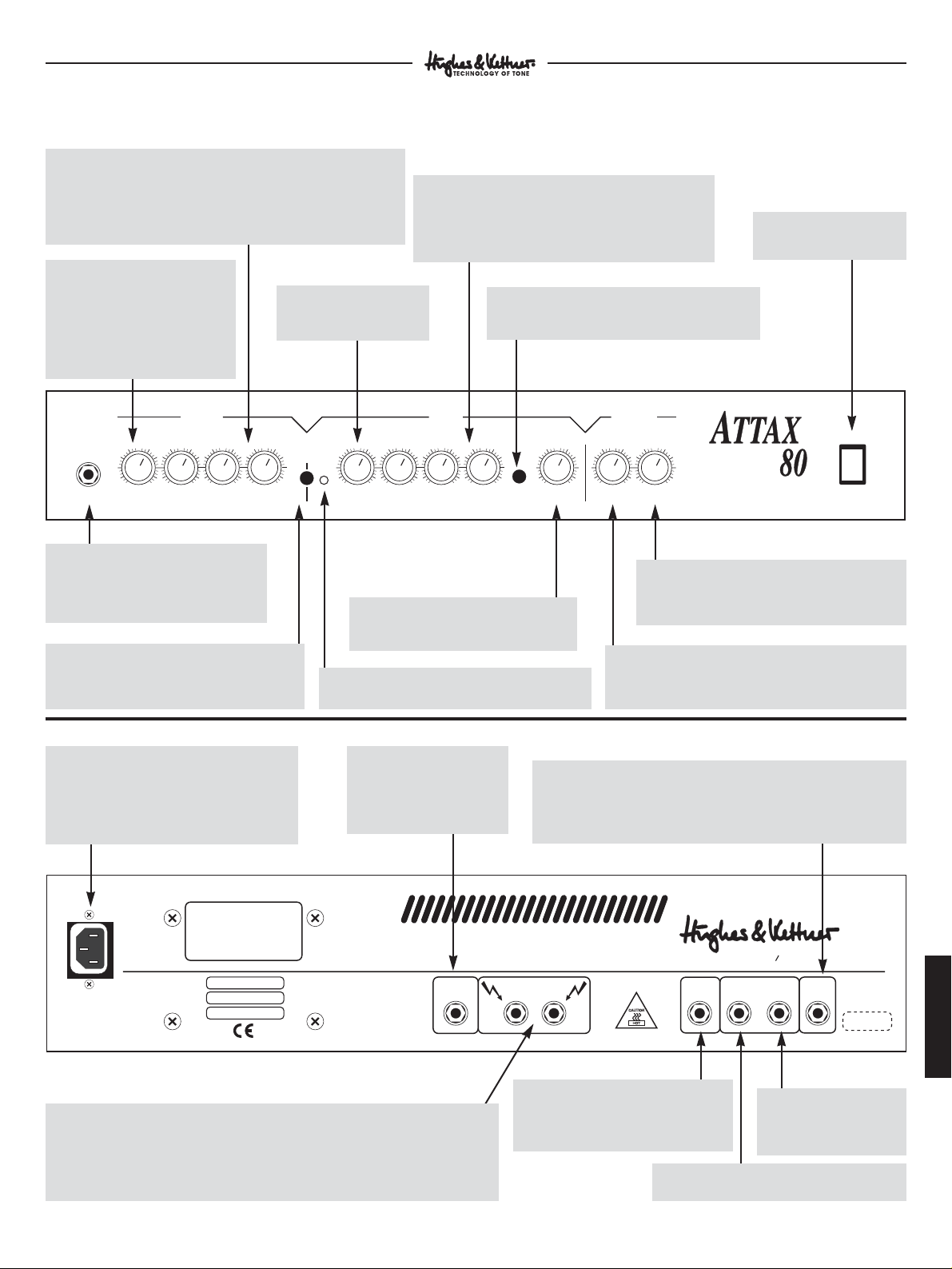

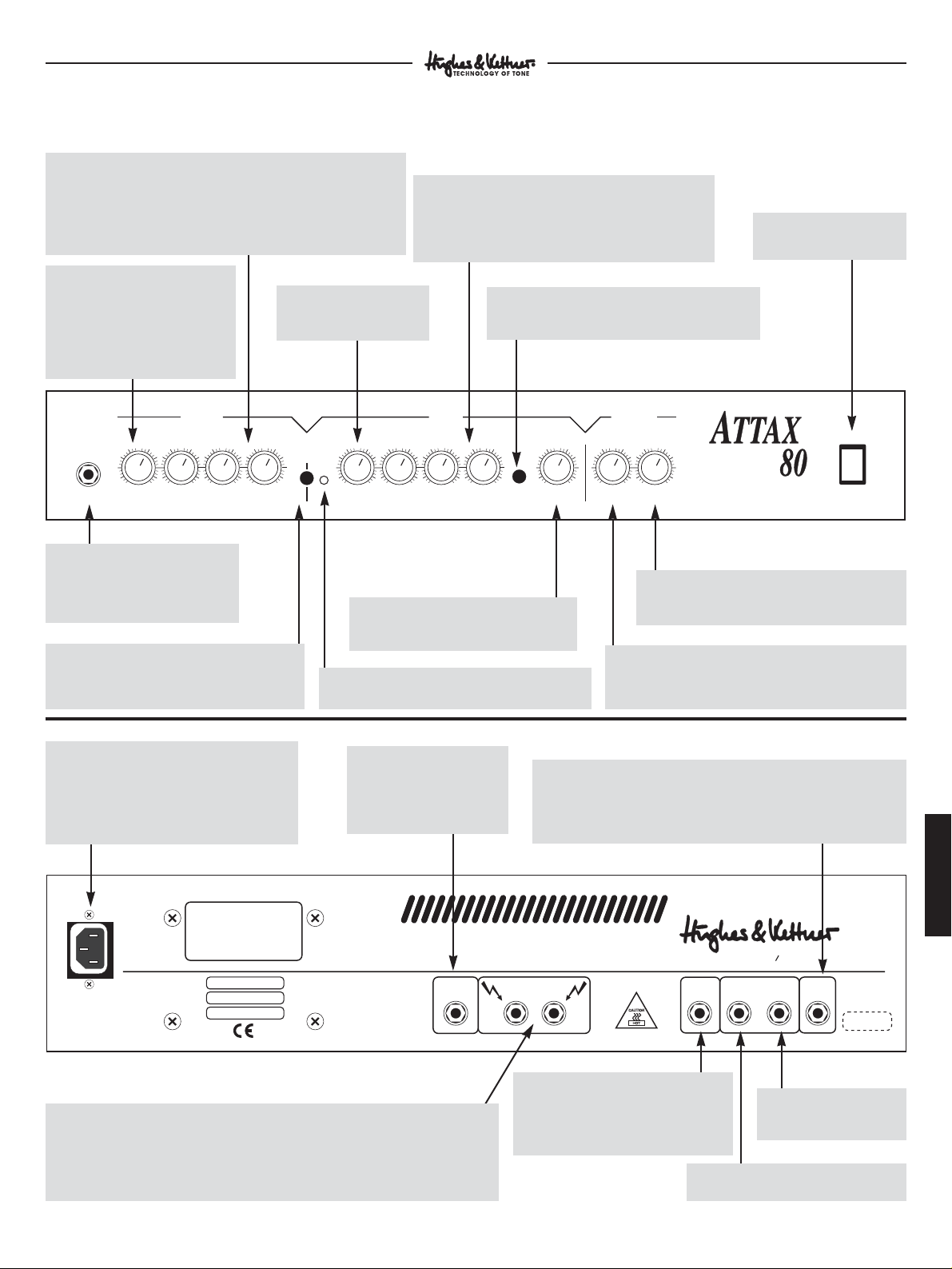

2.0 JACKS AND CONTROL FEATURES

MAINS

LEADCLEAN

MODE 2

INPUT

BASS

-50+5

0510

MASTER

CLEAN VOL

MID

-50+5

TREBLE

-50+5

0510

LEAD GAIN

BASS

-50+5

MID

-50+5

TREBLE

-50+5

0510

LEAD MASTER

0510

REVERB

0510

MASTER

CHANNEL

SELECT

Max. power

consumption

240 VA

OUTPUT 100 WATTS
MIN. IMP. 4 Ohms

CAUTION!

TO PREVENT THE RISK OF FIRE AND

SHOCK HAZARD DON´T EXPOSE THIS

APPLIANCE TO MOISTURE OR RAIN.

DO NOT OPEN CASE; NO USER
SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE

PERSONNEL.

LEAVE ENOUGH SPACE FOR PROPER VENTILATION!

FX-LOOP

SENDRETURN

REC
OUT

FOOT

SWITCH

MADE IN ST. WENDEL GERMANY

50 - 60 Hz

230 V~

117 V~

100 V~

HEAD

PHONES

Ser. No.

INPUT: The input jack sensitivity
is broad enough to handle
guitars equipped with hum­buckers, active pickups, or
single coils.

MAINS: Connect the included Euro-norm
mains cord to this socket. Ensure the amp's
voltage rating matches your local AC
voltage rating before you plug the cord into
the wall socket.

HEADPHONES: 1/4" head­phones jack. The speaker
is automatically switched
off when a plug is inserted
into this jack.

SPEAKERS: 1/4" jacks for external speakers. The two jacks are connected in par­allel. When using these outputs, ensure the overall combined impedance of the
connected speakers is not lower than 4 ohms! For the ATTAX 80 combo
version, you can connect one additional 60-watt cabinet in parallel to the
internal speaker. Make sure this cabinet has minimum rating of 8 ohms.

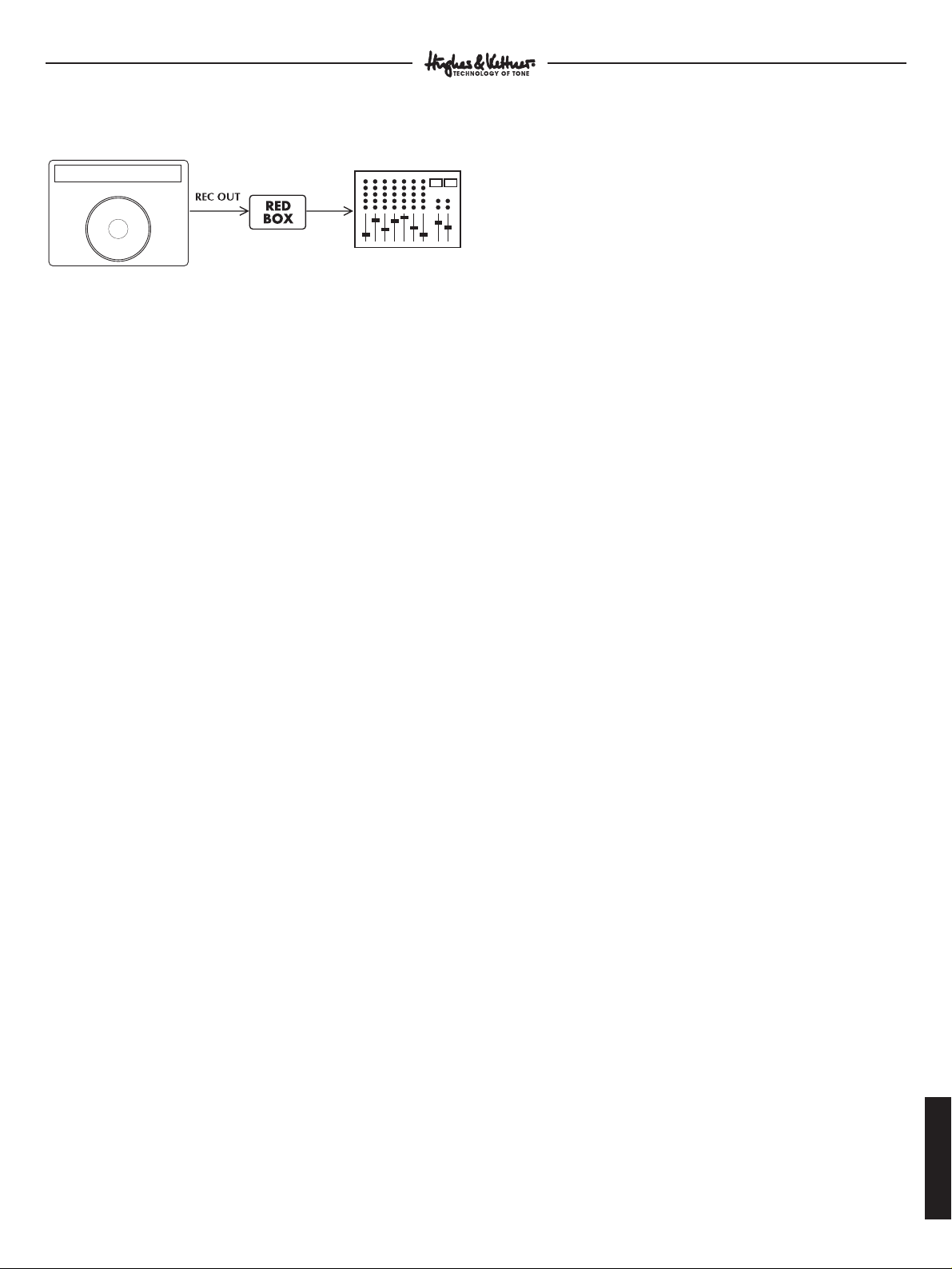

RECORDING OUT: Feeds a mixing
console, DI box or additional power
amp and speaker cabinet.

FOOTSWITCH: Jack for a standard footswitch (e.g. Hughes &
Kettner FS-1); allows you to switch back and forth between the
CLEAN and LEAD channels. When using a footswitch, ensure the
CHANNEL SELECT switch on the ATTAX 80's front panel is set to
CLEAN.

RETURN: Connect this jack to your
effects processor's OUTPUT jack.

SEND: Connect your
processor's INPUT to
this jack.

CHANNEL SELECT: This channel selector
switch activates either the CLEAN or LEAD
channel. The LEAD channel is active when
the button is pressed.

RED LEAD LED: The red LED illuminates when
the LEAD channel is active.

LEAD MASTER: Determines the LEAD
channel volume level in relation to the
CLEAN channel volume level.

REVERB: Controls how much integrated reverb is
added to the signal. Reverb is automatically
adjusted for each channel when you switch
channels.

MASTER: Controls the amp's master volume
level. The signal level of the RECORDING
OUT jack is unaffected by the MASTER
control.

MODE 2: Selects either the LEAD 1 or LEAD 2
modes. LEAD 2 is active when the button is
pressed.

LEAD GAIN: Controls the
amount of distortion in
the LEAD channel.

MAINS: AC power
switch.

LEAD EQ SECTION: Active BASS, passive MID and
TREBLE tone controls for the LEAD channel. Here
too, MID and TREBLE influence each other for the
widest possible range of subtle tonal variations.

CLEAN VOL: Determines
the CLEAN channel's volu­me. Depending on the type
of pickups in your instru­ment, the amp will begin to
clip somewhere around the
12 o'clock setting
(SoftClick).

CLEAN EQ SECTION: BASS, MID and TREBLE controls for
the CLEAN channel. MID and TREBLE controls influence
each other, as is standard in tube amps: if you boost the
treble, the mids are cut and vice versa. This sound-shaping
feature allows you to dial in a wide variety of subtle tonal
variations.

8

ATTAX-MANUAL

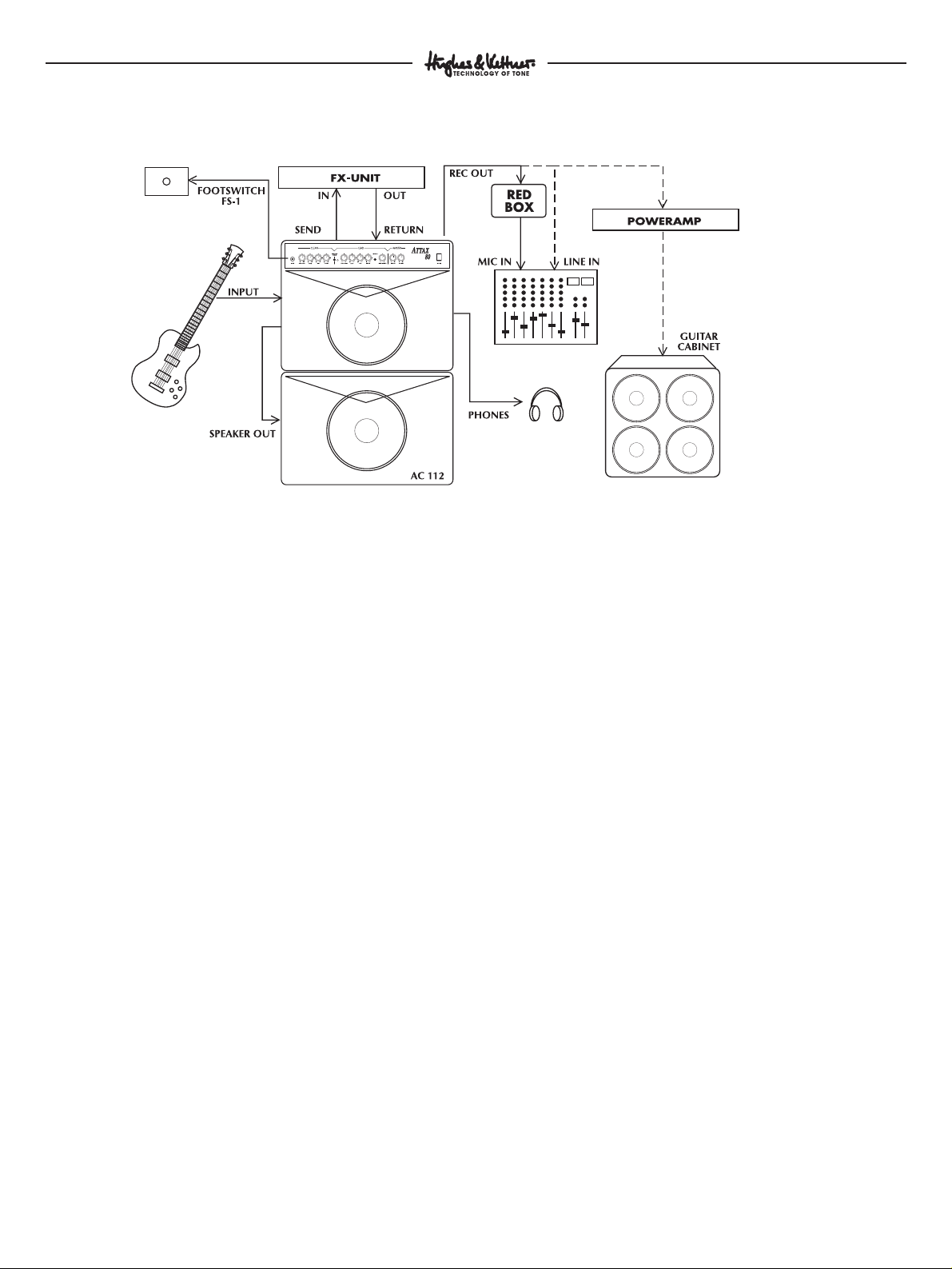

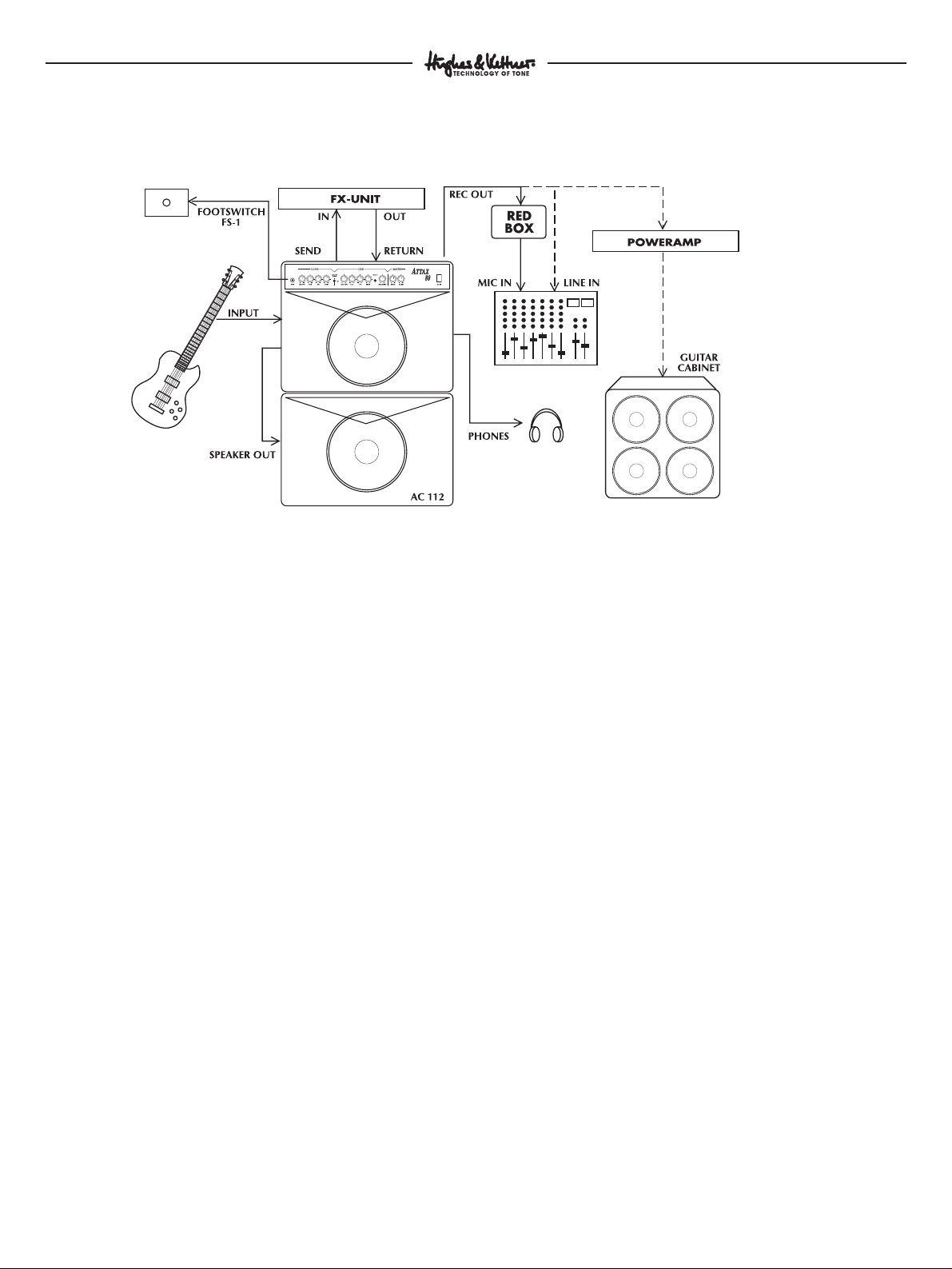

3.0 STANDARD SETUP/
CABLE CONNECTIONS

4.0 OPERATING THE ATTAX 80

4.1 SELECTING CHANNELS

Use the CHANNEL SELECT switch or an external footswitch
to change channels.

NOTE: Before using a footswitch, set the CHANNEL SELECT
switch on the front panel of the amp itself to the CLEAN
position.

Use the LEAD MODE switch to select either LEAD 1 or
LEAD 2 mode.

4.2 THE ATTAX 80 AND SIGNAL PROCESSORS

The effects loop on the ATTAX 80 is a serial effects loop; the
entire preamp signal is routed to the effects device and
processed there.

To connect a signal processor:

- Connect the processor's INPUT to the ATTAX SEND jack

and its OUTPUT to the ATTAX RETURN jack.

- To avoid noise, signal degradation, and intermittent

signals, only use high-quality patch cables.

- Make sure the processor is not distorting the signal. Check

the processor's gain LEDs (if it is equipped with this type of
display) and use the input and output controls to dial in a
suitable level.

- Distortion devices are not designed for use in an FX loop.
As a rule of thumb, any kind of device that compresses the
signal should be connected first in the signal chain.
Depending on the type of effect you want to achieve, you
may want to connect your compressor directly between the
instrument and the amp's input.

- If you are using several processors or stomp boxes, ensure
you connect them in the proper order.

4.3 RECORDING OUTPUT

The ATTAX 80 is equipped with a recording output.
This output features a filter, similar to the Hughes & Kettner
RED BOX, that enhances the quality of the recording signal
to such an extent that, for routine recording applications,
you don't need to deal with the hassle of miking a cabinet.

However, for absolutely top-notch professional recording
purposes, speaker simulation delivers an even more
authentic signal. If you want to feed the ATTAX 80's signal
to a mixing console in the studio or on stage, we
recommend you route it through a Hughes & Kettner RED
BOX. The RECORDING OUT signal path is designed so you
can simply patch it directly into a RED BOX, which
balances the signal and delivers sophisticated speaker
simulation.

9

ATTAX-MANUAL

ENGLISH

6.0 TROUBLESHOOTING

1) The ATTAX will not switch on:

- The amp is not getting any AC power. Check the mains
cable to see if it is connected properly.

- The mains fuse is defective. Replace the fuse with another
identical fuse. If this fuse also trips, consult your Hughes &
Kettner dealer.

2) The ATTAX is connected properly, but no sound is
audible.

- One or several GAIN and MASTER controls may be turned
all the way down. Dial in a higher setting.

- A short circuit in the speaker signal chain may have
tripped an internal fuse. Make sure none of the connections
are shorted out and have a qualified service technician
replace the fuse (identical specifications are a must).

3) The CLEAN channel will not activate via a footswitch:

- The front panel selector switch is in the LEAD position. Set
it to CLEAN (in this case, CLEAN = off).

- The footswitch is not connected to the ATTAX. Plug it into
the appropriate jack.

4) When accessed, the RECORDING OUT jack causes
annoying hum.

- An electrical or magnetic field is causing interference. Use
higher quality cables or re-arrange the cables you are using
to reduce interference to a minimum. If this still doesn't
improve the situation, use a DI box.

- The grounding of the connected devices may be causing a
ground loop. DO NOT SEVER THE GROUND OF THE
CONNECTED DEVICES UNDER ANY CIRCUMSTANCES!
Try plugging all devices into the same socket via an AC
power distributor/power strip. If this doesn't eliminate the
noise, you must ensure the connection is galvanically
separated by routing the signal through a DI box.

5) You have connected the RECORDING OUT jack to a
mixing console and the signal is totally distorted, even
when you have dialed in a clean sound.

- The RECORDING OUT signal may be overloading the
mixing console's input. Reduce the mixing console's input
sensitivity (GAIN). If this doesn't rectify the problem, patch
the signal to the mixing console's LINE input.

6) You have connected the RECORDING OUT jack to a
mixing console and the signal's volume level is way too
low.

- The amp's output level is limited by an incorrectly
adjusted FX processor's output level. Turn the FX processor's
level up.

- The mixing console's line input is not sensitive enough.
Turn up the gain. If this is still insufficient, use the micro­phone input (if necessary, use an adapter cable or DI box).

The following diagram illustrates how to connect the
devices:

TIP: Try mixing the RECORDING OUT signal with the
signal from the cabinet microphone. This is especially effec­tive when the stage volume is fairly low or you are playing
a quiet interlude. Generally, the sound will be better than if
you use just the microphone signal. Another advantage is
that the RECORDING OUT signal delivers a sufficient level
for the mixing console even at low volume levels.

5.0 SERVICE AND PREVENTIVE

MAINTENANCE

The ATTAX 80 does not require service of any type.
However, there are a few precautions you should heed to
ensure your amp lasts for many years.

- Ensure all peripheral devices, cords and cables are in a

state of good repair. Defective speaker cables are the most
common cause of power amp failure. Poor quality cables
will cause hum and undesirable noise.

- Make certain your amp's ventilation ducts are not blocked

or covered. Proper cooling will prolong the life of your
amp.

- Avoid mechanical shocks and exposure to extreme heat,

dust and especially moisture.

- When connecting peripheral devices, always pay close

attention to their specifications. Never connect devices with
high output signal levels (e.g. power amps) to your amp's
input.

- Ensure you have the correct AC power rating available

before you plug in the amp. If in doubt, ask the venue's
sound technician or the custodian of the building you are
rehearsing in.

- Refrain from do-it-yourself repairs! Have a qualified

service technician replace internal fuses.

Use a soft damp cloth to clean the exterior surface of the
ATTAX 80.

10

ATTAX-MANUAL

7) You have connected the RECORDING OUT jack to a

mixing console, but you find it doesn't deliver the sound
you had in mind.
The RECORDING OUT circuit is dual-purpose. It is also
designed to allow you to feed its signal to an additional
power amp and cabinet. For absolutely top-notch professio­nal recording purposes, route the signal through a Hughes &
Kettner REDBOX before patching it to a mixing console.

7.0 TECHNICAL DATA

PREAMP SECTION: CLEAN + LEAD solid state channels

INPUT: -10 dBV/ 1M ohms
FX-RETURN: -10dBV/ 47 k ohms
FX-SEND: 0 dBV/ 2.2 k ohms
REC.OUT: 0 dBV/ 800 ohms

POWERAMP SECTION:
'CURRENT FEEDBACK' solid state power amp

Output Power: 80 W rms into 8 ohms

100 W rms into 4 ohms

PHONES: 0,5 W, 600 ohms

Frequency response: 20 Hz - 40 kHz (into 4 ohms)

Speakers:
CELESTION RockDriver Vintage, 12“, 8 ohms

GENERAL FEATURES:

Voltage:
230 V~ (European model)
117 V~ (North American model)
100 V~ (Japanese model)

Max. power consumption:
200 VA (into 4 ohms)

Mains Fuse:
slo-blo 1000 mA (230 V model)
slo-blo 2000 mA (117 V model)
slo-blo 2500 mA (100 V model)

Secondary Fuses:
2 x slo-blo 2500 mA (power amp)

Dimensions:
556 x 480 x 280 mm (W x H x D)
22“ x 19“ x 11“ (approx.)

Weight: approx. 38 Lbs./ 17 kg

11

ATTAX-MANUAL

DEUTSCH

Wir freuen uns, daß Du Dich für einen
HUGHES & KETTNER ATTAX 80 Amp ent­schieden hast!

Ein Team aus Gitarristen und Technikern hat die ATTAX
Amps mit dem Ziel entwickelt, anspruchsvolle
Gitarrensounds mit einfachster Bedienung und praxisge­rechter Ausstattung zu kombinieren.

Der ATTAX 80 ist dabei das ideale Arbeitsgerät für
anspruchsvolle Gitarristen, die amtliche Grundsounds in
einem kompakten “Live- Amp” fordern. Seine leistungs­starke Current Feedback Endstufe sorgt nicht nur für 100
Watt ”Druck”, sondern auch für standesgemäßen, offe­nen ”Röhrencharakter”. Damit überzeugt der ATTAX 80
auch bei professionellen Livegigs durch Sound,
Flexibilität und Ausstattung.

Das übersichtliche und komfortable Bedienkonzept
macht es einfach, direkt in die Soundwelt des ATTAX 80
einzusteigen - diese Bedienungsanleitung wird Dir darü­ber hinaus interessante Aspekte über die Möglichkeiten
und Features Deines ATTAX 80 vermitteln.

Viel Erfolg und Spaß am “tone” mit Deinem
ATTAX 80!

INHALT
VOR DER INBETRIEBNAHME 11

1.0 DIE KANÄLE DES ATTAX 80 12

2.0 ANSCHLÜSSE UND BEDIENELEMENTE 13

3.0 STANDARD SET UP/VERKABELUNG 14

4.0 BEDIENUNG DES ATTAX 80

4.1 DAS ANWÄHLEN DER KANÄLE

4.2 DER ATTAX 80 MIT EFFEKTGERÄTEN

4.3 DER RECORDING OUTPUT DES ATTAX 80

5.0 WARTUNG UND SERVICE 15

6.0 FEHLERBESEITIGUNG

7.0 TECHNISCHE DATEN 16

VOR DER INBETRIEBNAHME

- Vergewissere Dich vor dem Anschluß des ATTAX 80, daß
der nahe der Netzbuchse angegebene Spannungswert mit
der vorhandenen Netzspannung übereinstimmt.

- Stelle eine ausreichende Luftzufuhr durch die Kühlschlitze
des Gerätes sicher.

- Achte auf einen festen Stellplatz, der mechanische und
thermische Fremdeinwirkungen, welche die
Betriebssicherheit des Gerätes oder die Sicherheit von
Personen beeinträchtigen könnten, ausschließt.

- Für Schäden am Gerät, die durch unsachgemäßen Betrieb
entstehen wird seitens des Herstellers keine Haftung über­nommen.

ATTAX 80

100-WATT GUITAR AMPLIFIER
