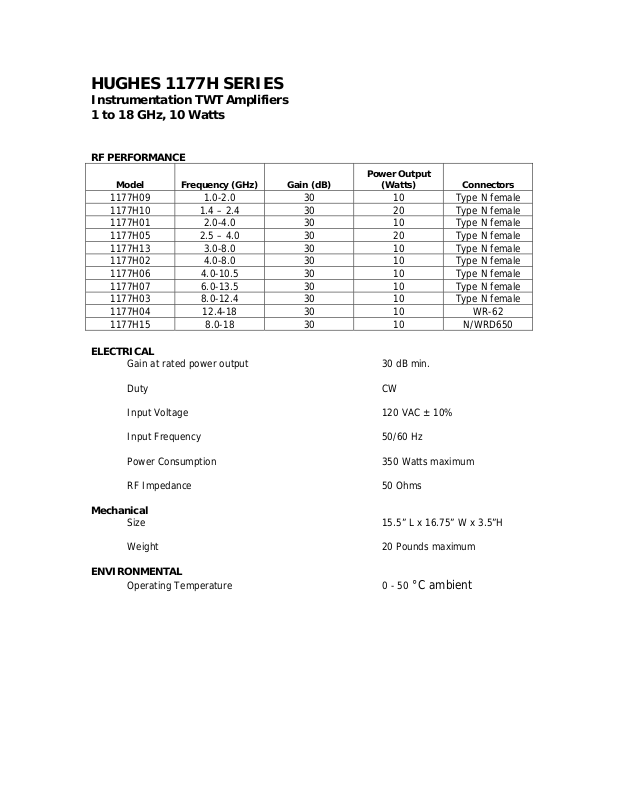

HUGHES 1177H SERIES
Instrumentation TWT Amplifiers
1 to 18 GHz, 10 Watts
RF PERFORMANCE
Power Output
Model Frequency (GHz) Gain (dB)
1177H09 1.0-2.0 30 10 Type N female
1177H10 1.4 – 2.4 30 20 Type N female
1177H01 2.0-4.0 30 10 Type N female
1177H05 2.5 – 4.0 30 20 Type N female
1177H13 3.0-8.0 30 10 Type N female
1177H02 4.0-8.0 30 10 Type N female
1177H06 4.0-10.5 30 10 Type N female
1177H07 6.0-13.5 30 10 Type N female
1177H03 8.0-12.4 30 10 Type N female
1177H04 12.4-18 30 10 WR-62
1177H15 8.0-18 30 10 N/WRD650
(Watts)
ELECTRICAL
Gain at rated power output 30 dB min.
Duty CW
Input Voltage 120 VAC ± 10%
Input Frequency 50/60 Hz
Power Consumption 350 Watts maximum
RF Impedance 50 Ohms
Mechanical
Size 15.5” L x 16.75” W x 3.5”H
Weight 20 Pounds maximum
ENVIRONMENTAL
Operating Temperature 0 - 50
°C ambient
Connectors
