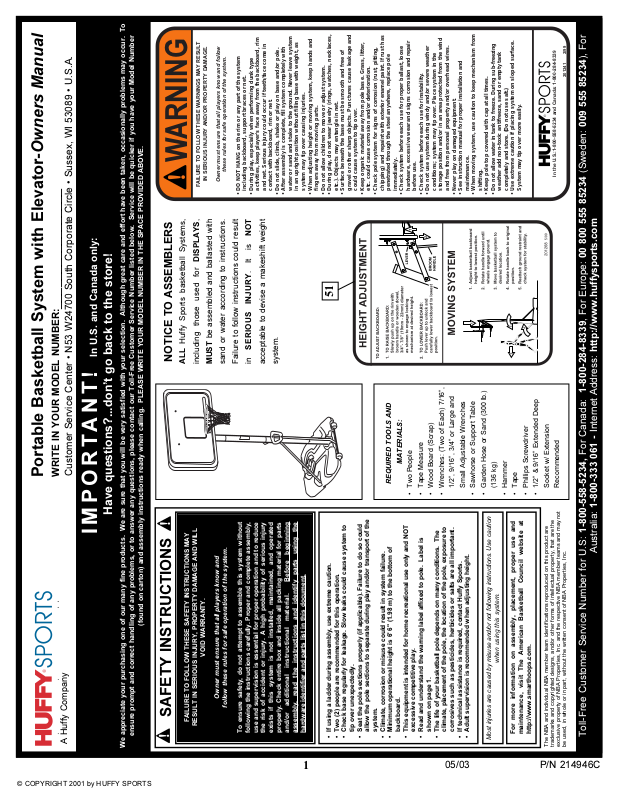

Huffy 214946C User Manual

05/03 P/N 214946C

WARNING

Toll-Free Customer Service Number for U.S: 1-800-558-5234, For Canada: 1-800-284-8339, For Europe: 00 800 555 85234 (Sweden: 009 555 85234), For

Australia: 1-800-333 061 - Internet Address: http://www.huffysports.com

Most injuries are caused by misuse and/or not following instructions. Use caution

when using this system.

• If using a ladder during assembly, use extreme caution.

• Two (2) people are recommended for this operation.

• Check base regularly for leakage. Slow leaks could cause system to

tip over unexpectedly.

• Seat the pole sections properly (if applicable). Failure to do so could

allow the pole sections to separate during play and/or transport of the

system.

• Climate, corrosion or misuse could result in system failure.

• Minimum operational height is 6' 6" (1.98 m) to the bottom of

backboard.

• This equipment is intended for home recreational use only and NOT

excessive competitive play.

• Read and understand the warning label affixed to pole. Label is

shown on page 1.

• The life of your basketball pole depends on many conditions. The

climate, placement of the pole, the location of the pole, exposure to

corrosives such as pesticides, herbicides or salts are all important.

• If technical assistance is required, contact Huffy Sports.

• Adult supervision is recommended when adjusting height.

FAILURE TO FOLLOW THESE SAFETY INSTRUCTIONS MAY

RESULT IN SERIOUS INJURY, PROPERTY DAMAGE AND WILL

VOID WARRANTY.

Owner must ensure that all players know and

follow these rules for safe operation of the system.

To ensure safety, do not attempt to assemble this system without

following the instructions carefully. Proper and complete assembly,

use and supervision is essential for proper operation and to reduce

the risk of accident or injury. A high probability of serious injury

exists if this system is not installed, maintained, and operated

properly. Check entire box and inside all packing material for parts

and/or additional instructional material. Before beginning

assembly, read the instructions and identify parts using the

hardware identifier and parts list in this document.

For more information on assembly, placement, proper use and

maintenance, visit The American Basketball Council website at

http://www.smarthoops.com.

SAFETY INSTRUCTIONS

REQUIRED TOOLS AND

MATERIALS:

• Two People

• Tape Measure

• Wood Board (Scrap)

• Wrenches: (Two of Each) 7/16”,

1/2”, 9/16”, 3/4” or Large and

Small Adjustable Wrenches

• Sawhorse or Support Table

• Garden Hose or Sand (300 lb.)

(136 kg)

• Hammer

• Tape

• Phillips Screwdriver

• 1/2” & 9/16” Extended Deep

Socket w/ Extension

Recommended

WRITE IN YOUR MODEL NUMBER:_________________

Customer Service Center • N53 W24700 South Corporate Circle • Sussex, WI 53089 • U.S.A.

A Huffy Company

Portable Basketball System with Elevator-Owners Manual

IMPORTANT!

In U.S. and Canada only:

Have questions?...don’t go back to the store!

We appreciate your purchasing one of our many fine products. We are sure that you will be very satisfied with your selection. Although great care and effort have been taken, occasionally problems may occur. To

ensure prompt and correct handling of any problems, or to answer any questions, please contact our Toll-Free Customer Service Number listed below. Service will be quicker if you have your Model Number

(found on carton) and assembly instructions ready when calling. PLEASE WRITE YOUR MODEL NUMBER IN THE SPACE PROVIDED ABOVE.

NOTICE TO ASSEMBLERS

ALL Huffy Sports basketball Systems,

including those used for DISPLAYS,

MUST be assembled and ballasted with

sand or water according to instructions.

Failure to follow instructions could result

in SERIOUS INJURY. It is NOT

acceptable to devise a makeshift weight

system.

The NBA and individual NBA member team identifications reproduced on this product are

trademarks and copyrighted designs, and/or other forms of intellectual property, that are the

exclusive property of NBA Properties, Inc. and the respective NBA member teams and may not

be used, in whole or in part, without the written consent of NBA Properties, Inc.

IN SERIOUS INJURY AND/OR PROPERTY DAMAGE.

FAILURE TO FOLLOW THESE WARNINGS MAY RESULT

these rules for safe operation of the system.

Owner must ensure that all players know and follow

including backboard, support braces or net.

• DO NOT HANG on the rim or any part of the system

• During play, especially when performing dunk type

activities, keep player's face away from the backboard, rim

and net. Serious injury could occur if teeth/face come in

contact with backboard, rim or net.

water or sand and stake to the ground. Never leave system

• Do not slide, climb, shake or play on base and/or pole.

• After assembly is complete, fill system completely with

in an upright position without filling base with weight, as

system may tip over causing injuries.

fingers away from moving parts.

• When adjusting height or moving system, keep hands and

• Do not allow children to move or adjust system.

etc.). Objects may entangle in net.

gravel or other sharp objects. Punctures cause leakage and

could cause system to tip over.

• During play, do not wear jewelry (rings, watches, necklaces,

• Surface beneath the base must be smooth and free of

• Keep organic material away from pole base. Grass, litter,

etc. could cause corrosion and/or deterioration.

chipping) and repaint with exterior enamel paint. If rust has

penetrated through the steel anywhere, replace pole

immediately.

• Check pole system for signs of corrosion (rust, pitting,

hardware, excessive wear and signs corrosion and repair

• Check system before each use for proper ballast, loose

before use.•Check system before each use for instability.

conditions; system may tip over. Place system in the

• Do not use system during windy and/or severe weather

storage position and/or in an area protected from the wind

and free from personal property and/or overhead wires.

• Never play on damaged equipment.

• See instruction manual for proper installation and

maintenance.

shifting.

• When moving system, use caution to keep mechanism from

• Keep pole top covered with cap at all times.

weather add non-toxic antifreeze, sand or empty tank

completely and store. (Do not use salt.)

System may tip over more easily.

• Do not allow water in tank to freeze. During sub-freezing

• Use extreme caution if placing system on sloped surface.

201241 2/99

In the U.S.:1-800-558-5234 and Canada: 1-800-284-8339

P/N 214946C 05/03

BEFORE YOU START!

To ensure optimal playability of backboard system, a close tolerance fit between the elevator

components and hardware is required. Test fit large bolts into large holes of elevator tubes,

backboard brackets and triangle plates. Carefully rock them in a circular motion to ream out

any excess paint from holes if necessary.

AVANT DE COMMENCER !

Pour garantir l'utilisation optimale du panneau, les composants du système élévateur et la visserie doivent être bien

ajustés (serrés). À titre d'essai, insérez les gros boulons dans les gros trous des tubes du système élévateur, des supports

du panneau et des plaques triangulaires. Basculez-les avec précaution en imprimant un mouvement circulaire pour

éliminer l'excédent de peinture, si nécessaire.

¡ANTES DE COMENZAR!

Para asegurar el óptimo rendimiento del sistema del respaldo en el juego, se requiere un ajuste de tolerancia estrecha

entre los componentes del elevador y el herraje. Pruebe el ajuste de los pernos grandes en los orificios grandes de los

tubos elevadores, soportes del respaldo y placas triangulares. Cuidadosamente muévalos en círculos para eliminar

cualquier exceso de pintura, si es necesario.

VORBEREITENDE MASSNAHMEN

Um sicherzustellen, dass das Korbwandsystem optimal für den Spielbetrieb geeignet ist, müssen die Komponenten der

Verlängerungsvorrichtung und die verschiedenen Befestigungsteile fest miteinander verschraubt werden. Große Schrauben

zur Probe in die großen Löcher der Verlängerungsrohre, Korbwandklammern und Dreiecksplatte stecken und diese

vorsichtig in einer Kreisbewegung hin- und herbewegen, um eventuelle Farbrückstände aus den Bohrungen zu entfernen.

05/03 P/N 214946C

* You may have extra parts with this model.

HARDWARE IDENTIFIER (BOLTS & SCREWS)

HARDWARE IDENTIFIER (NUTS & WASHERS)

Item #8 (1)

Item #16 (2)

Item #21 (2)

Item #18 (2)

Item #33 (1)

Item #45 (4)

Item #41 (1)

Item #29 (2)

Item #12 (1)

Item #26 (1)

Item #35 (5)

Item #30 (2)

Item #42 (1)

Item 47 (5)*

Item #17 (14)

Item #14 (2)

Item #10 (3)*

Item #34 (3)

Item #53 (2)

Item #13 (12)*

P/N 214946C 05/03

HARDWARE IDENTIFIER (STEEL SPACERS & RODS)

HARDWARE IDENTIFIER (PLASTIC SPACERS, CAPS & CLIPS)

Item #36 (1)

Item #39 (2)

Item #44 (4)

Item #55 (4)

Item #48 (1)

HARDWARE IDENTIFIER (OTHER)

Item #7 (1)

Item #31 (12)

05/03 P/N 214946C

Item Qty. Part No. Description

1 1 206615 Tank, (Black) 2 1 200628 Wheel Axle, 11-3/4 Long 3 4 226401 Wheel, 4 “ (Black) 4 1 900007 Top Pole Section 5 1 908480 Middle Pole Section 6 1 900240 Bottom Pole Section 7 1 202820 Rod, 3/8 O.D. x 4-3/4 Long 8 1 206934 Eyebolt, 3/8-16 x 2 1/2 Long 9 1 206949 Pivot Bracket, Upper 10 3* 203063 Nylon Insert Lock Nut, 3/8-16 11 2 906206 Strut, 1” O.D. x 31-1/4 Long 12 1 201625 Bolt,Yellow Dichromate, 5/16-18 X 3.60" Long 13 12* 203218 Washer, Flat, 3/8 I.D. 14 2 203220 Nylon Insert Lock Nut, 5/16-18 15 1 201568 Anchor, T-Strap 16 2 203798 Bolt, Hex Flange, 5/16-18 x 1-1/2 Long 17 14 203100 Nut, Hex Flange, 5/16-18 18 2 203103 Carriage Bolt, 5/16-18 x 2 Long 19 1 900223 Wheel Bracket 20 1 206948 Pivot Bracket, Lower 21 2 206252 Bolt, Hex Head, 3/8-16 x 1 Long 22 1 206956 Disc, 5" O.D. x 13/32 I.D., Plastic 23 1 906606 Handle Bar 24 1 206940 Axle, 21" Long 25 2 206938 Push Cap 26 1 203330 Bolt, Hex Head, 3/8-16 x 4-1/2 Long 27 1 206604 Handle, Front, Plastic 28 1 206605 Handle, Back, Plastic 29 2 203038 Bolt, Carriage, 5/16-18 x 2-3/4 Long 30 2 203217 Carriage Bolt, 5/16-18 x 1-1/2 Long

Item

Qty. Part No. Description

31 12 201219 Smart Clip, Net Holder 32 1 Rim 33 1 206360 Bolt, Hex Head, 3/8-16 x 2.625 Long 34 3 201124 Nut, 3/8-16 35 5 206304 Bolt 1/2-13 x 6-5/16 Long 36 1 200516 Vinyl Bolt Cover, 5/16 37 1 202814 Cap, Pole Top 38 2 900846 Board Bracket, (Black) 39 2 201129 Spacer, 1-3/4 Long 40 1 201160 Pawl Lever 41 1 240017 Bolt, Hex Head, 1/4-20 x 2-1/4 Long 42 1 203493 Lock Nut, Hex Head 1/4-20 43 4 804808 Elevator Tube, (Black) 44 4 206311 Spacer, Plastic 45 4 204804 Screw, Phillips Head, 3/4 Long 46 1 201159 Ratchet 47 5* 206340 Lock Nut, Hex Head, 1/2-13 48 1 206305 Clevis Pin 1/4 x 2-9/32 Long 49 1 203124 Stake, Tie Down 50 2 203617 Plug Cap 51 1 201268 Label, Height Adjustment and Moving 52 1 Net 53 2 206303 Washer, 1/4 x 9/32 I.D. 54 1 200627 Wheel Carriage 55 4 201651 Spacer, Plastic, Wheel Axle 56 1 201125 Return Ratchet Spring

WARRANTY CARD:

Please remember to complete your product registration form either on-line at:

www.huffysports.com/warrantycard or mail-in the enclosed postcard.

WARNING: IF YOUR SYSTEM IS EQUIPPED WITH AN ACRYLIC BACKBOARD,

EXAMINE BACKBOARD FOR ANY DAMAGE THAT MAY HAVE OCCURRED DURING SHIPMENT. CRACKS IN THE BACKBOARD COULD RESULT IN SUDDEN BREAKAGE. IF BACKBOARD IS DAMAGED IN ANY WAY PRIOR TO OR AFTER ASSEMBLY, CALL TOLL-FREE NUMBER FOR FREE REPLACEMENT: U.S. 1-800-558-5234; CANADA: 1-800-284-8339; http://www.huffysports.com

PARTS LIST - See Hardware Identifier

P/N 214946C 05/03

INSTRUCTIONS

IMPORTANT! WRITE MODEL NUMBER FROM BOX ONTO PAGE 1 OF

THIS OWNERS MANUAL

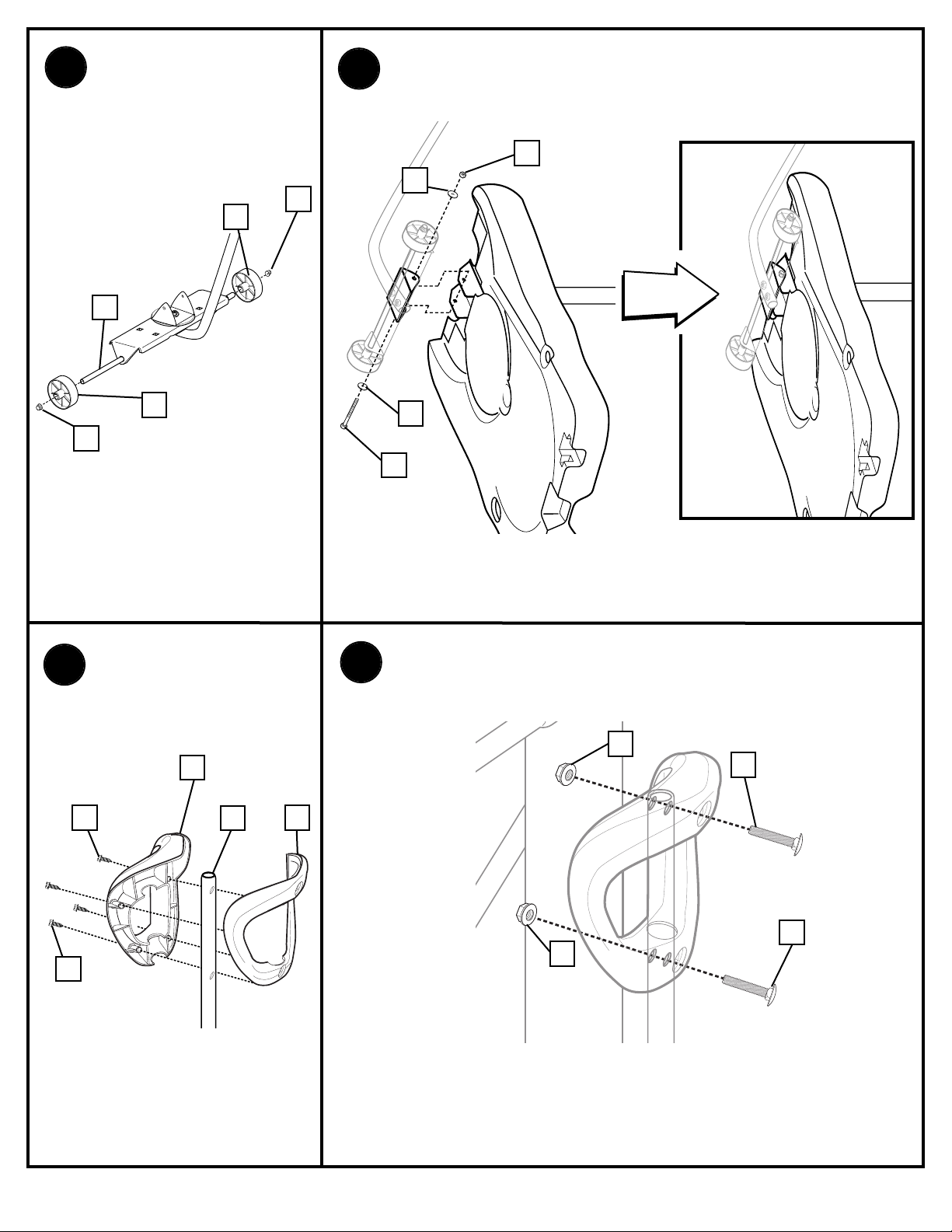

1. Remove all contents from underside of tank. Install wheel axle (2) through

wheel carriage (54) and install wheels (3) onto wheel axle (2) with spacers (55) as shown. Secure wheel bracket as shown, a deep socket is recommended.

IMPORTANT! DO NOT OVER TIGHTEN.

2. Correctly identify each pole section and mark indicated distance from ends

with tape as shown.

3. Align pole top and middle pole sections as shown using alignment mark

and hole.

IMPORTANT! Holes in top (4) and middle pole (5) sections MUST align to correctly position elevator system toward playing surface.

Bounce pole top (4) and middle section (5) together as shown until they no longer move toward taped reference mark. NOTE: Pole sections should have a 3-1/2" (9 cm) minimum overlap.

4. IMPORTANT! Holes in top (4) and bottom pole (6) sections MUST align to correctly position elevator system toward playing surface.

Add bottom pole section (6) to assembly as shown using alignment mark and hole, and bounce until completely tight. Once assembled, pole sections CAN NOT be separated! NOTE: Pole sections should have a 3-1/2" (9 cm) minimum overlap.

5. Install rod (7) through holes in bottom pole section (6) and eyebolt (8).

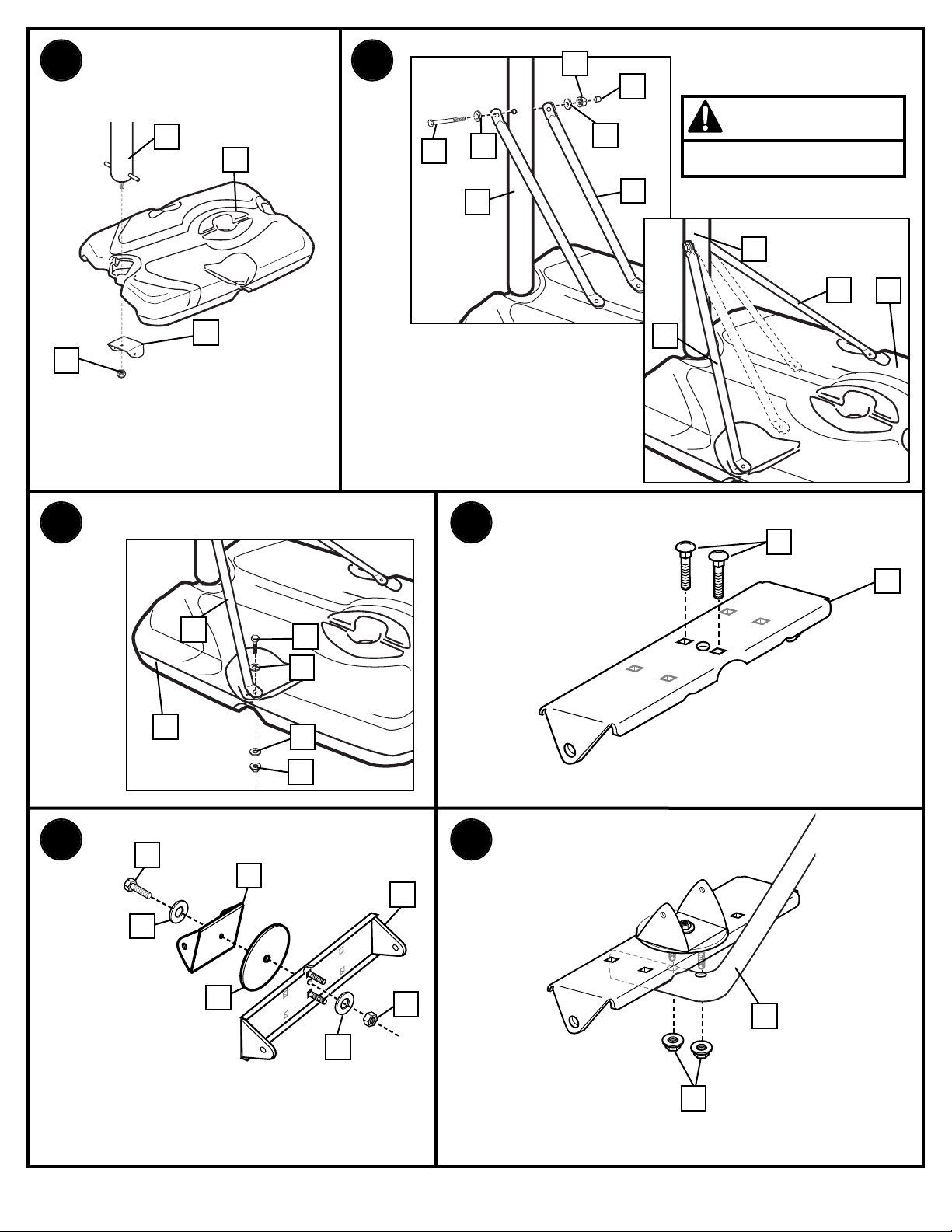

6. Insert pole assembly into tank assembly as shown. Secure pole assembly

with upper pivot bracket (9) and lock nut (10).

7. Secure base struts (11) to pole using bolt (12), washers (13), and nut (14), as shown. Place vinyl bolt cover (36) over exposed bolt threads. Rotate the non-secured ends of base struts (11) as shown.

8. Secure base struts (11) to base using bolt (16), washers (13), and nut (17).

9. Insert carriage bolts (18) into middle set of holes on wheel bracket (19) as shown.

10. Attach lower pivot bracket (20) to wheel bracket (19) using bolt (21), washers (13), disc (22), and nut (10) as shown.

11. Attach handle bar (23) to wheel bracket assembly using nuts (17) as shown.

12. Install wheels (3) onto axle (24) and wheel bracket assembly with push caps (25) as shown.

13. Attach wheel bracket assembly to base assembly using bolt (26), washers (13), and nut (10) as shown.

14. NOTE: Two people recommended for this step. Carefully reposition entire assembly to upright position. Attach front of plastic handle (27) to back of plastic handle (28) around handle bar (23) using self-tapping screws (45) as shown.

IMPORTANT! Front of plastic handle (27) should face outward, away from pole assembly.

15. Insert bolts (30) through plastic handle assembly, handle bar (23) and

attach nuts (17) as shown. Tighten completely.

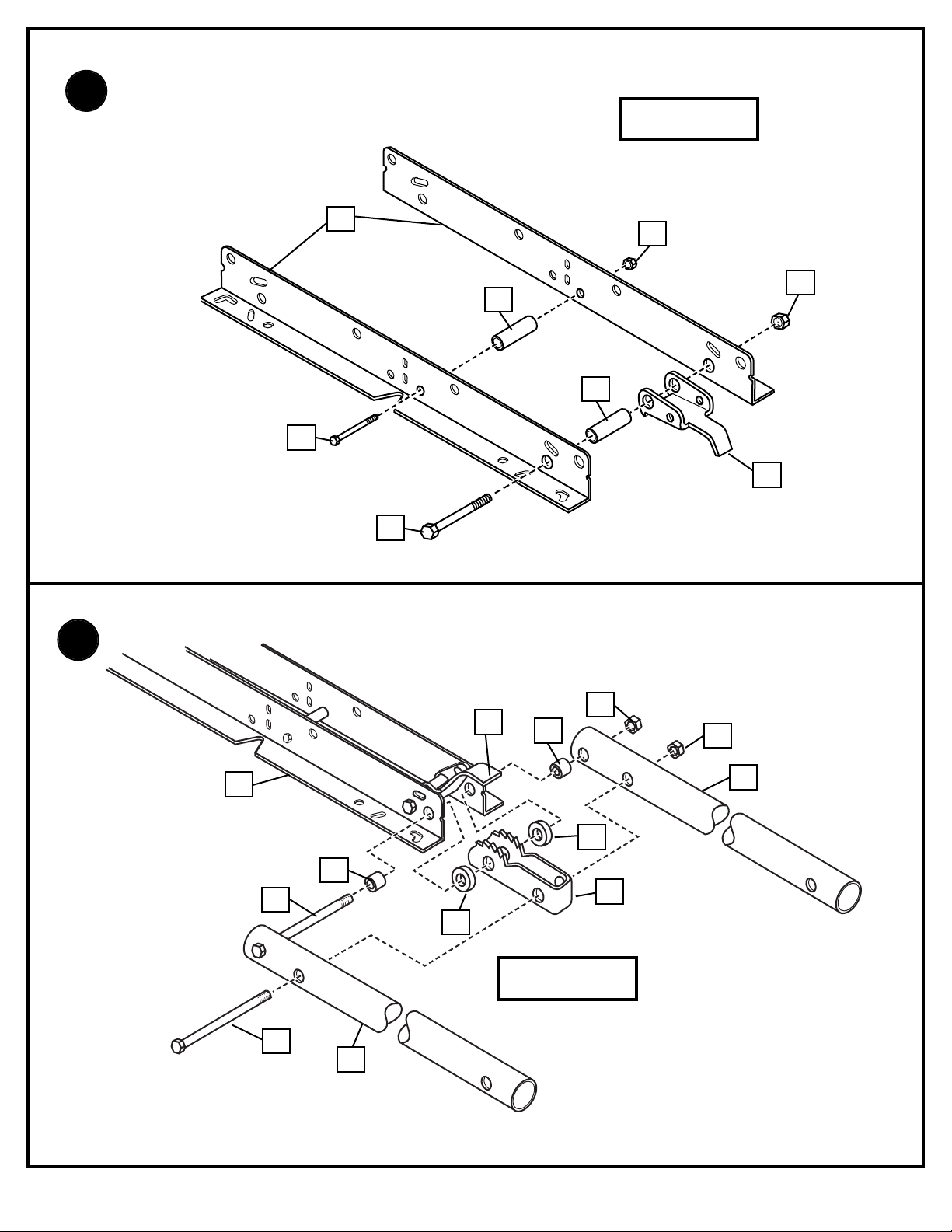

16. IMPORTANT! Test fit bolts into holes of backboard brackets (38) and carefully rock them in a circular motion to ream out paint from holes if necessary.

Fit spacer (39) into pawl (40). Then continue to assemble as shown. Tighten completely.

17. Assemble elevator tubes (43) to ratchet components as shown. Tighten completely. IMPORTANT! It is necessary for all parts to be installed

properly for this mechanism to work safely and properly.

18. Secure pawl (40) in place with clevis pin (48).

19. Stretch spring (56) into position with pliers.

WARNING: USE EYE PROTECTION WHEN INSTALLING

SPRINGS.

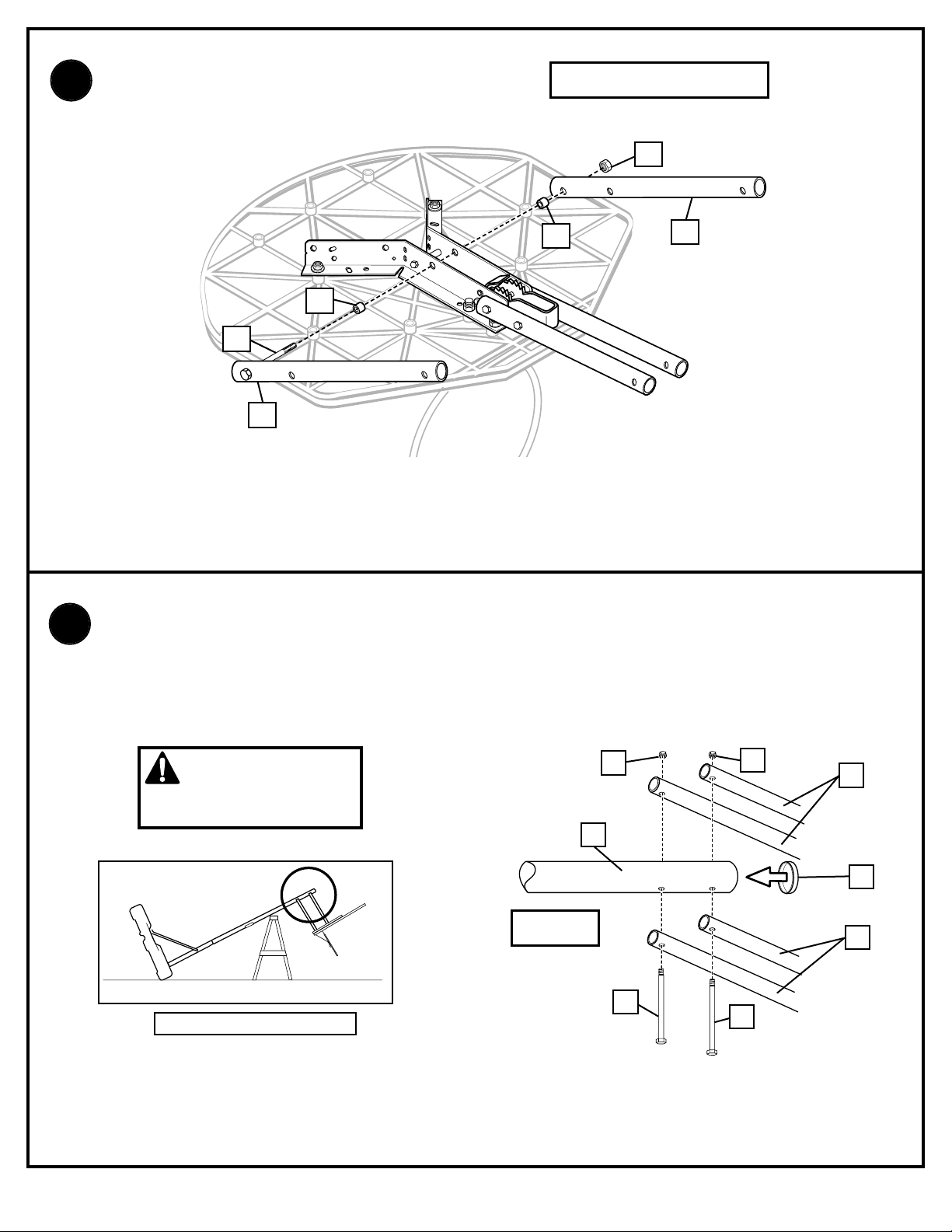

20. WARNING: TWO PERSON MINIMUM REQUIRED FOR THIS PROCEDURE. NOT FOLLOWING RECOMMENDATION MAY RESULT IN BODILY INJURY.

Starting with nuts (17) flush against backboard bracket (38), secure rim and bracket to backboard. Bend upper halves of backboard brackets to line up with holes in backboard and secure. Tighten completely. NOTE: Mounting nuts and bolts supplied with rim hardware.

21. Assemble elevator tubes (43) to backboard bracket as shown.

22. WARNING: TWO PERSON MINIMUM REQUIRED FOR THIS PROCEDURE. NOT FOLLOWING RECOMMENDATION MAY RESULT IN BODILY INJURY.

Support pole on sawhorse. Attach backboard assembly to top pole section (4) as shown. Then install pole cap (37). NOTE: Two people are recommended for this step, use caution, elevator assembly is heavy.

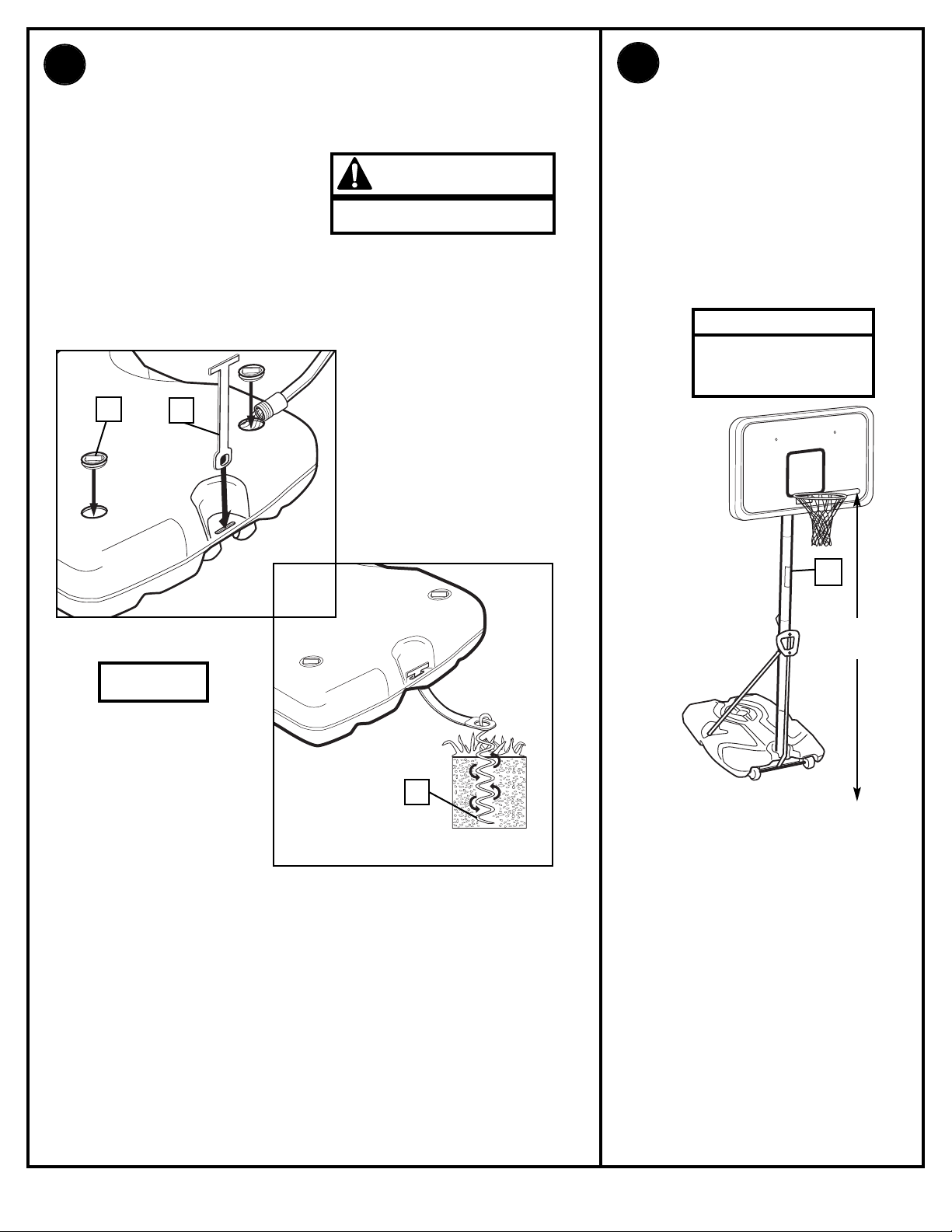

23. WARNING: DO NOT LEAVE ASSEMBLED UNIT UNATTENDED WHEN EMPTY, MAY TIP OVER. NOTE: Two people recommended for this procedure. Roll the completed

assembly to the desired playing area. Insert the T-strap (15) through the slot on the back of the base as shown. Secure the unit to ground by twisting the tie down stake (49) into the ground and hooking the T-strap (15) onto the tie down stake (49). Fill tank with 33 gallons of water.

IMPORTANT! Add 2 gallons (7.6 liters) of non-toxic antifreeze in sub-freezing climates.

24. Apply height adjustment and moving label (51) to front of pole as shown.

Regulation rim height is 10 feet (3.05 m).

WARNING: DO NOT ALLOW CHILDREN TO ADJUST HEIGHT.

WARNING: USE OF THIS PRODUCT WITHOUT PROPER

INSTALLATION OF SMART CLIPS, OR WHEN ALL SMART CLIPS ARE NOT PRESENT COULD RESULT IN BODILY HARM. BE SURE TO FOLLOW DIRECTIONS CAREFULLY.

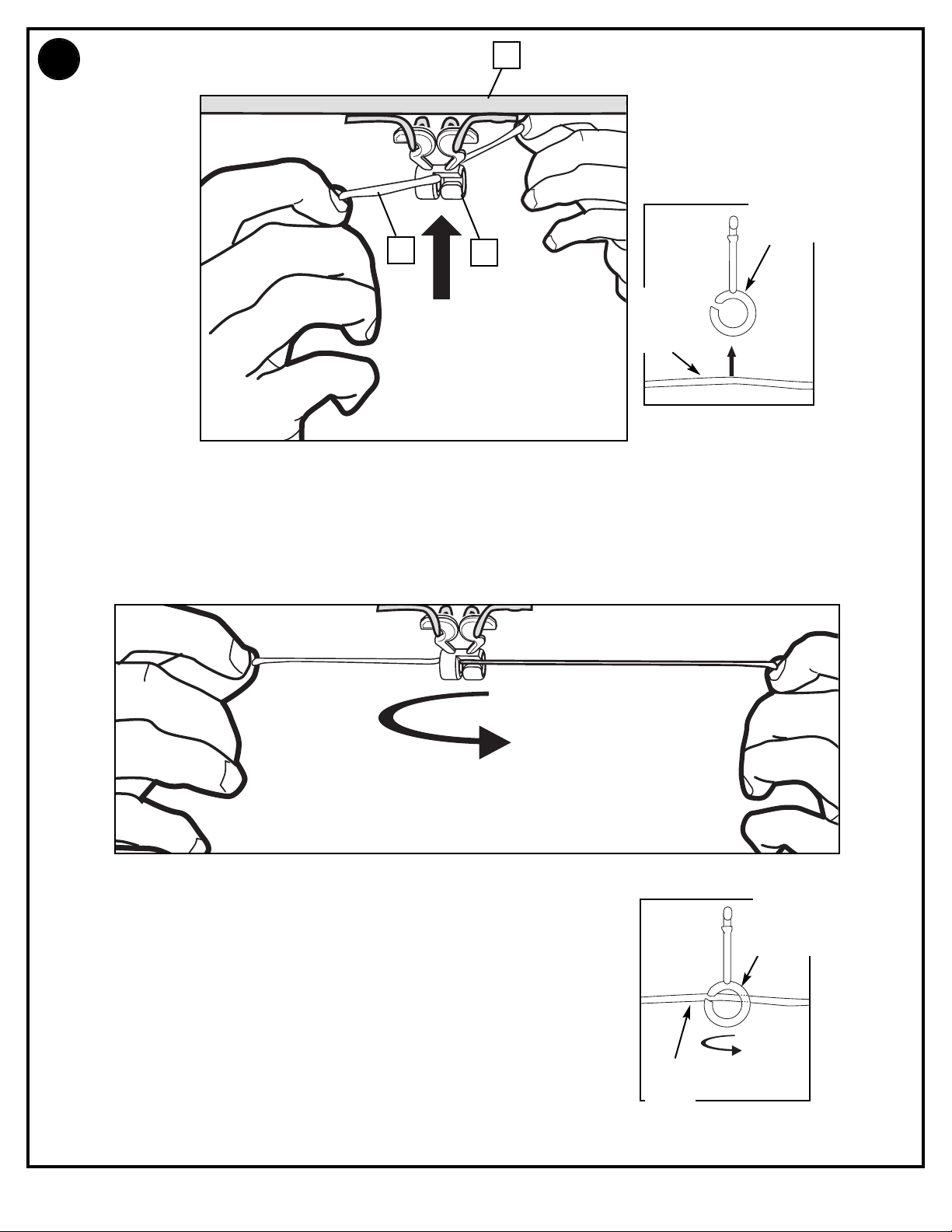

25. Install net clips as shown. (See illustration)

26. Install net as shown. (See illustration)

05/03 P/N 214946C

IMPORTANT! WRITE MODEL NUMBER FROM BOX ONTO PAGE 1 OF THIS OWNERS MANUAL

P/N 214946C 05/03

TOP (31")

MIDDLE (43")

BOTTOM (43")

+ 17 hidden pages
