Huffy 111-500 User Manual

06/03 P/N 211953B

WARNING

FAILURE TO FOLLOW THESE WARNINGS MAY RESULT

IN SERIOUS INJURY AND/OR PROPERTY DAMAGE.

Owner must ensure that all players know and follow

these rules for safe operation of the system.

• DO NOT HANG on the rim or any part of the system

including backboard, support braces or net.

• During play, especially when performing dunk type

activities, keep player's face away from the backboard, rim

and net. Serious injury could occur if teeth/face come in

contact with backboard, rim or net.

• Do not slide, climb, shake or play on base and/or pole.

• After assembly is complete, fill system completely with

water or sand and stake to the ground. Never leave system

in an upright position without filling base with weight, as

system may tip over causing injuries.

• When adjusting height or moving system, keep hands and

fingers away from moving parts.

• Do not allow children to move or adjust system.

• During play, do not wear jewelry (rings, watches, necklaces,

etc.). Objects may entangle in net.

• Surface beneath the base must be smooth and free of

gravel or other sharp objects. Punctures cause leakage and

could cause system to tip over.

• Keep organic material away from pole base. Grass, litter,

etc. could cause corrosion and/or deterioration.

• Check pole system for signs of corrosion (rust, pitting,

chipping) and repaint with exterior enamel paint. If rust has

penetrated through the steel anywhere, replace pole

immediately.

• Check system before each use for proper ballast, loose

hardware, excessive wear and signs corrosion and repair

before use.•Check system before each use for instability.

• Do not use system during windy and/or severe weather

conditions; system may tip over. Place system in the

storage position and/or in an area protected from the wind

and free from personal property and/or overhead wires.

• Never play on damaged equipment.

• See instruction manual for proper installation and

maintenance.

• When moving system, use caution to keep mechanism from

shifting.

• Keep pole top covered with cap at all times.

• Do not allow water in tank to freeze. During sub-freezing

weather add non-toxic antifreeze, sand or empty tank

completely and store. (Do not use salt.)

• Use extreme caution if placing system on sloped surface.

System may tip over more easily.

201241 2/99

In the U.S.:1-800-558-5234 and Canada: 1-800-284-8339

Toll-Free Customer Service Number for U.S: 1-800-558-5234, For Canada: 1-800-284-8339, For Europe: 00 800 555 85234 (Sweden: 009 555 85234),

For Australia: 1-800-333 061 - Internet Address: http://www.huffysports.com

Most injuries are caused by misuse and/or not following instructions.

Use caution when using this system.

• If using a ladder during assembly, use extreme caution.

• Two (2) people are recommended for this operation.

• Check base regularly for leakage. Slow leaks could cause system to

tip over unexpectedly.

• Seat the pole sections properly (if applicable). Failure to do so could

allow the pole sections to separate during play and/or transport of the

system.

• Climate, corrosion or misuse could result in system failure.

• If technical assistance is required, contact Huffy Sports.

• Minimum operational height is 6'6" (1.98 m) to the bottom of

backboard.

• This equipment is intended for home recreational use only and NOT

excessive competitive play.

• Read and understand the warning label affixed to pole. Label is

shown on page 1.

• The life of your basketball pole depends on many conditions. The

climate, placement of the pole, the location of the pole, exposure to

corrosives such as pesticides, herbicides or salts are all important.

• Adult supervision is recommended when adjusting height.

FAILURE TO FOLLOW THESE SAFETY INSTRUCTIONS MAY

RESULT IN SERIOUS INJURY, PROPERTY DAMAGE AND WILL

VOID WARRANTY.

Owner must ensure that all players know and

follow these rules for safe operation of the system.

To ensure safety, do not attempt to assemble this system without

following the instructions carefully. Proper and complete assembly,

use and supervision is essential for proper operation and to reduce

the risk of accident or injury. A high probability of serious injury

exists if this system is not installed, maintained, and operated

properly. Check entire box and inside all packing material for parts

and/or additional instructional material. Before beginning

assembly, read the instructions and identify parts using the

hardware identifier and parts list in this document.

For more information on assembly, placement, proper use and

maintenance, visit The American Basketball Council website at

http://www.smarthoops.com.

SAFETY INSTRUCTIONS

REQUIRED TOOLS AND

MATERIALS:

• Two People

• Tape Measure

• Wood Board (Scrap)

• Wrenches: (Two) 7/16”, 1/2”,

9/16”, 3/4” or Large and Small

Adjustable Wrenches

• Sawhorse or Support Table

• Step Ladder 8 ft. (2.4 m)

• Garden Hose or Sand (225 lb.)

(102 kg)

• Hammer

• Tape

• Phillips Screwdriver

• Safety Goggles

TUFF STUFF® and associated trademarks are owned and used with permission of Mattel, Inc.

Huffy products are not sponsored, endorsed or authorized in any way by Mattel, Inc. or any of

its affiliated or subsidiary companies.

The NBA and individual NBA member team identifications reproduced on this product are trademarks and

copyrighted designs, and/or other forms of intellectual property, that are the exclusive property of NBA Properties,

Inc. and the respective NBA member teams and may not be used, in whole or in part, without the written consent of

NBA Properties, Inc.

WRITE IN YOUR MODEL NUMBER:___________

Customer Service Center • N53 W24700 South Corporate Circle • Sussex, WI 53089 • U.S.A.

A Huffy Company

Portable Basketball System with Elevator-Owners Manual

IMPORTANT!

In U.S. and Canada only:

Have questions?...don’t go back to the store!

We appreciate your purchasing one of our many fine products. We are sure that you will be very satisfied with your selection. Although great care and effort have been taken, occasionally problems may occur.

To ensure prompt and correct handling of any problems, or to answer any questions, please contact our Toll-Free Customer Service Number listed below. Service will be quicker if you have your Model Number

(found on carton) and assembly instructions ready when calling. PLEASE WRITE YOUR MODEL NUMBER IN THE SPACE PROVIDED ABOVE.

NOTICE TO ASSEMBLERS

ALL Huffy Sports basketball Systems,

including those used for DISPLAYS,

MUST be assembled and ballasted with

sand or water according to instructions.

Failure to follow instructions could result

in SERIOUS INJURY. It is NOT

acceptable to devise a makeshift weight

system.

HUFFY

SPORTS

HEIGHT ADJUSTMENT

TO ADJUST BACKBOARD:

1. While holding handle, remove pin.

2. Move elevator up or down to

desired height.

system at desired height.

3. Replace pin full length to lock

height to lowest position.

basketball system forward

1. Adjust basketball backboard

2. While holding pole, rotate

MOVING SYSTEM

until wheels engage with

ground.

desired location.

system upright.

3. Move basketball system to

4. Carefully rotate basketball

check system for stability.

5. Reattach ground restraint and

201252 2/99

SPORTS

HUFFY

P/N 211953B 06/03

Item #8 (1)

Item #14 (1)

Item #15 (2)

Item #18 (2)

HARDWARE IDENTIFIER (BOLTS)

Item #21 (3)

* You may have extra parts with this model

Item #25 (3)

Item #30 (2)

Item #47 (6)

Item #48 (1)

Item #37 (1)

Item #31 (1)

06/03 P/N 211953B

HARDWARE IDENTIFIER (STEEL SPACERS & RODS)

HARDWARE IDENTIFIER (NUTS & WASHERS)

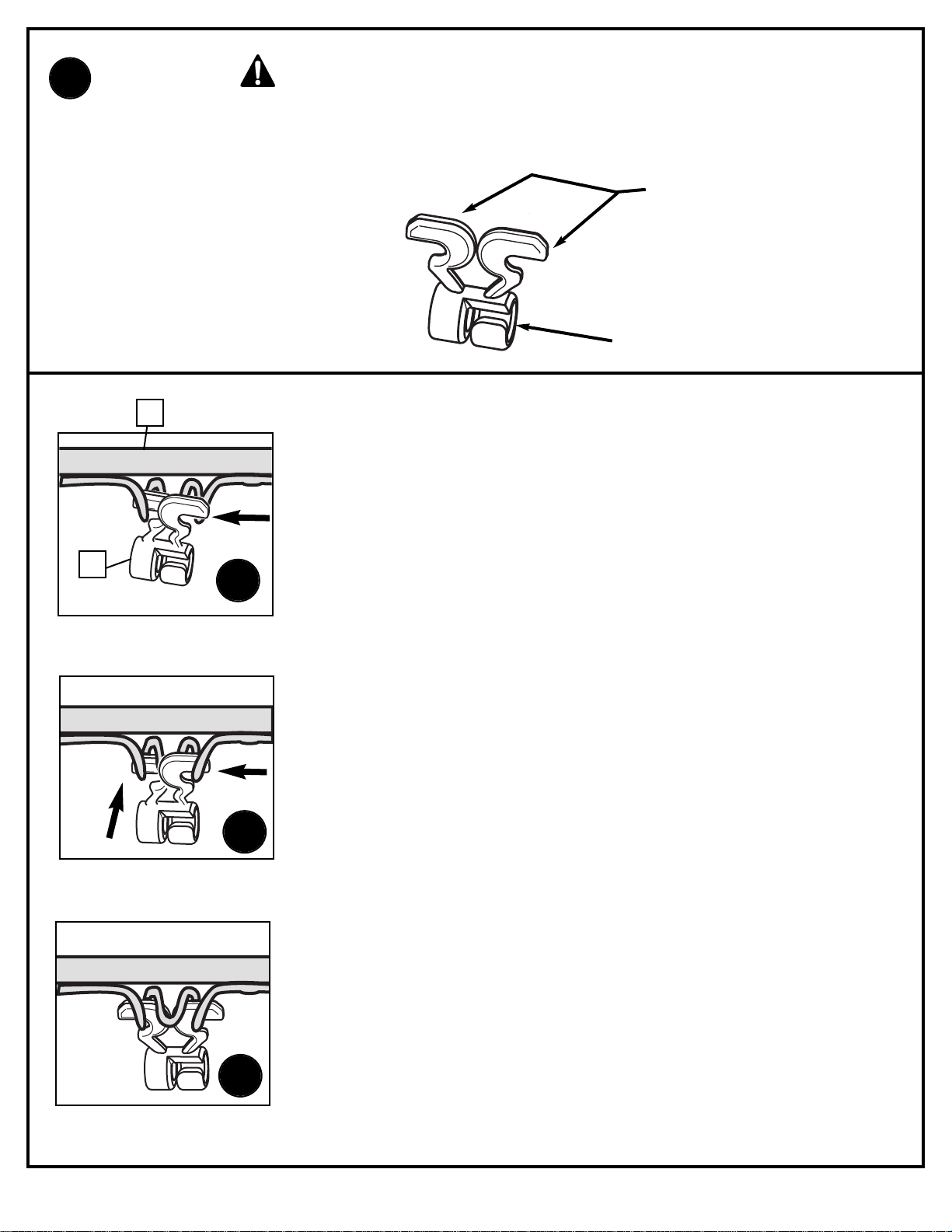

HARDWARE IDENTIFIER (PLASTIC SPACERS & CLIPS)

Item #36 (2)

Item #38 (6)

Item #44 (4)

Item #55 (6)

Item #23 (2)

* You may have extra parts with this model.

Item #13 (7)

Item #16 (11)

Item #19 (4)

Item #20 (3)

Item #9 (1)

Item #50 (12)

Item #35 (1)

Item #39 (7)

Item #10 (1)

Item #12 (1)

Item #2 (2)

Item #7 (1)

P/N 211953B 06/03

PARTS LIST - See Hardware Identifier

Item

Qty.Part No. Description

1 1 206336 Tank, (Gray) 2 2 206330 Wheel Axle, 4-1/4 Long 3 2 226401 Wheel, 4 “ (Black) 4 1 904847 Top Pole Section 5 1 908481 Middle Pole Section 6 1 908487 Bottom Pole Section 7 1 202820 Rod, 3/8 O.D. x 4-3/4 Long 8 1 202822 Eyebolt, 3/8-16 x 3-3/4 Long

9 1 202821 Disk, 2-3/4 Diameter 10 1 203063 Nylon Insert Lock Nut, 3/8-16 11 2 906410 Strut, 1” O.D. x 43 Long 12 1 203220 Nut, Nylock, 5/16-18 13 7 203218 Washer, 5/16 Flat 14 1 201625 Bolt,Yellow Dichromate,5/16-18 X 3.60 Long 15 2 203798 Bolt, Hex Flange, 5/16-18 x 1-1/2 Long 16 11 203100 Hex Flange Nut 5/16-18 17 1 204832 Bracket, Pole Mount 18 2 203231 Carriage Bolt, 5/16-18 x 3-1/2 Long 19 4 220154 Washer, metal, 3/4” O.D. 20 3 201124 Locknut, Hex Head, 3/8-16 21 3 206360 Bolt, Hex Head, 3/8-16 x 2-5/8 Long 22 2 204858 Spacer, Biscut, plastic 23 2 204857 Spacer, metal 1/2” O.D.x1.44 Long 24 2 204859 Cover, Spring 25 3 203038 Carriage Bolt, 5/16-18 x 2-3/4 Long 26 1 204850 Pin, Locking 27 1 204853 Lanyard, Black Coil 28 1 904833 Height Adjustment Rod 29 1 204872 Label, Height Indicator 30 2 203103 Carriage Bolt, 5/16-18 x 2 Long 31 1 204803 Screw, Phillips Head 32 1 204855 Handle, Left 33 1 204856 Handle, Right 34 2 900846 Board Bracket 35 1 203493 Nut, 1/4-20, Center Lock 36 2 201129 Spacer, .402 I.D. x .5 O.D. x 1.8 Long 37 1 240017 Bolt, Hex Head, 1/4-20 x 2-1/4 Long 38 6 206311 Spacer, Plastic, .530 I.D. x .50 Long 39 7 206340 Locknut, Hex Head, 1/2-13 40 2 904820 Elevator Tube, Lower-Long 41 1 204838 Spring 42 1 Rim 43 2 904808 Elevator Tube, Upper-Short 44 4 201651 Spacer, 1/4 Long x 1/2 O.D. 45 2 900867 Plate, Triangle, (Black) 46 1 202814 Cap, Pole Top 47 6 206244 Bolt, Hex, 1/2-13 x 8 Long 48 1 204870 Bolt, Hex, 1/2-13 x 3-1/2 Long 49 2 203617 Plug Cap 50 12 201219 Smart Clip, Net Holder, 51 1 Net 52 1 201568 Anchor, T-Strap 53 1 203124 Stake, Tie Down 54 1 201252 Label, Height Adjustment and Moving 55 6 202862 Spacer .563 I.D. x 1.19 Long

* You may have extra parts with this model.

WARRANTY CARD:

Please remember to complete your product registration form either on-line at: www.huffysports.com/warrantycard or mail-in the enclosed postcard.
