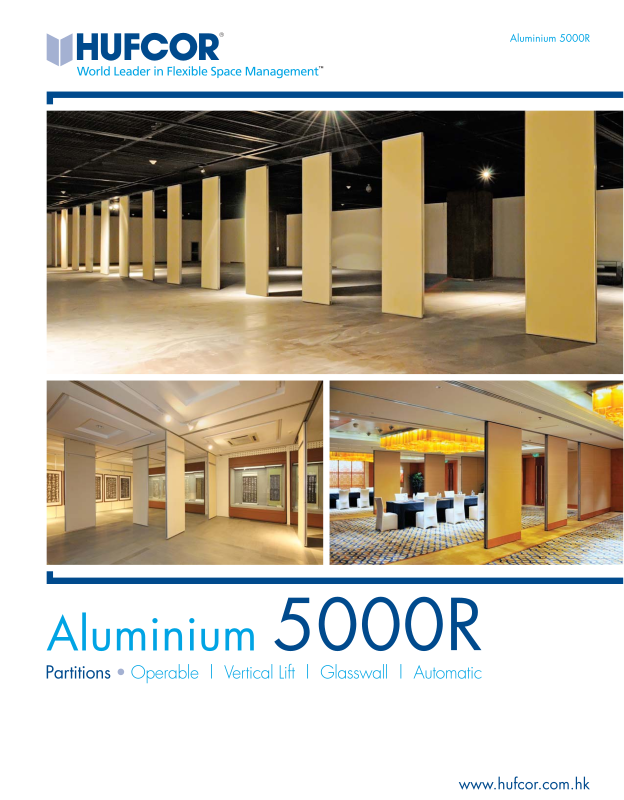

HUFCOR 5000R User Manual

FeaturesAluminium 5000R

Operable top seal (available on all models)

retracts for easiest panel movement.

Interlocking vertical seals for superior acoustics.

Rigid, reinforced, non-deflection frame.

• Faces of chipboard, steel or gypsum board that

can be factory or field decorated.

• Laminated construction provides superior panel

flatness and high-impact resistance.

Pressure-type retractable floor seal for superior

acoustical performance.

HUFCOR, a US-based corporation, is the global market leader in flexible
space management, with an internationally acclaimed heritage of over 110
years. We pride ourselves in our ability to maintain the highest possible
standards of differentiated services, including total solutions from design,
manufacturing and project management to installation and product
maintenance.

Aluminium 5000R is the newest addition to the broadest line of operable
walls available from any manufacturer. A strong, lightweight aluminium
frame surrounds and protects the face of each panel. 83mm (3
aluminium 5000R panel means less storage space. Its sophisticated
vertical and horizontal seal systems create optimum acoustic separations –
as high as 51dB. The top-hung aluminium 5000R panels can be made in
heights up to 5 meters (16 ft) without floor tracks or floor guides.

HUFCOR’s world-proven multi-directional trolley systems create easiest
movement through turns and crosses to remote storage. While, quick-setting
seal system creates fastest operable wall setup and storage.

1/4

”) thick

Quick-setting seal operation (no tedious

cranking).
