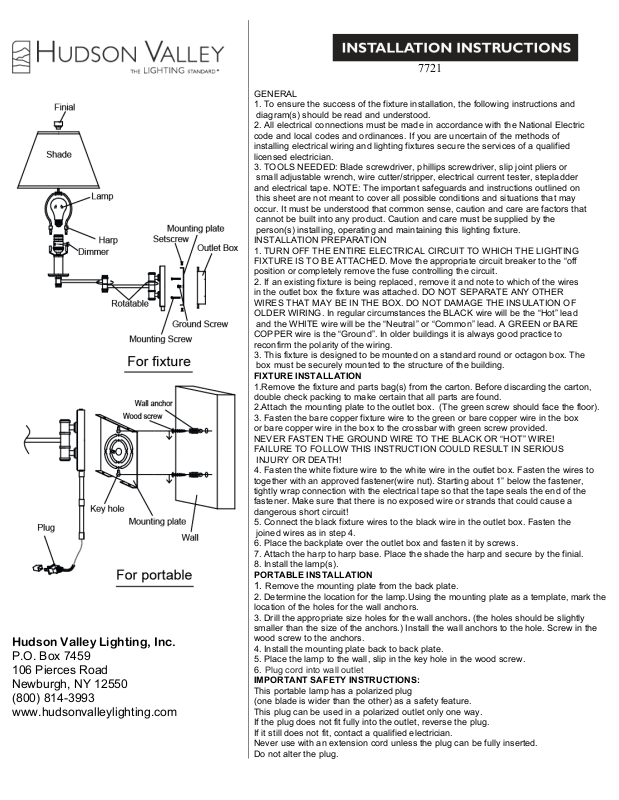

Hudson Valley 7721 User Manual

7721

Hudson Valley Lighting, Inc.

P.O. Box 7459
106 Pierces Road
Newburgh, NY 12550
[phone]
www.hudsonvalleylighting.com

GENERAL

1. To ensure the success of the fixture installation, the following instructions and
diagram(s) should be read and understood.

2. All electrical connections must be made in accordance with the National Electric
code and local codes and ordinances. If you are uncertain of the methods of
installing electrical wiring and lighting fixtures secure the services of a qualified
licensed electrician.

3. TOOLS NEEDED: Blade screwdriver, phillips screwdriver, slip joint pliers or
small adjustable wrench, wire cutter/stripper, electrical current tester, stepladder
and electrical tape. NOTE: The important safeguards and instructions outlined on
this sheet are not meant to cover all possible conditions and situations that may
occur. It must be understood that common sense, caution and care are factors that
cannot be built into any product. Caution and care must be supplied by the
person(s) installing, operating and maintaining this lighting fixture.
INSTALLATION PREPARATION

1. TURN OFF THE ENTIRE ELECTRICAL CIRCUIT TO WHICH THE LIGHTING
FIXTURE IS TO BE ATTACHED. Move the appropriate circuit breaker to the “off
position or completely remove the fuse controlling the circuit.

2. If an existing fixture is being replaced, remove it and note to which of the wires
in the outlet box the fixture was attached. DO NOT SEPARATE ANY OTHER
WIRES THAT MAY BE IN THE BOX. DO NOT DAMAGE THE INSULATION OF
OLDER WIRING. In regular circumstances the BLACK wire will be the “Hot” lead
and the WHITE wire will be the “Neutral” or “Common” lead. A GREEN or BARE
COPPER wire is the “Ground”. In older buildings it is always good practice to
reconfirm the polarity of the wiring.

3. This fixture is designed to be mounted on a standard round or octagon box. The
box must be securely mounted to the structure of the building.
FIXTURE INSTALLATION

1.Remove the fixture and parts bag(s) from the carton. Before discarding the carton,
double check packing to make certain that all parts are found.

2.Attach the mounting plate to the outlet box. (The green screw should face the floor).

3. Fasten the bare copper fixture wire to the green or bare copper wire in the box
or bare copper wire in the box to the crossbar with green screw provided.
NEVER FASTEN THE GROUND WIRE TO THE BLACK OR “HOT” WIRE!
FAILURE TO FOLLOW THIS INSTRUCTION COULD RESULT IN SERIOUS
INJURY OR DEATH!

4. Fasten the white fixture wire to the white wire in the outlet box. Fasten the wires to
together with an approved fastener(wire nut). Starting about 1” below the fastener,
tightly wrap connection with the electrical tape so that the tape seals the end of the
fastener. Make sure that there is no exposed wire or strands that could cause a
dangerous short circuit!

5. Connect the black fixture wires to the black wire in the outlet box. Fasten the
joined wires as in step 4.

6. Place the backplate over the outlet box and fasten it by screws.

7. Attach the harp to harp base. Place the shade the harp and secure by the finial.

8. Install the lamp(s).

PORTABLE INSTALLATION

1. Remove the mounting plate from the back plate.

2. Determine the location for the lamp.Using the mounting plate as a template, mark the
location of the holes for the wall anchors.

3. Drill the appropriate size holes for the wall anchors. (the holes should be slightly
smaller than the size of the anchors.) Install the wall anchors to the hole. Screw in the
wood screw to the anchors.

4. Install the mounting plate back to back plate.

5. Place the lamp to the wall, slip in the key hole in the wood screw.

6. Plug cord into wall outlet

IMPORTANT SAFETY INSTRUCTIONS:

This portable lamp has a polarized plug
(one blade is wider than the other) as a safety feature.
This plug can be used in a polarized outlet only one way.
If the plug does not fit fully into the outlet, reverse the plug.
If it still does not fit, contact a qualified electrician.
Never use with an extension cord unless the plug can be fully inserted.
Do not alter the plug.
