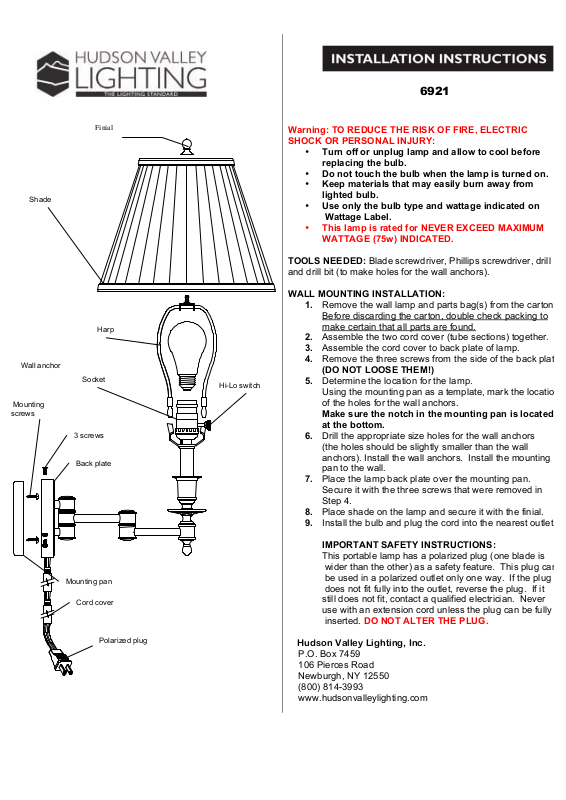

Page 1
Finial
Blade screwdriver, Phillips screwdriver, drill
Remove the wall lamp and parts bag(s) from the carton.
Remove the three screws from the side of the back plate.
Using the mounting pan as a template, mark the location
Make sure the notch in the mounting pan is located
Install the bulb and plug the cord into the nearest outlet.
wider than the other) as a safety feature. This plug can
Shade
Harp
Socket
Hi-Lo switch
3 screws
Polarized plug
Cord cover
Wall anchor
Mounting
6921
Warning: TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY:
• Turn off or unplug lamp and allow to cool before
replacing the bulb.
• Do not touch the bulb when the lamp is turned on.
• Keep materials that may easily burn away from
lighted bulb.
• Use only the bulb type and wattage indicated on
Wattage Label.
• This lamp is rated for NEVER EXCEED MAXIMUM
WATTAGE (75w) INDICATED.
TOOLS NEEDED:
and drill bit (to make holes for the wall anchors).
WALL MOUNTING INSTALLATION:
1.
Before discarding the carton, double check packing to
make certain that all parts are found.
2. Assemble the two cord cover (tube sections) together.
3. Assemble the cord cover to back plate of lamp.
4.
(DO NOT LOOSE THEM!)
5. Determine the location for the lamp.
of the holes for the wall anchors.
Back plate
Mounting pan
at the bottom.
6. Drill the appropriate size holes for the wall anchors
(the holes should be slightly smaller than the wall
anchors). Install the wall anchors. Install the mounting
pan to the wall.
7. Place the lamp back plate over the mounting pan.
Secure it with the three screws that were removed in
Step 4.
8. Place shade on the lamp and secure it with the finial.
9.
IMPORTANT SAFETY INSTRUCTIONS:
This portable lamp has a polarized plug (one blade is
be used in a polarized outlet only one way. If the plug
does not fit fully into the outlet, reverse the plug. If it
still does not fit, contact a qualified electrician. Never
use with an extension cord unless the plug can be fully
inserted. DO NOT ALTER THE PLUG.
Hudson Valley Lighting, Inc.
P.O. Box 7459
106 Pierces Road
Newburgh, NY 12550
(800) 814-3993
www.hudsonvalleylighting.com
