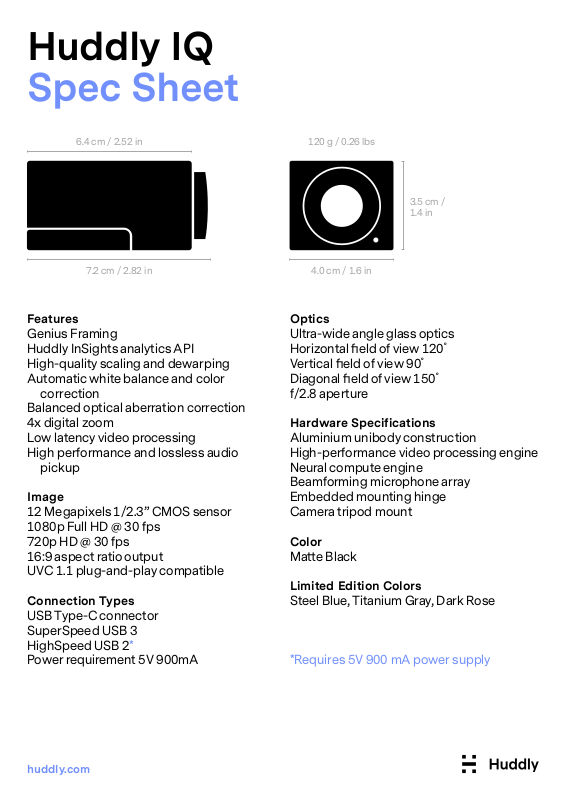

Huddly IQ Specifications
Huddly IQ
Spec Sheet
6.4 cm / 2.52 in
7.2 cm / 2.82 in
Features
Genius Framing
Huddly InSights analytics API
High-quality scaling and dewarping
Automatic white balance and color
correction
Balanced optical aberration correction
4x digital zoom
Low latency video processing
High performance and lossless audio
pickup
12 Megapixels 1/2.3” CMOS sensor
1080p Full HD @ 30 fps
720p HD @ 30 fps
16:9 aspect ratio output
UVC 1.1 plug-and-play compatible
Connection Types
USB Type-C connector
SuperSpeed USB 3
HighSpeed USB 2*
Power requirement 5V 900mA
120 g / 0.26 lbs
3.5 cm /
1.4 in
4.0 cm / 1.6 in
Optics
Ultra-wide angle glass optics
Horizontal field of view 120˚
Vertical field of view 90˚
Diagonal field of view 150˚
f/2.8 aperture
Hardware Specifications
Aluminium unibody construction
High-performance video processing engine
Neural compute engine
Beamforming microphone array
Embedded mounting hinge
Camera tripod mount
Color
Mae Black
Limited Edition Colors
Steel Blue, Titanium Gray, Dark Rose
*Requires 5V 900 mA power supply
huddly.com
Huddly IQ
Features
Convolutional Neural Network
Multi-layered CNN design allows Huddly IQ
to instantly identify visual paerns, and
detect people and objects
Neural Compute Engine based on
Intel Movidius MyriadX
Edge-based Machine Learning platform
that enables onboard intelligent features
such as Genius Framing and InSights
analytics
Genius Framing
Genius Framing detects the people in the
camera’s field of view and smoothly zooms
in to frame them perfectly for the far end
Huddly InSights Analytics API
Huddly IQ can detect and count people
within its field of view, with high-quality
analytics data accessible via the Huddly
InSights API
Dynamic Light Optimization
Adapts to poor lighting conditions
Real-Time Dewarping
e wide-angle image is dewarped
and perspective corrected in real time,
rendering a natural, true-to-life view
Beamforming Microphone Array
e built-in beamforming microphone
array makes sure everyone is heard loud
and clear
Software-upgradable
Designed to get even smarter over time
with regular enhancements and new
intelligent feature releases
180° Auto-Flip
When mounted upside down, the camera
automatically provides the correct view
Digital Pan/Tilt/Zoom
Huddly IQ has no moving parts, making it
compact and silent, as well as more reliable
and accurate. Instantly pan, tilt and zoom
digitally up to 4 times
Visual Noise Filtering
Bias compensating spatio-temporal
filtering with wide area chroma filtering
huddly.com
