Hubbell Lighting - Columbia MPS4, MPS8, MPSCRK, CM**SCF*-KIT, CM**NF-KIT User Manual

MPS

Color Tuning Technology

™

MULTIPURPOSE LINEAR

FEATURES

• Uninterrupted ribbon of light; row mounting optional

• Long life 60,000 hour LEDs at L80 for reduced maintenance

• Superior color consistency within a 3-step MacAdam ellipse and greater than 80 CRI

• Available in 2', 4' or 8' lengths

• Optional integral emergency battery pack

• Three lens options as well as less lens (NL)

• Modular replaceable LED boards and driver accessible for future maintenance or upgrades

• Surface mount, wall mount or suspended

Built to UL 924

Standards

CONTROL TECHNOLOGY

DATE: LOCATION:

TYPE: PROJECT:

CATALOG #:

RELATED PRODUCTS

End View—Curve Lens End View—Flat Lens

2.56" (65.02mm)

3.06"

(77.7mm)

3.11"

(79mm)

2.44"

(62mm)

2.56" (65.02mm)

3" (76.2mm)

SPECIFICATIONS

CONSTRUCTION

• Housing, wireway, and ends are formed from code-gauge steel

• Housing components act as heat sink for LED heat dissipation

• White painted parts are treated with a ﬁve stage phosphate bonding process and ﬁnished with high reﬂectance baked enamel

OPTICS

• Available with or without frosted acrylic lens

INSTALLATION

• Knockouts are provided for electrical access and mounting

ELECTRICAL

• Long-life LEDs are rated for 60,000 hours at L80 lumen maintenance

• Driver options include ﬁxed output for on/ o function, step dimming (high/low/ o), or continuous 0–10V dimming

• Superior drivers and long-life LEDs provide quality illumination for prolonged service life

• Drivers < 10% THD at 120V, power factor > 0.95

CONTROLS

• Optional SpectraSync™ oers two modes of Tunable White solutions and integrates seamlessly into a variety of control systems

• NX Distributed Intelligence™ provides options for standalone and networked integrated sensor with wired or wireless connectivity for NX system deployments

CERTIFICATIONS

• IC label is standard for recessed products

• All luminaires are built to UL 1598 and 2108 standards, and bear appropriate cCSAus labels

• Damp Location label standard

• CSA certiﬁed to UL 924 standards with battery pack or DTS (Dimming Bypass Module) options

• Adheres to LM79, LM80, and TM21 industry standards

• The DTS, Dimming Bypass Module, is for emergency circuit control loads including sensors and wireless systems CSA certiﬁed to UL 924. See page 10 for wiring diagram. Link to Dimming Bypass Module

Speciﬁcation sheet

WARRANTY

• 5 year warranty

• See HLI Standard Warranty for additional information

KEY DATA

Lumen Range 1377–16,833

Wattage Range 13.5–133.8

Ecacy Range (LPW) 111–142

Reported Life (Hours) L80–60,000

Input Current Range (Amps) 0.11–1.11

Page 1/10 Rev. 01/15/20 COL_MPS_S

© 2020 Columbia Lighting, a division of Hubbell Lighting, Inc. Speciﬁcations subject to change without notice. 701 Millennium Blvd • Greenville, SC 29607 / Tel 864.678.1000 / Website www.columbialighting.com

DATE: LOCATION:

TYPE: PROJECT:

MPS

CATALOG #:

MULTIPURPOSE LINEAR

ORDERING GUIDE

CATALOG #

MPS

Model Size

MPS

MultiPurpose Linear

2 2' 4 4' 8 8'

1

CRI Color Temp Nominal Lumens

Blank >80 9 90

– – –

4

30 3000K

2

35 3500K 40 4000K 50 5000K 2750T 2700K–5000K

2765T 2700K–6500K

SpectraSync™ Tunable White

3

XW XWHE VW

VWHE MW

MWHE

LW

4' (2700), 8' (5400)

4' (2500), 8' (5000)

2' (1700), 4' (3400), 8' (6900)

4' (3300), 8' (6600)

2' (2300), 4' (3800), 8' (7700)

2' (2100), 4' (3700), 8' (7400)

2' (2500), 4' (4200),

LWHE

2' (2600), 4' (4100), 8' (8200)

ML

2' (3600), 4' (4800), 8' (9500)

MLHE

4' (4700), 8' (9400)

HL

2' (3800), 4' (6000), 8' (12,000)

HLHE

4' (5700), 8' (11,500)

VL

4' (7100), 8' (14,200)

XL

4' (8400), 8' (17,000)

8' (8400)

– –

Driver Voltage Options Control Options

E Fixed Output ED 0-10V Dimming ED1 0-10V 1% Dimming EDD 0-10V Dim-to-Dark ESD Step Dimming LUTH Hi-lume 1% EcoSystem

LED driver with Soft-on, Fade-to-Black dimming technology

LUT5 5-Series EcoSystem LED

driver

DALIP DALI Power Bus

7

8

U 120V-277V 347 347V (E, ED,

ED1 only)

ELL14 Emergency Battery Pack,10W ELL14H2 Emergency Battery Pack, 2-Hour

Run Time

9,10, 11

GLR Fast Blow Fuse GTD Generator Transfer Device DTS Dimming Bypass Module MPSCE Injection Molded ABS Material Curve

Endcap

14

MPSCE-MB Injection Molded ABS Material Curve

Endcap, Matte Black

MPSFE Injection Molded ABS Material Flat

Endcap

14

MPSFE-MB Injection Molded ABS Material Flat

Endcap, Matte Black

MB Matte Black ZT ZET Metallic Silver PAF Painted After Fabrication

9,1 0,11

NX Standalone NXS NX, PIR BT Occupancy/Daylight Sensor, Slide Mount NX Networked – Wired

12

13

NXE NX, Dual SmartPORTs NXES NX, PIR BT Occupancy/Daylight Sensor, Slide Mount,

Dual SmartPORTs

NX Networked – Wireless NXSW NX Wireless, PIR BT Occupancy/Daylight Sensor NXWE NX Wireless Enabled Third-Party Control Options ODPG Occupancy and Daylight Sensors w/ Grouping, Philips

SNS200

LVR Lutron Vive Integral Fixture Control DFCSJ-OEM-RF (RF

only)

LVS Lutron Vive Integral Fixture Control DFCSJ-OEM-OCC (RF

with daylight and occupancy sensing)

Example: MPS4–40ML–CW–EDU

Lens Distribution

C Curve, Frosted

Acrylic

F Flat, Frosted

Acrylic

NL Less Lens CP Curve, Frosted

Polycarbonate

14,15

16,17

16

18, 20

18,19, 20

5

N Narrow Distribution W Wide Distribution

16

18,19, 20

6

Accessories

S18 18" Stem, Canopy MPSCRK-C Continuous Row Kit, Curve

SS18 18" Swivel Stem—45° Swivel MPSCRK-F Continuous Row Kit, Flat

CM24SCF3-KIT 24” Adjustable Cable Mounting Kit, 3-wire feed

CM48SCF3-KIT 48” Adjustable Cable Mounting Kit, 3-wire feed

CM24NF-KIT Single Point Non-Feed Cable Mount with Canopy, Single - 24"

CM48NF-KIT Single Point Non-Feed Cable Mount with Canopy, Single - 48"

21

MPSWG2 2' Wire Guard

MPSWG4 4' Wire Guard, two Required for 8' Fixture

MPSCE Injection Molded ABS Material Curve Endcap

MPSCE-MB Injection Molded ABS Material Curve Endcap, Matte Black

CSHC Chain Hanger Assembly MPSFE Injection Molded ABS Material Flat Endcap

MPSZT Zip Tee Hanger - 1 ⁄" Spacer on T-Bar Ceiling MPSFE-MB Injection Molded ABS Material Flat Endcap, Matte Black

MPSTH Slide Tong Hanger

Notes: 1 For continuous row mounting, see Continuous Row Mount Example Guide on page 3 2 Not available with HE lumen packages

See SpectraSync and NX Availability Table on page 6

3 4 High ecacy versions designated with “HE” 5 Applicable to lens only 6 Only available with Curve, Frosted Acrylic lens 7 Not available in VL, XL, HE packages 8 DALIP only available when LVS, LVR or ODPG control options are selected 9 Delivered Emergency Lumens = ELL14 = 1210 lms 10 Not available in 2ft size or with thru wire on XL 4ft and 8ft 11 Emergency battery pack max ambient temperature: 25˚C 12 Only available with ﬁxed output driver

Page 2/10 Rev. 01/15/20

COL_MPS_S

© 2020 Columbia Lighting, a division of Hubbell Lighting, Inc. Speciﬁcations subject to change without notice. 701 Millennium Blvd • Greenville, SC 29607 / Tel 864.678.1000 / Website www.columbialighting.com

13 For emergency circuit control loads including sensors and wireless systems CSA certiﬁed to

UL 924. Not availble with ESD driver option. Universal voltage only. DTS with 2' cannot be combined with Controls or SpectraSync options. See page 10 for wiring diagram

NX In-Fixture Control Options:

14 Standard PAF when this option is chosen 15 Control Options include Injection Molded ABS End Cap 16 Only available with 0–10V dimming drivers (ED, ED1 & EDD) 17 Not available with surface mounting

Third-Party Control Options:

18 LVS, LVR and ODPG only available with DALIP driver option 19 VIVE is a trademark of Lutron Electronics Co., Inc 20 Not available with SpectraSync (2750T or 2765T)

Accessory Notes:

21 See Columbia Mounting Accessories page for additional options

DATE: LOCATION:

TYPE: PROJECT:

MPS

CATALOG #:

MULTIPURPOSE LINEAR

ORDERING GUIDE (CONTINUED)

CONTINUOUS ROW MOUNT EXAMPLE GUIDE

Continuous Row Length MPS4 MPS8 MPSCRK-* CM**SCF*-KIT CM**NF-KIT

12' — Option 1 1 1 1 1 1

12' — Option 2 3 0 2 1 1

16' — Option 1 0 2 1 1 1 16' — Option 2 2 1 2 1 2 32' — Option 1 0 4 3 2 1

32' — Option 2 2 3 4 2 1

Link to Columbia Mounting Accessories page

PRODUCT EXCEPTIONS & DETAILS

Driver options listed below are available for the outputs as shown.

DRIVER AVAILABILITY TABLE — 2'

VW MW MWHE LW LWHE ML HL

E x x x x x x x

ED x x x x x x x

ED1 x x x x x x x EDD x x x x x ESD x x x x x

LUT5 x x x x x LUTH x x x x x

347 x x x x x

DALIP x x x x x x x

XW XWHE VW VWHE MW MWHE LW LWHE ML MLHE HL HLHE VL XL

E x x x x x x x x x x x x x x

ED x x x x x x x x x x x x x x

ED1 x x x x x x x x x x x x x x EDD x x x x x x x x ESD x x x x x x x x

347 x x x x x x x x

LUT5 x x x x x x LUTH x x x x x x

DALIP x x x x x x x x x x x x x x

XL not available with thru wire

DRIVER AVAILABILITY TABLE — 4' & 8'

Size

2'

4'

8'

DRIVER AVAILABILITY TABLE — 4' & 8'

80 CRI

E/ED/ED1 ESDU ED347 EDD LUT

Lumen

Package

VW 35 40 35 40 35 40 35 40 35 40 MW 35 40 35 40 35 40 35 40 35 40

LW 35 40 35 40 35 40 35 40 35 40 ML 35 40 35 40 35 40 35 40 35 40

HL 30 35 30 35 30 35 30 35 30 35 XW 35 45 35 45 35 45 30 35 30 35 VW 35 45 35 45 35 45 30 35 30 35 MW 35 45 35 45 35 45 30 35 30 35

LW 35 45 35 45 35 45 30 35 30 35

ML 35 45 35 45 35 45 30 35 30 35

HL 35 40 35 40 35 40 25 30 30 35

VL 30 30 30 30 30 30 30 30 — —

X L* 25 25 25 25 25 25 25 25 — — XW 35 45 35 45 35 45 30 35 30 35 VW 35 45 35 45 35 45 30 35 30 35 MW 35 45 35 45 35 45 30 35 30 35

LW 35 45 35 45 35 45 30 35 30 35

ML 35 45 35 45 35 45 30 35 30 35

VL 30 30 30 30 30 30 30 30 — —

X L* 25 25 25 25 25 25 25 25 — —

Ceiling/ Surface

Mount

Pendant/

TH Mount

Ceiling/ Surface

Mount

Pendant/

TH Mount

Ceiling/ Surface

Mount

Pendant/

TH Mount

Ceiling/ Surface

Mount

Pendant/

TH Mount

Ceiling/ Surface

Mount

Pendant/

TH Mount

Page 3/10 Rev. 01/15/20 COL_MPS_S

© 2020 Columbia Lighting, a division of Hubbell Lighting, Inc. Speciﬁcations subject to change without notice. 701 Millennium Blvd • Greenville, SC 29607 / Tel 864.678.1000 / Website www.columbialighting.com

MPS

™

MULTIPURPOSE LINEAR

CONTROLS

NX Distributed Intelligence™ Lighting Controls:

Supports both indoor and outdoor applications in a variety of deployment options- wired, wireless, hybrid. Integrates with and enables a wide array of luminaires including those with SpectraSync™ Color Tuning Technology.

NX INTEGRATED CONTROLS REFERENCE

NX Option Sensor Networkable Scheduling Occupancy

Daylight

Harvesting

NX Standalone

NXS NXSMP-SMI No Ye s Yes Yes Yes Ye s Ye s

NX Networked – Wired

NXE N/A Ye s Ye s No No Ye s Ye s Requires NXBTC/R

NXES NXSMP-SMI Ye s Yes Ye s Ye s Ye s Ye s Ye s

NX Networked – Wireless

NXSW NXSMP-SMI Ye s Ye s Ye s Ye s Ye s Ye s Ye s

NXWE N/A Ye s Yes No No Ye s Ye s No

1 NXBTC/R needs to be plugged into an available NX SmartPORT™ on the ﬁxture network 2 To program NXWE option, need to consult factory. If connected to an area controller, programming can be done from that

0–10V

Dimming

On/o

Control

Bluetooth® App

Programming

1

2

Philips EasySense Controls ODPG Sensor:

• Occupancy sensing, daylight harvesting, task tuning and grouping in one device

• Standalone control or grouping to wireless switches

• Uses Philips ﬁeld apps for on site commissioning

• Ability to create scenes for various room conﬁgurations

• Cost-eective solution for energy-savings and code-compliancy strategies

•

DLC® Qualiﬁed:

Listed on the QPL for Networked Lighting Controls. Please refer

to the DLC website for speciﬁc product qualiﬁcations at www.designlights.org

1 Wireless switches only compatible with ODPG Philips EasySense 2

See link to Philips commssioning

3

Requires android device or IR dongle. See links for phone compatiblity and IR dongle

1

2,3

Wireless Switch Accessories

PESR-WH EasySense compatible

wireless single rocker switch, white

PEDR-WH EasySense compatible

wireless dual rocker switch, white

1

Page 4/10 Rev. 01/15/20 COL_MPS_S

© 2020 Columbia Lighting, a division of Hubbell Lighting, Inc. Speciﬁcations subject to change without notice. 701 Millennium Blvd • Greenville, SC 29607 / Tel 864.678.1000 / Website www.columbialighting.com

DATE: LOCATION:

Color Tuning Technology

™

Color Tuning Technology

Color Tuning Prole

Black (HOT)

TUNE +)

Grey/White (WHITE TUNE -)

TYPE: PROJECT:

MPS

CATALOG #:

MULTIPURPOSE LINEAR

CONTROLS (CONTINUED)

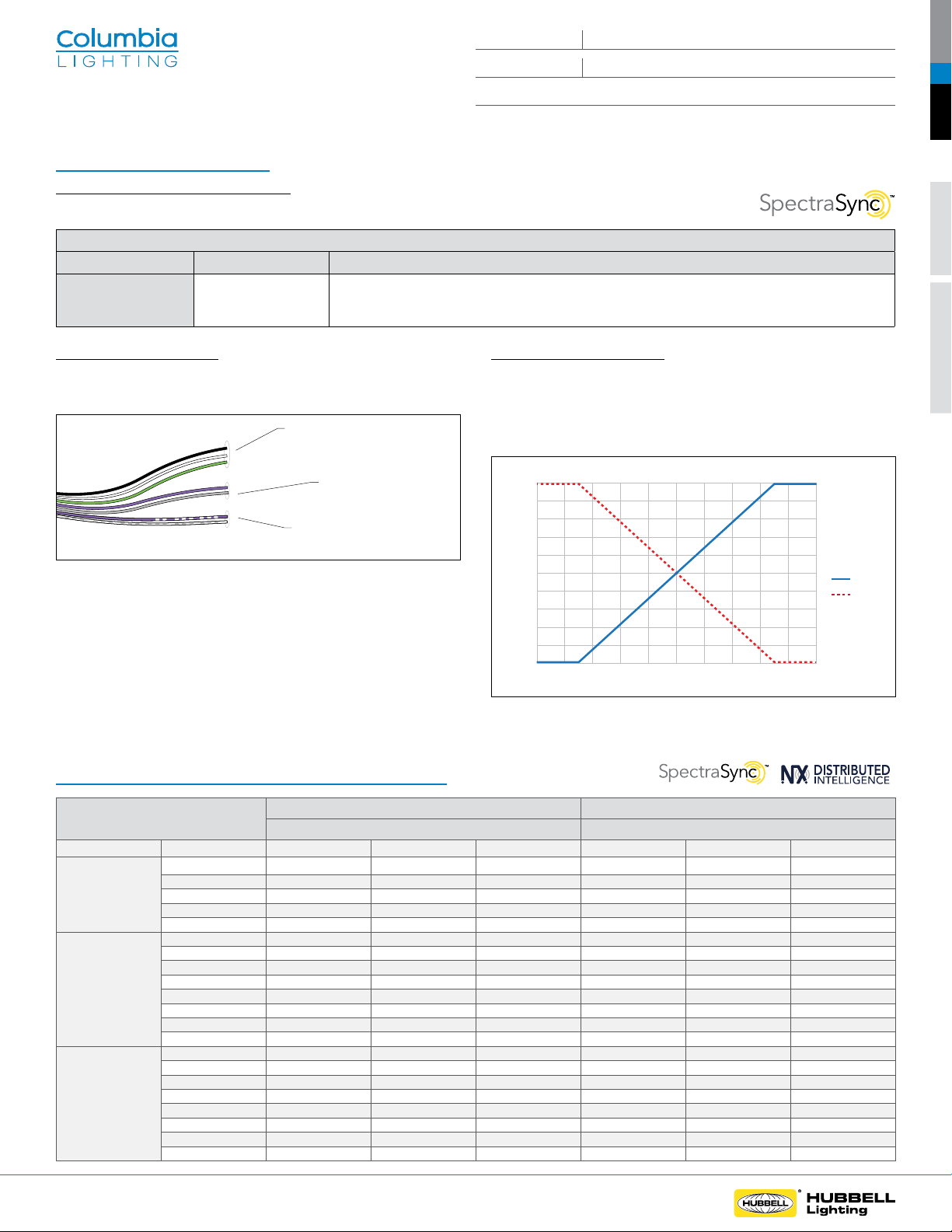

SpectraSync™ Color Tuning Technology:

Control your space based on the needs of the application, speciﬁc activities throughout the day and preferences of the occupants with distinct SpectraSync™ Color Tuning Technologies.

SPECTRASYNC COLOR TUNING TECHNOLOGY

Mode Kelvin Range Description

Tunable White

2700K–5000K 2700K–6500K

SpectraSync Tunable White

Available in two options: 2750T (2700K–5000K) or 2765T (2700K–6500K). Requires two 0–10V controllers, one for intensity and one for CCT. Minimum 5% dimming.

SpectraSync Tunable White luminaires are provided with two 0–10V circuits. The violet and grey circuit is for wiring to any qualiﬁed 0–10V controller for dimming. The violet/white and grey/white circuit is for wiring to any qualiﬁed 0–10V controller for Tunable White CCT control.

Oers users the ability to tailor CCT to their personal preference, enhancing task visibility, material and colors or the aesthetics of the space

Controller Manufacturer Data

SpectraSync Tunable White was designed to be used with sinking style dimmers (provided by others) and is compatible with:

• Hubbell Control Solutions (HCS): NX Distributed Intelligence™ Room Controllers (NXRC) and In-ﬁxture Controllers (NXFM)

• Lutron: DVTV, DVSTV, and NFTV dimmers

White (NEUTRAL)

• Wattstopper: ADF120277 and CD4BL (Titan) dimmers

Green (GROUND)

Violet (DIMMING +) Grey (DIMMING -)

Violet/White (WHITE

100%

90%

80%

70%

60%

50%

40%

30%

Output (% of total driver current)

20%

10%

0%

012345678910

To enable scheduling and for use with NX wall control preset stations please refer to Hubbell Control Solutions NX SpectraSync technical sheet.

Channel 1

Channel 2

Control Input (Vdc)

SPECTRASYNC™ AND NX AVAILABILITY TABLE

Size Lumen package CTC NX CTC+NX CTC NX CTC+NX

VW Y Y N — — — MW Y Y N — — —

LW Y Y N — — — ML N Y N — — —

HL N Y N — — — XW Y Y Y Y Y Y VW Y Y Y Y Y Y MW Y Y Y Y Y Y

LW Y Y Y Y Y Y

ML Y Y Y Y Y Y

HL Y Y Y Y Y Y

VL N Y N N Y N

XL N Y N N Y N XW Y Y Y Y Y Y VW Y Y Y Y Y Y MW N Y N N Y N

LW N Y N N Y N ML N Y N N Y N HL N Y N N Y N

VL N Y N N Y N

XL N Y N N Y N

© 2020 Columbia Lighting, a division of Hubbell Lighting, Inc. Speciﬁcations subject to change without notice. 701 Millennium Blvd • Greenville, SC 29607 / Tel 864.678.1000 / Website www.columbialighting.com

Page 5/10 Rev. 01/15/20

COL_MPS_S

2ft

4ft

8ft

Only With 80 CRI Only With 80 CRI

No Battery Pack With Battery Pack

DATE: LOCATION:

TYPE: PROJECT:

MPS

MULTIPURPOSE LINEAR

DELIVERED LUMENS

FIXTURE COLOR LENS DISTRIBUTION LUMENS INPUT WATTS LPW

MPS2-VW

MPS2-MW

MPS2-LW

MPS2-ML

MPS2-HL

MPS4-XW

MPS4-VW

MPS4-MW

MPS4-LW

3500K

4000K

3500K

4000K

3500K

4000K

3500K

4000K

3500K

4000K

3500K

4000K

3500K

4000K

3500K

4000K

3500K

4000K

CATALOG #:

STANDARD EFFICACY PERFORMANCE TABLE

Curve

Flat Wide 1584 13.5 117

No Lens 1724 13.8 125

Curve

Flat Wide 1604 13.5 119

No Lens 1746 13.8 127

Curve

Flat Wide 2076 17.8 117

No Lens 2287 18.2 126

Curve

Flat Wide 2102 17.8 118

No Lens 2316 18.2 127

Curve

Flat Wide 2309 19.9 116

No Lens 2540 20.4 124

Curve

Flat Wide 2338 19.9 118

No Lens 2572 20.4 126

Curve

Flat Wide 3414 28.8 119

No Lens 3587 29 124

Curve

Flat Wide 3458 28.8 120

No Lens 3632 29 125

Curve

Flat Wide 3678 31.5 117

No Lens 3797 31.7 120

Curve

Flat Wide 3725 31.5 118

No Lens 3846 31.7 121

Curve

Flat Wide 2463 20 123

No Lens 2674 20 134

Curve

Flat Wide 2494 20 125

No Lens 2708 20 135

Curve

Flat Wide 3134 26.5 118

No Lens 3450 26.7 129

Curve

Flat Wide 3174 26.5 120

No Lens 3564 26.7 133

Curve

Flat Wide 3491 3 0.1 116

No Lens 3847 30.4 127

Curve

Flat Wide 3535 30.1 117

No Lens 3974 30.4 131

Curve

Flat Wide 4072 32.5 125

No Lens 4255 34.4 124

Curve

Flat Wide 4124 32.5 127

No Lens 4395 34.4 128

Wide 1659 13.8 120

Narrow 1597 13.5 118

Wide 1681 13.8 122

Narrow 1618 13.5 120

Wide 2201 18.2 121

Narrow 2092 17.8 118

Wide 2229 18.2 122

Narrow 2119 17.8 119

Wide 2444 20.4 120

Narrow 2328 19.9 117

Wide 2475 20.4 121

Narrow 2358 19.9 118

Wide 3452 29 119

Narrow 3447 28.8 120

Wide 3496 29 121

Narrow 3491 28.8 121

Wide 3655 31.7 115

Narrow 3707 31.5 118

Wide 3701 31.7 117

Narrow 3754 31.5 119

Wide 2574 20 129

Narrow 2574 20 129

Wide 2606 20 130

Narrow 2574 20 129

Wide 3279 26.7 123

Narrow 3152 26.5 119

Wide 3321 26.7 124

Narrow 3192 26.5 120

Wide 3656 30.4 120

Narrow 3511 30.1 117

Wide 3702 30.4 122

Narrow 3556 30.1 118

Wide 4043 34.4 118

Narrow 4094 32.5 126

Wide 4095 34.4 119

Narrow 4147 32.5 128

Page 6/10 Rev. 01/15/20

COL_MPS_S

© 2020 Columbia Lighting, a division of Hubbell Lighting, Inc. Speciﬁcations subject to change without notice. 701 Millennium Blvd • Greenville, SC 29607 / Tel 864.678.1000 / Website www.columbialighting.com

DATE: LOCATION:

TYPE: PROJECT:

MPS

MULTIPURPOSE LINEAR

DELIVERED LUMENS (CONTINUED)

FIXTURE COLOR LENS DISTRIBUTION LUMENS INPUT WATTS LPW

3500K

MPS4-ML

4000K

3500K

MPS4-HL

4000K

3500K

MPS4-VL

4000K

3500K

MPS4-XL

4000K

3500K

MPS8-XW

4000K

3500K

MPS8-VW

4000K

3500K

MPS8-MW

4000K

3500K

MPS8-LW

4000K

3500K

MPS8-ML

4000K

CATALOG #:

STANDARD EFFICACY PERFORMANCE TABLE

Curve

Flat Wide 4625 37.8 122

No Lens 4794 40 .1 120

Curve

Flat Wide 4684 37.8 124

No Lens 4952 40.1 123

Curve Wide 5760 49.5 116

Flat Wide 5741 49.4 116

No Lens 6061 49.5 122

Curve

Flat Wide 5814 49.4 118

No Lens 6261 49.5 126

Curve

Flat Wide 6637 54.1 123

No Lens 7122 54.1 132

Curve

Flat Wide 6722 54.1 124

No Lens 7357 54.1 136

Curve

Flat Wide 7813 66.9 117

No Lens 8466 66.5 127

Curve

Flat Wide 7913 66.9 118

No Lens 8745 66.5 132

Curve

Flat Wide 4925 40 123

No Lens 5348 40 134

Curve

Flat Wide 4988 40 125

No Lens 5416 40 135

Curve

Flat Wide 6269 53 118

No Lens 6814 53.4 128

Curve

Flat Wide 6349 53 120

No Lens 6901 53.4 129

Curve

Flat Wide 6981 60.2 116

No Lens 7596 60.8 125

Curve

Flat Wide 7071 60.2 117

No Lens 7693 60.8 127

Curve

Flat Wide 8144 65 125

No Lens 8402 68.8 122

Curve

Flat Wide 8248 65 127

No Lens 8510 68.8 124

Curve

Flat Wide 9250 75.6 122

No Lens 9466 80.2 118

Curve

Flat Wide 9368 75.6 124

No Lens 9587 80.2 120

Wide 4556 40.1 114

Narrow 4649 3 7.7 123

Wide 4614 40.1 115

Narrow 4709 3 7.7 125

Narrow 5781 49.4 117

Wide 5833 49.5 118

Narrow 5855 49.4 119

Wide 6769 54.1 125

Narrow 6675 54.1 123

Wide 6855 54.1 127

Narrow 6760 54.1 125

Wide 8045 66.5 121

Narrow 7878 66.8 118

Wide 8148 66.5 123

Narrow 7979 66.8 119

Wide 5147 40 129

Narrow 4939 39.8 124

Wide 5213 40 130

Narrow 5002 39.8 126

Wide 6558 53.4 123

Narrow 6303 53 119

Wide 6642 53.4 124

Narrow 6384 53 120

Wide 7311 60.8 120

Narrow 7022 60.2 117

Wide 7405 60.8 122

Narrow 7112 60.2 118

Wide 8087 68.8 118

Narrow 8189 65 126

Wide 8190 68.8 119

Narrow 8293 65 128

Wide 9111 80.2 114

Narrow 9298 75.4 123

Wide 9227 80.2 115

Narrow 9417 75.4 125

Page 7/10 Rev. 01/15/20

COL_MPS_S

© 2020 Columbia Lighting, a division of Hubbell Lighting, Inc. Speciﬁcations subject to change without notice. 701 Millennium Blvd • Greenville, SC 29607 / Tel 864.678.1000 / Website www.columbialighting.com

DATE: LOCATION:

TYPE: PROJECT:

MPS

MULTIPURPOSE LINEAR

DELIVERED LUMENS (CONTINUED)

FIXTURE COLOR LENS DISTRIBUTION LUMENS INPUT WATTS LPW

3500K

MPS8-HL

4000K

3500K

MPS8-VL

4000K

3500K

MPS8-XL

4000K

CATALOG #:

STANDARD EFFICACY PERFORMANCE TABLE

Curve

Flat Wide 11481 98.8 116

No Lens 11969 99 121

Curve

Flat Wide 11628 98.8 118

No Lens 12122 99 122

Curve

Flat Wide 13275 108.2 123

No Lens 14065 108.2 130

Curve

Flat Wide 13444 108.2 124

No Lens 14245 108.2 132

Curve

Flat Wide 15626 133.8 117

No Lens 16718 133 126

Curve

Flat Wide 15826 133.8 118

No Lens 16932 133 127

Wide 11520 99 116

Narrow 11562 98.8 117

Wide 11667 99 118

Narrow 11710 98.8 119

Wide 13537 108.2 125

Narrow 13350 108.2 123

Wide 13710 108.2 127

Narrow 13521 108.2 125

Wide 16091 133 121

Narrow 15757 133.6 118

Wide 16296 133 123

Narrow 15958 133.6 119

DIMENSIONS

MPS END View - Curve Lens MPS END View - FLAT Lens

2.56"

(65.02mm)

3.06"

(77.7mm)

MPS 2' Dimensions

22"

(558.8mm)

20"

(508mm)

16.5"

(419.1mm)

1.25"

Surface Mount Slots

(31.8mm)

3.11"

(79mm)

2.56"

(65.02mm)

2.44"

(62mm)

MPS 4' Dimensions

46"

(1168.4mm)

40.5"

(1028.7mm)

1.25"

(31.8mm)

3"

(76.2mm)

44"

(1117.6mm)

Surface Mount Slots

24.06"

(611.1mm)

Page 8/10 Rev. 01/15/20 COL_MPS_S

48.06"

(1220.7mm)

© 2020 Columbia Lighting, a division of Hubbell Lighting, Inc. Speciﬁcations subject to change without notice. 701 Millennium Blvd • Greenville, SC 29607 / Tel 864.678.1000 / Website www.columbialighting.com

DATE: LOCATION:

01

04

90

75

60

0.0 45.0 90.0

04

0.0 45.0 90.0

TYPE: PROJECT:

MPS

MULTIPURPOSE LINEAR

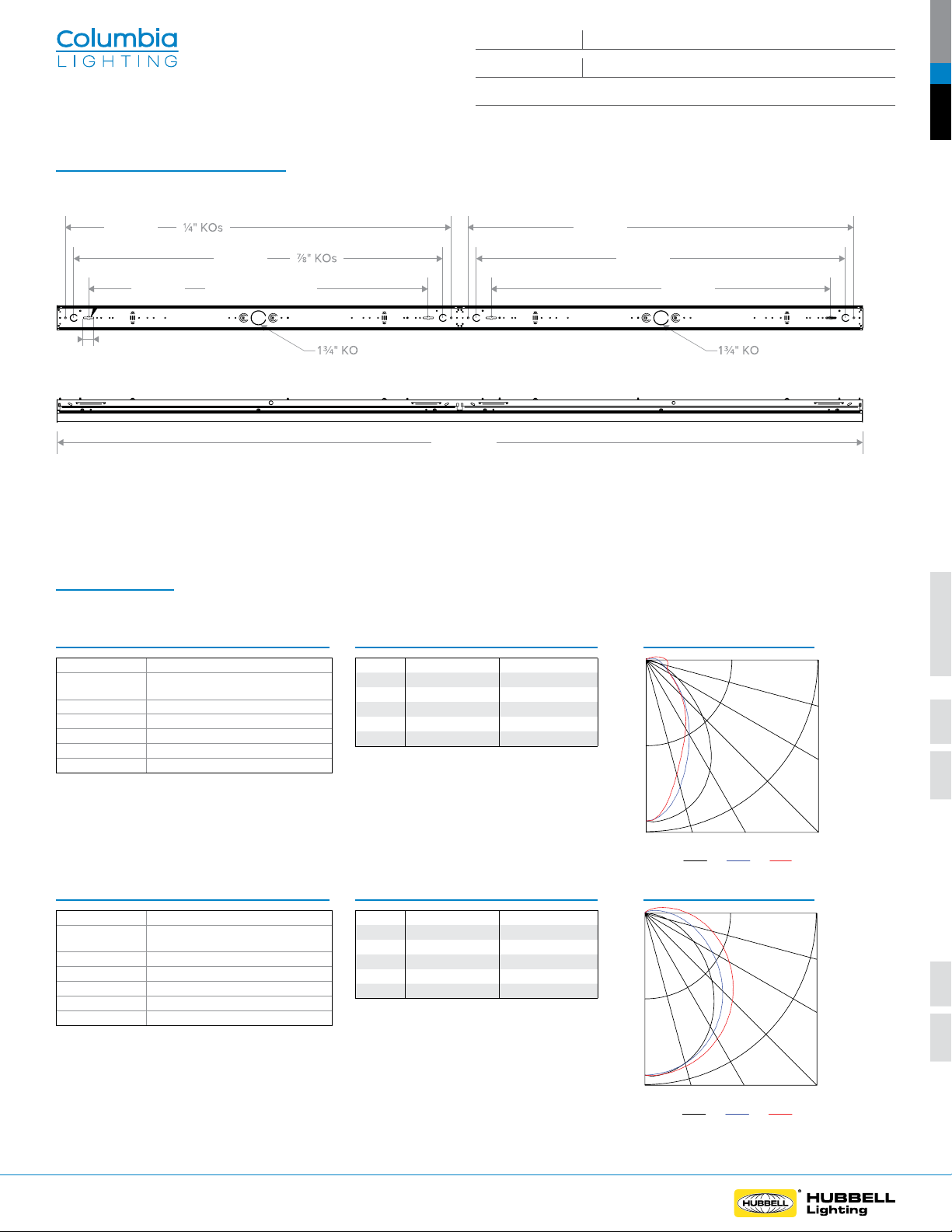

DIMENSIONS (CONTINUED)

MPS 8' Dimensions

46"

(1168.4mm)

44"

(1117.6mm)

40.5"

(1028.7mm)

1.25"

(31.8mm)

Surface Mount Slots

CATALOG #:

46"

(1168.4mm)

44"

(1117.6mm)

40.5"

(1028.7mm)

96.06"

(2439.9mm)

PHOTOMETRY

MPS440MLCNEDU

LUMINAIRE DATA

Test No. 19735

Description

Delivered Lumens 4742 Watts 37.70 Ecacy 126 Mounting Surface Spacing Criterion 0º = 1.1890º = 1.77

MultiPurpose Linear, Narrow, LED 4ft, Frosted Linear Prismed Lens

MPS440MLCWEDU

LUMINAIRE DATA

Test No. 19600

Description

Delivered Lumens 4615 Watts 40.10 Ecacy 115 Mounting Surface Spacing Criterion 0º = 1.2090º = 1.33

MultiPurpose Linear, Wide, LED 4ft, Frosted Linear Prismed Lens

ZONAL LUMEN SUMMARY

Zone Lumens % Luminaire

0–30 1542 32.5 0–40 2326 4 9.1 0–60 3518 74.2 0–90 4385 92.5 0–180 4742 100

ZONAL LUMEN SUMMARY

Zone Lumens % Luminaire

0–30 1029 22.3 0–40 1688 36.6 0–60 3019 65.4 0–90 4248 92 0–180 4615 100

POLAR GRAPH

1300

2600

53

Horiz 0-180

POLAR GRAPH

700

5

90

75

60

Page 9/10 Rev. 01/15/20 COL_MPS_S

1400

0153

© 2020 Columbia Lighting, a division of Hubbell Lighting, Inc. Speciﬁcations subject to change without notice. 701 Millennium Blvd • Greenville, SC 29607 / Tel 864.678.1000 / Website www.columbialighting.com

Horiz 0-180

5

DATE: LOCATION:

04

0.0 45.0 90.0

TYPE: PROJECT:

MPS

MULTIPURPOSE LINEAR

PHOTOMETRY (CONTINUED)

MPS440MLFWEDU

LUMINAIRE DATA

Test No. 19652

Description

Delivered Lumens 4685 Watts 37.80 Ecacy 124 Mounting Surface Spacing Criterion 0º = 1.2490º = 1.67

ADDITIONAL INFORMATION

MultiPurpose Linear, Wide, LED 4ft, Frosted Linear Prismed Lens

CATALOG #:

ZONAL LUMEN SUMMARY

Zone Lumens % Luminaire

0–30 1026 21.9 0–40 1756 37.5 0–60 3324 70.9 0–90 4435 94.7 0–180 4685 100

POLAR GRAPH

700

1400

0153

Horiz 0-180

90

75

60

5

DTS WIRING DIAGRAM 010V DIMMING DRIVER SHOWN

POWER

YELLOW (#5)

ORANGE

WHITE / BLUE

BLUE

BLACK

WHITE

RED

VIOLET

GRAY

TEST UTILITY POWER

SMALL YELLOW (CAP)

EMERGENCY

WHITE

BLACK

DRIVER

GRAY

VIOLET

WHITE/BLUE Emergency Neutral BLUE Emergency Line BLACK Utility Line (Unswitched Hot) WHITE Utility Neutral RED Switched Hot VIOLET Dimming GRAY Dimming

All product and company names, logos and product identiﬁers are trademarks ™ or registered trademarks ® of Hubbell Lighting, Inc. or their respective owners. Use of them does not necessarily imply any aliation with or endorsement by such respective owners.

Page 10/10 Rev. 01/15/20

COL_MPS_S

© 2020 Columbia Lighting, a division of Hubbell Lighting, Inc. Speciﬁcations subject to change without notice. 701 Millennium Blvd • Greenville, SC 29607 / Tel 864.678.1000 / Website www.columbialighting.com
