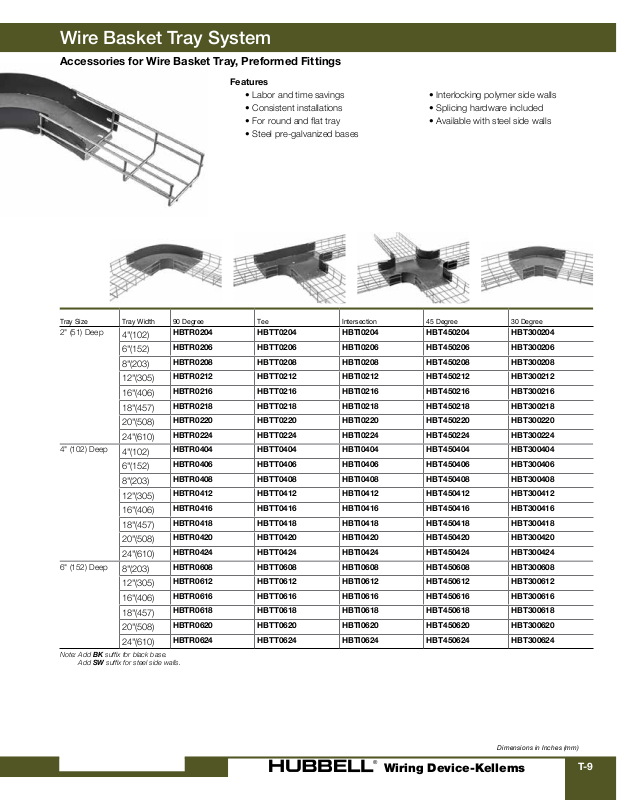

Wire Basket Tray System
Accessories for Wire Basket Tray, Preformed Fittings
Features
• Labor and time savings
• Consistent installations
• For round and at tray
• Steel pre-galvanized bases
Tray Size Tray Width 90 Degree Tee Intersection 45 Degree 30 Degree
2" (51) Deep
4"(102)
6"(152)
8"(203)
12"(305)
16"(406)
18"(457)
20"(508)
24"(610)
4" (102) Deep
4"(102)
6"(152)
8"(203)
12"(305)
16"(406)
18"(457)
20"(508)
24"(610)
6" (152) Deep
8"(203)
12"(305)
16"(406)
18"(457)
20"(508)
24"(610)
Note: Add BK suffix for black base.
Add SW suffix for steel side walls.
HBTR0204 HBTT0204 HBTI0204 HBT450204 HBT300204
HBTR0206 HBTT0206 HBTI0206 HBT450206 HBT300206
HBTR0208 HBTT0208 HBTI0208 HBT450208 HBT300208
HBTR0212 HBTT0212 HBTI0212 HBT450212 HBT300212
HBTR0216 HBTT0216 HBTI0216 HBT450216 HBT300216
HBTR0218 HBTT0218 HBTI0218 HBT450218 HBT300218
HBTR0220 HBTT0220 HBTI0220 HBT450220 HBT300220
HBTR0224 HBTT0224 HBTI0224 HBT450224 HBT300224
HBTR0404 HBTT0404 HBTI0404 HBT450404 HBT300404
HBTR0406 HBTT0406 HBTI0406 HBT450406 HBT300406
HBTR0408 HBTT0408 HBTI0408 HBT450408 HBT300408
HBTR0412 HBTT0412 HBTI0412 HBT450412 HBT300412
HBTR0416 HBTT0416 HBTI0416 HBT450416 HBT300416
HBTR0418 HBTT0418 HBTI0418 HBT450418 HBT300418
HBTR0420 HBTT0420 HBTI0420 HBT450420 HBT300420
HBTR0424 HBTT0424 HBTI0424 HBT450424 HBT300424
HBTR0608 HBTT0608 HBTI0608 HBT450608 HBT300608
HBTR0612 HBTT0612 HBTI0612 HBT450612 HBT300612
HBTR0616 HBTT0616 HBTI0616 HBT450616 HBT300616
HBTR0618 HBTT0618 HBTI0618 HBT450618 HBT300618
HBTR0620 HBTT0620 HBTI0620 HBT450620 HBT300620
HBTR0624 HBTT0624 HBTI0624 HBT450624 HBT300624
• Interlocking polymer side walls
• Splicing hardware included
• Available with steel side walls
Dimensions in Inches (mm)
T-9
