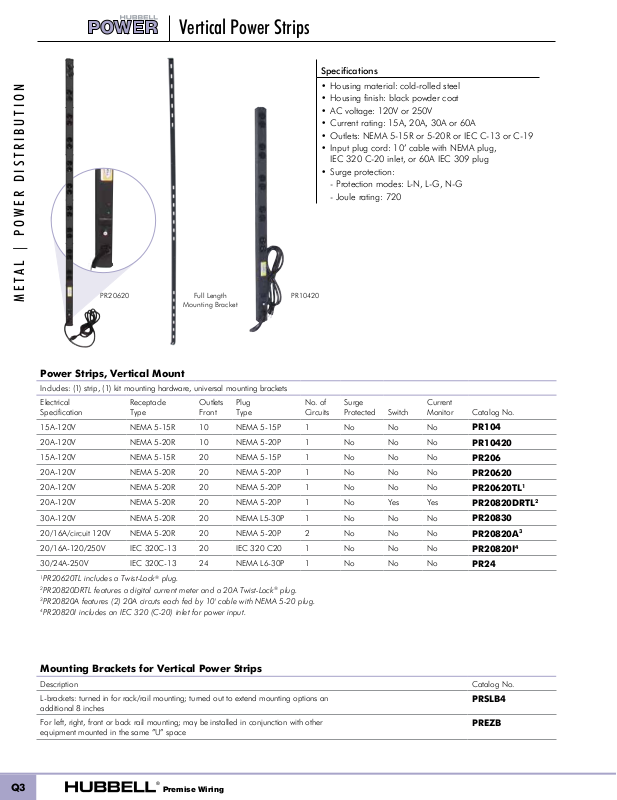

Hubbell Vertical Power Strips Catalog Page
Premise Wiring
®
METAL | POWER DISTRIBUTION
Vertical Power Strips
Specifications
• Housing material: cold-rolled steel
• Housing finish: black powder coat
• AC voltage: 120V or 250V
• Current rating: 15A, 20A, 30A or 60A
• Outlets: NEMA 5-15R or 5-20R or IEC C-13 or C-19
• Input plug cord: 10’ cable with NEMA plug,
IEC 320 C-20 inlet, or 60A IEC 309 plug
• Surge protection:
- Protection modes: L-N, L-G, N-G
- Joule rating: 720
PR20620 Full Length
Mounting Bracket
PR10 420
Power Strips, Vertical Mount
Includes: (1) strip, (1) kit mounting hardware, universal mounting brackets
Electrical
Specification
15A-120V NEMA 5-15R 10 NEMA 5-15P 1 No No No
20A-120V NEMA 5-20R 10 NEMA 5-20P 1 No No No
15A-120V NEMA 5-15R 20 NEMA 5-15P 1 No No No
20A-120V NEMA 5-20R 20 NEMA 5-20P 1 No No No
20A-120V NEMA 5-20R 20 NEMA 5-20P 1 No No No
20A-120V NEMA 5-20R 20 NEMA 5-20P 1 No Yes Yes
30A-120V NEMA 5-20R 20 NEMA L5-30P 1 No No No
20/16A/circuit 120V NEMA 5-20R 20 NEMA 5-20P 2 No No No
20/16A-120/250V IEC 320C-13 20 IEC 320 C20 1 No No No
30/24A-250V IEC 320C-13 24 NEMA L6-30P 1 No No No
1
PR20620TL includes a Twist-Lock® plug.
2
PR20820DRTL features a digital current meter and a 20A Twist-Lock® plug.
3
PR20820A features (2) 20A circuts each fed by 10' cable with NEMA 5-20 plug.
4
PR20820I includes an IEC 320 (C-20) inlet for power input.
Receptacle
Type
Outlets
Front
Plug
Type
No. of
Circuits
Surge
Protected Switch
Current
Monitor Catalog No.
PR104
PR10420
PR206
PR20620
PR20620TL
PR20820DRTL
PR20830
PR20820A
PR20820I
PR24
1
2
3
4
Mounting Brackets for Vertical Power Strips
Description Catalog No.
L-brackets: turned in for rack/rail mounting; turned out to extend mounting options an
additional 8 inches
For left, right, front or back rail mounting; may be installed in conjunction with other
equipment mounted in the same ”U” space
Q3
PRSLB4
PREZB
