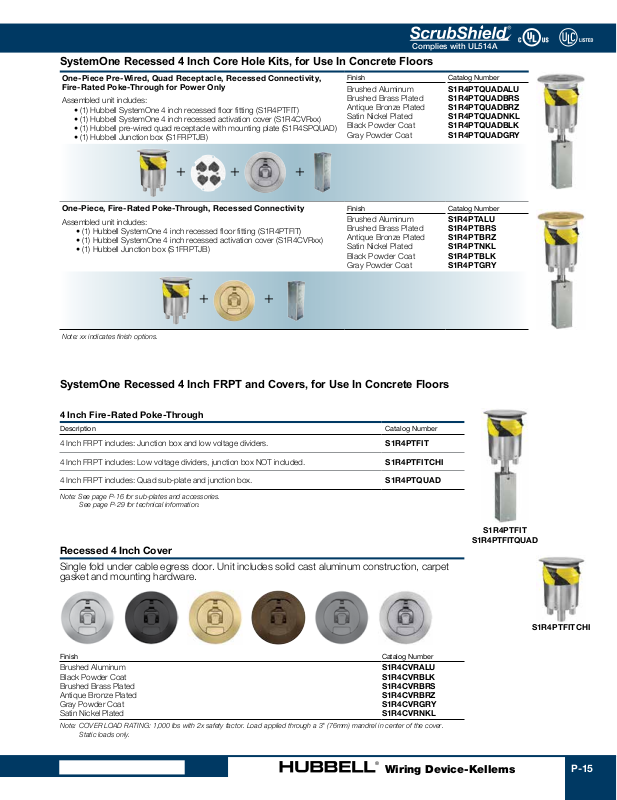

Hubbell SystemOne Catalog Page
Wiring Device-Kellems
®
Fire-Rated Poke-Throughs
Complies with UL514A
SystemOne Recessed 4 Inch Core Hole Kits, for Use In Concrete Floors
One-Piece Pre-Wired, Quad Receptacle, Recessed Connectivity,
Fire-Rated Poke-Through for Power Only
Assembled unit includes:
• (1) Hubbell SystemOne 4 inch recessed floor fitting (S1R4PTFIT)
• (1) Hubbell SystemOne 4 inch recessed activation cover (S1R4CVRxx)
• (1) Hubbell pre-wired quad receptacle with mounting plate (S1R4SPQUAD)
• (1) Hubbell Junction box (S1FRPTJB)
Finish
Brushed Aluminum
Brushed Brass Plated
Antique Bronze Plated
Satin Nickel Plated
Black Powder Coat
Gray Powder Coat
Catalog Number
S1R4PTQUADALU
S1R4PTQUADBRS
S1R4PTQUADBRZ
S1R4PTQUADNKL
S1R4PTQUADBLK
S1R4PTQUADGRY
+
+
One-Piece, Fire-Rated Poke-Through, Recessed Connectivity
Assembled unit includes:
• (1) Hubbell SystemOne 4 inch recessed floor fitting (S1R4PTFIT)
• (1) Hubbell SystemOne 4 inch recessed activation cover (S1R4CVRxx)
• (1) Hubbell Junction box (S1FRPTJB)
+
+
Finish
Brushed Aluminum
Brushed Brass Plated
Antique Bronze Plated
Satin Nickel Plated
Black Powder Coat
Gray Powder Coat
+
Note: xx indicates finish options.
SystemOne Recessed 4 Inch FRPT and Covers, for Use In Concrete Floors
4 Inch Fire-Rated Poke-Through
Description Catalog Number
4 Inch FRPT includes: Junction box and low voltage dividers. S1R4PTFIT
4 Inch FRPT includes: Low voltage dividers, junction box NOT included. S1R4PTFITCHI
Catalog Number
S1R 4PTALU
S1R4PTBRS
S1R4PTBRZ
S1R4PTNKL
S1R4PTBLK
S1R4PTGRY
4 Inch FRPT includes: Quad sub-plate and junction box. S1R4PTQUAD
Note: See page P-16 for sub-plates and accessories.
See page P-29 for technical information.
Recessed 4 Inch Cover
Single fold under cable egress door. Unit includes solid cast aluminum construction, carpet
gasket and mounting hardware.
Finish Catalog Number
Brushed Aluminum
Black Powder Coat
Brushed Brass Plated
Antique Bronze Plated
Gray Powder Coat
Satin Nickel Plated
Note: COVER LOAD RATING: 1,000 lbs with 2x safety factor. Load applied through a 3" (76mm) mandrel in center of the cover.
Static loads only.
S1R4CVR ALU
S1R4CVRBLK
S1R4CVRBRS
S1R4CVRBRZ
S1R4CVRGRY
S1R4CVRNKL
S1R4PTFIT
S1R4PTFITQUAD
S1R4PTFITCHI
P-15
