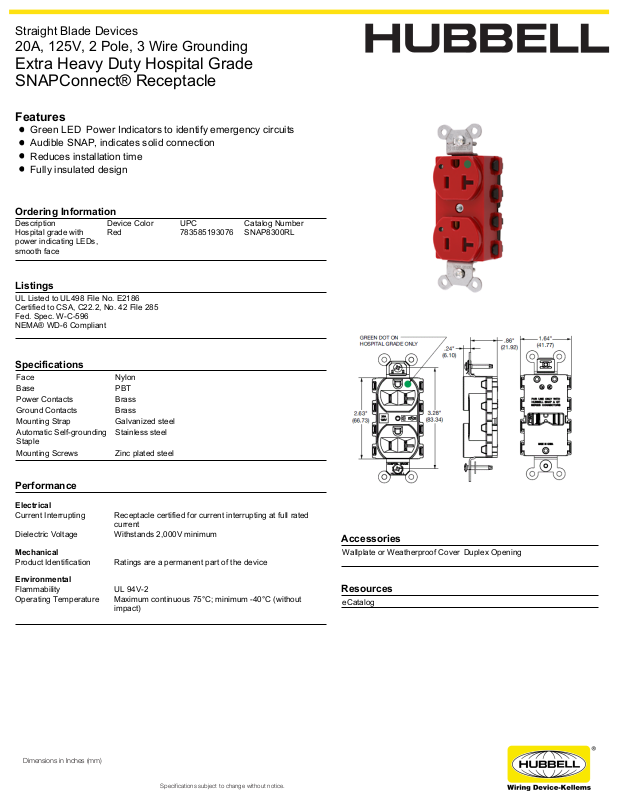

Hubbell SNAP8300RL Specifications
Straight Blade Devices
20A, 125V, 2 Pole, 3 Wire Grounding
Extra Heavy Duty Hospital Grade
SNAPConnect® Receptacle
Features
Green LED Power Indicators to identify emergency circuits
Audible SNAP, indicates solid connection
Reduces installation time
Fully insulated design
Ordering Information
Description Device Color UPC Catalog Number
Hospital grade with
power indicating LEDs,
smooth face
Listings
UL Listed to UL498 File No. E2186
Certified to CSA, C22.2, No. 42 File 285
Fed. Spec. W-C-596
NEMA® WD-6 Compliant
Red 783585193076 SNAP8300RL
Specifications
Face Nylon
Base PBT
Power Contacts Brass
Ground Contacts Brass
Mounting Strap Galvanized steel
Automatic Self-grounding
Staple
Mounting Screws Zinc plated steel
Stainless steel
Performance
Electrical
Current Interrupting Receptacle certified for current interrupting at full rated
Dielectric Voltage Withstands 2,000V minimum
Mechanical
Product Identification Ratings are a permanent part of the device
Environmental
Flammability UL 94V-2
Operating Temperature Maximum continuous 75°C; minimum -40°C (without
current
impact)
Accessories
Wallplate or Weatherproof Cover Duplex Opening
Resources
eCatalog
Dimensions in Inches (mm)
Specifications subject to change without notice.
