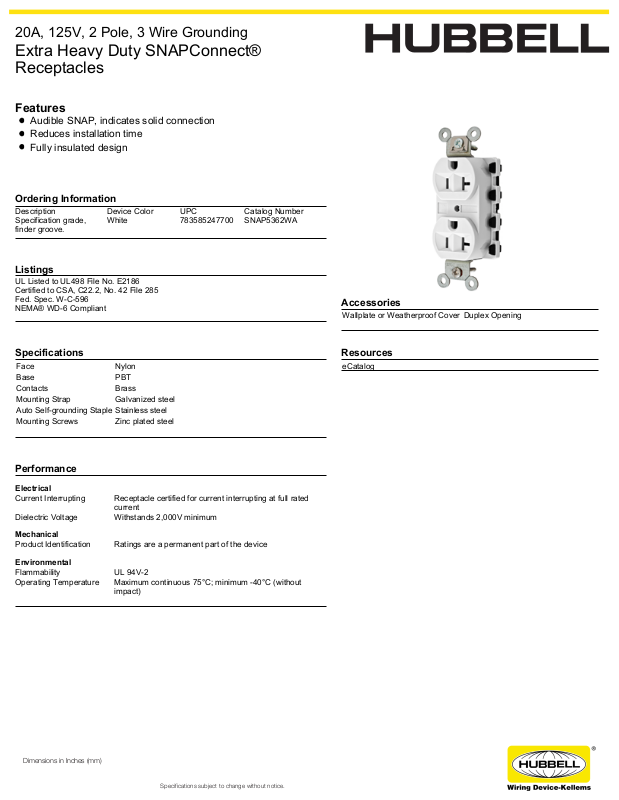

Hubbell SNAP5362WA Specifications

20A, 125V, 2 Pole, 3 Wire Grounding

Extra Heavy Duty SNAPConnect®
Receptacles

Features

Audible SNAP, indicates solid connection
Reduces installation time
Fully insulated design

Ordering Information

Description Device Color UPC Catalog Number
Specification grade,
finder groove.

Listings

UL Listed to UL498 File No. E2186
Certified to CSA, C22.2, No. 42 File 285
Fed. Spec. W-C-596
NEMA® WD-6 Compliant

White 783585247700 SNAP5362WA

Accessories

Wallplate or Weatherproof Cover Duplex Opening

Specifications

Face Nylon
Base PBT
Contacts Brass
Mounting Strap Galvanized steel
Auto Self-grounding Staple Stainless steel
Mounting Screws Zinc plated steel

Performance

Electrical

Current Interrupting Receptacle certified for current interrupting at full rated

current

Dielectric Voltage Withstands 2,000V minimum

Mechanical

Product Identification Ratings are a permanent part of the device

Environmental

Flammability UL 94V-2
Operating Temperature Maximum continuous 75°C; minimum -40°C (without

impact)

Resources

eCatalog

Dimensions in Inches (mm)

Specifications subject to change without notice.
