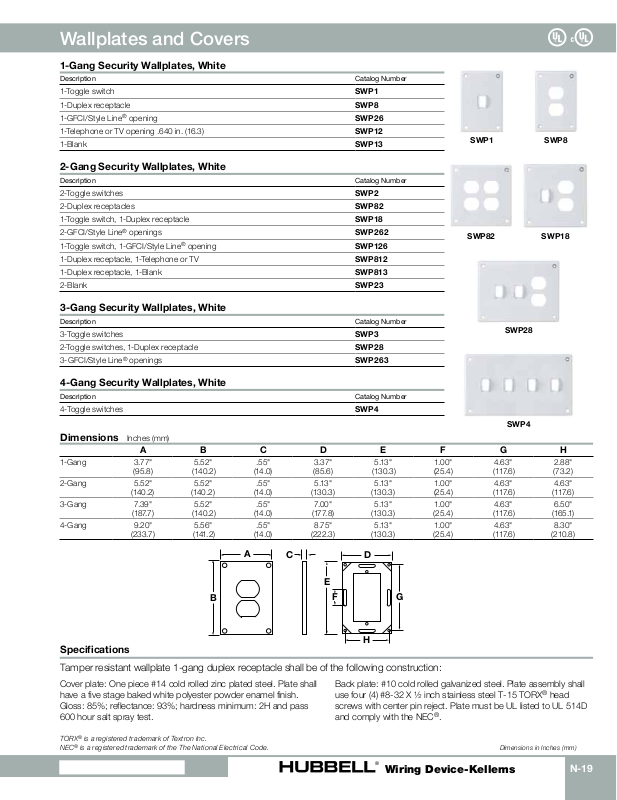

Hubbell Security Wallplates Catalog Page
Wallplates and Covers
A
D
H
C
1-Gang Security Wallplates, White
Description Catalog Number
1-Toggle switch SWP1
1-Duplex receptacle SWP8
®
1-GFCI/Style Line
1-Telephone or TV opening .640 in. (16.3) SWP12
1-B lank SWP13
2-Gang Security Wallplates, White
Description Catalog Number
2-Toggle switches SWP2
2-Duplex receptacles SWP82
1-Toggle switch, 1-Duplex receptacle SWP18
2-GFCI/Style Line
1-Toggle switch, 1-GFCI/Style Line
1-Duplex receptacle, 1-Telephone or TV SWP812
1-Duplex receptacle, 1-Blank SWP813
2-Blank SWP23
3-Gang Security Wallplates, White
Description Catalog Number
3-Toggle switches SWP3
2-Toggle switches, 1-Duplex receptacle SWP28
3-GFCI/Style Line
opening SWP26
®
openings SWP262
®
opening SWP126
®
openings SWP263
SWP1 SWP8
SWP82 SWP18
SWP28
4-Gang Security Wallplates, White
Description Catalog Number
4-Toggle switches SWP4
Dimensions Inches (mm)
A B C D E F G H
1-G ang 3.77"
(95.8)
2-Gang 5.52"
(140. 2)
3-Gang 7. 39 "
(18 7. 7 )
4-Gang 9.20"
(233.7)
5.52"
(140. 2)
5.52"
(140. 2)
5.52"
(140. 2)
5.56"
(141.2)
.55"
(14.0)
.55"
(14.0)
.55"
(14.0)
.55"
(14.0)
3.37"
(85.6)
5.13 "
(130.3)
7.0 0 "
(17 7. 8)
8.75"
(222.3)
5.13 "
(130.3)
5.13 "
(130.3)
5.13 "
(130.3)
5.13 "
(130.3)
E
B
F
Specifications
Tamper resistant wallplate 1-gang duplex receptacle shall be of the following construction:
Cover plate: One piece #14 cold rolled zinc plated steel. Plate shall
have a five stage baked white polyester powder enamel finish.
Gloss: 85%; reflectance: 93%; hardness minimum: 2H and pass
600 hour salt spray test.
Back plate: #10 cold rolled galvanized steel. Plate assembly shall
use four (4) #8-32 X ½ inch stainless steel T-15 TORX
screws with center pin reject. Plate must be UL listed to UL 514D
and comply with the NEC®.
SWP4
1.0 0"
(25.4)
1.0 0"
(25.4)
1.0 0"
(25.4)
1.0 0"
(25.4)
4.63"
(117. 6 )
4.63"
(117. 6 )
4.63"
(117. 6 )
4.63"
(117. 6 )
2.88"
(73.2)
4.63"
(117. 6 )
6.50"
(16 5 .1)
8.30"
(210.8)
G
®
head
TORX® is a registered trademark of Textron Inc.
NEC® is a registered trademark of the The National Electrical Code.
®
