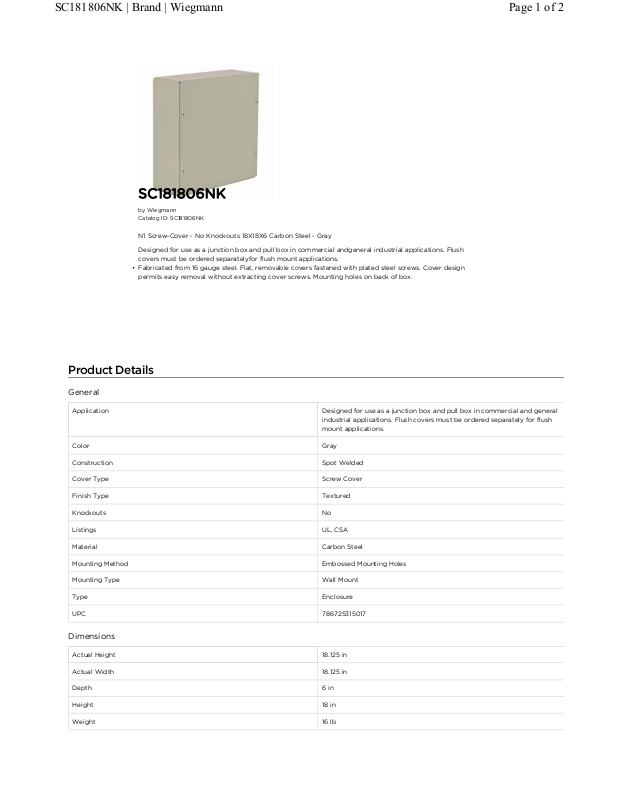

Hubbell SB18 Specifications
SC181806NK
n
byWiegmann
Catalog ID:SC181806NK
N1 Screw-Cover - No Knockouts 18X18X6 Carbon Steel - Gray
Designed for use as a junction box and pull box in commercial andgeneral industrial applications. Flush
covers must be ordered separatelyfor flush mount applications.
• Fabricated from 16 gauge steel. Flat, removable covers fastened with plated steel screws. Cover design
permits easy removal without extracting cover screws. Mounting holes on back of box.
Page 1 of 2SC181806NK | Brand | Wiegman
Product Details
General
Application Designed for use as a junction box and pull box in commercial and general
Color Gray
Construction Spot Welded
Cover Type Screw Cover
Finish Type Textured
Knockouts No
Listings UL, CSA
Material Carbon Steel
Mounting Method Embossed Mounting Holes
Mounting Type Wall Mount
Type Enclosure
UPC 786725315017
Dimensions
Actual Height 18.125 in
Actual Width 18.125 in
Depth 6 in
Height 18 in
Weight 16 lb
industrial applications. Flush covers must be ordered separately for flush
mount applications.
Width 18 in
n
Certifications and Compliance
Page 2 of 2SC181806NK | Brand | Wiegman
Certified Listed •UL
Nema Rating NEMA 1
UL Listed Yes
•CSA
