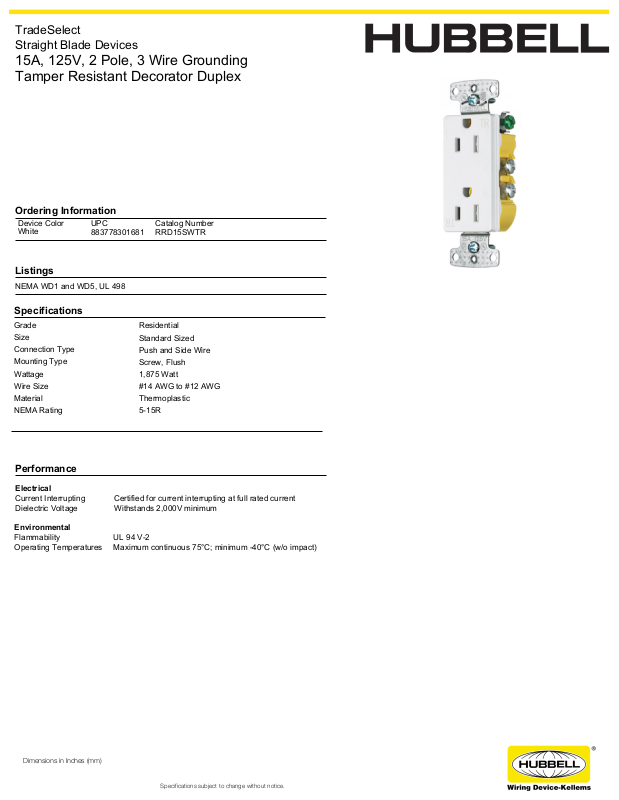

Hubbell RRD151WTR Specifications

TradeSelect

Straight Blade Devices

15A, 125V, 2 Pole, 3 Wire Grounding
Tamper Resistant Decorator Duplex

Ordering Information

Device Color UPC Catalog Number

White

Listings

NEMA WD1 and WD5, UL 498

Specifications

Grade

Size

Connection Type

Mounting Type

Wattage

Wire Size

Material

NEMA Rating

883778301681 RRD15SWTR

Residential

Standard Sized

Push and Side Wire

Screw, Flush

1,875 Watt

#14 AWG to #12 AWG

Thermoplastic

5-15R

Performance

Electrical

Current Interrupting
Dielectric Voltage

Environmental

Flammability
Operating Temperatures Maximum continuous 75°C; minimum -40°C (w/o impact)

Dimensions in Inches (mm)

Certified for current interrupting at full rated current
Withstands 2,000V minimum

UL 94 V-2

Specifications subject to change without notice.
