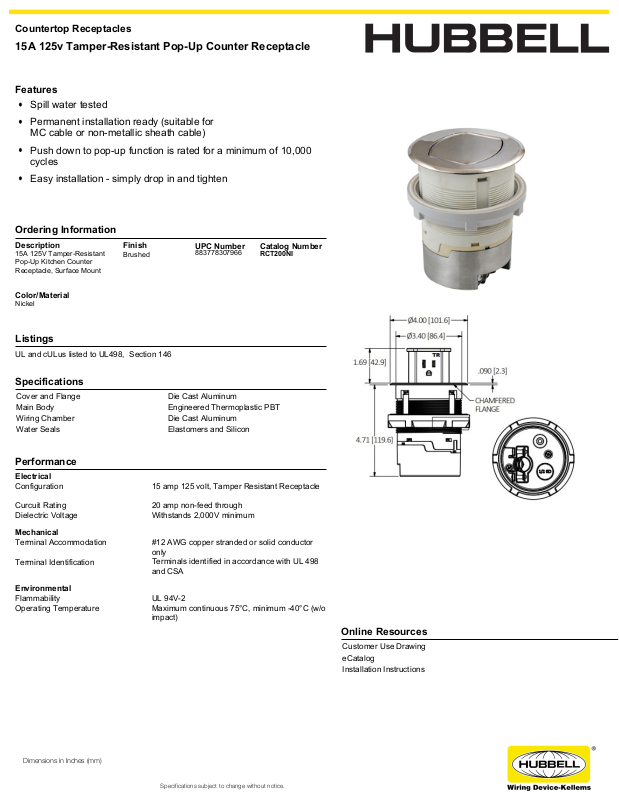

Hubbell RCT200NI Specifications

Countertop Receptacles

15A 125v Tamper-Resistant Pop-Up Counter Receptacle

Features

Spill water tested

Permanent installation ready (suitable for
MC cable or non-metallic sheath cable)

Push down to pop-up function is rated for a minimum of 10,000
cycles

Easy installation - simply drop in and tighten

Ordering Information

Description

15A 125V Tamper-Resistant
Pop-Up Kitchen Counter
Receptacle, Surface Mount

Color/Material

Nickel

Finish

Brushed

UPC Number Catalog Number

883778307966

RCT200NI

Listings

UL and cULus listed to UL498, Section 146

Specifications

Cover and Flange Die Cast Aluminum
Main Body Engineered Thermoplastic PBT
Wiring Chamber Die Cast Aluminum
Water Seals Elastomers and Silicon

Performance

Electrical

Configuration

Curcuit Rating
Dielectric Voltage

Mechanical

Terminal Accommodation

Terminal Identification

Environmental

Flammability
Operating Temperature

15 amp 125 volt, Tamper Resistant Receptacle

20 amp non-feed through
Withstands 2,000V minimum

#12 AWG copper stranded or solid conductor
only
Terminals identified in accordance with UL 498
and CSA

UL 94V-2
Maximum continuous 75°C, minimum -40°C (w/o
impact)

Online Resources

Customer Use Drawing
eCatalog
Installation Instructions

Dimensions in Inches (mm)

Specifications subject to change without notice.
