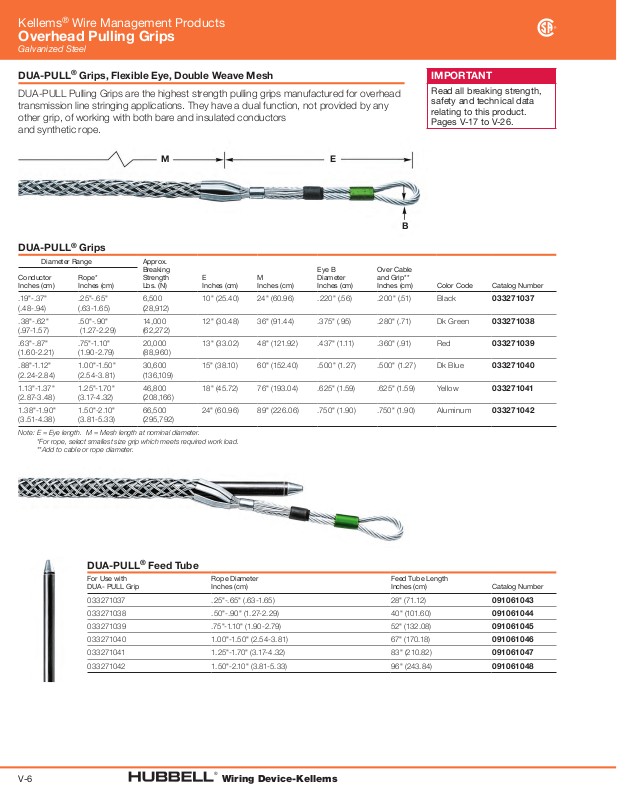

Hubbell Overhead Pulling Grips Catalog Page
Kellems® Wire Management Products
Overhead Pulling Grips
Galvanized Steel
DUA-PULL® Grips, Flexible Eye, Double Weave Mesh
DUA-PULL Pulling Grips are the highest strength pulling grips manufactured for overhead
transmission line stringing applications. They have a dual function, not provided by any
other grip, of working with both bare and insulated conductors
and synthetic rope.
M
E
DUA-PULL® Grips
Diameter Range Approx.
Conductor
Inches (cm)
.19"-.37"
(.48-.94)
.38"-.62"
(.97-1.57 )
.63"-.87"
(1.6 0 -2. 21)
.88"-1.12"
(2.24-2.84)
1.13"-1.37 "
(2 .87-3. 4 8 )
1.3 8"-1.90"
(3.51-4.38)
Note: E = Eye length. M = Mesh length at nominal diameter.
*For rope, select smallest size grip which meets required work load.
**Add to cable or rope diameter.
Rope*
Inches (cm)
.25"-.65"
(.63-1.65)
.50"-.90"
(1.27-2.29)
.75"-1.10 "
(1.90 - 2.79)
1.0 0"-1.50 "
(2. 54- 3.81)
1.25"-1.70"
(3.17-4.32)
1.50"-2.10"
(3.81-5.33)
Breaking
Strength
Lbs. (N)
6,500
(28,912)
14,000
(62,272)
20,000
(88,960)
30,600
(136 ,109)
46,800
(208,16 6)
66,500
(295,792)
E
Inches (cm)M Inches (cm)
10" (25.40) 24" (60.9 6) .220" (.56) .2 00" (.51) Black
12" (30.48) 36 " (91.4 4) .375" (.95) .280" (.71) Dk Green
13" (33.02) 48" (121.92) .4 37" (1.11) . 360" (.91) Red
15" (3 8 .10) 60" (152.40) .50 0 " (1. 27 ) .5 0 0" (1.27) Dk Blue
18" (45.72) 76" (193.04) .625" (1.59) .625" (1.59) Yellow
24" (60.96) 89" (226.06) .750" (1. 9 0) .75 0" (1.90 ) Aluminum
Eye B
Diameter
Inches (cm)
Over Cable
and Grip**
Inches (cm) Color Code Catalog Number
IMPORTANT
Read all breaking strength,
safety and technical data
relating to this product.
Pages V-17 to V-26.
B
033271037
033271038
033271039
033271040
03 3271041
033271042
V-6
DUA-PULL® Fe ed Tube
For Use with
DUA- PULL Grip
033271037 .25"-.65" (.6 3-1.65) 28 " (71.12 )
033271038 .50"-.90" (1.27-2.29) 40 " (101.6 0 )
033271039 .75"-1.10" (1.90-2.79) 52" (132.08)
033271040 1.00"-1.50" (2.54-3.81) 67 " ( 17 0 .18)
033271041 1.25"-1.70" ( 3.17-4. 32) 83" (210.82)
033271042 1.50"-2.10" (3.81-5.33) 96" (243.84)
Rope Diameter
Inches (cm)
®
Wiring Device-Kellems
Feed Tube Length
Inches (cm) Catalog Number
091061043
091061044
091061045
091061046
091061047
091061048
