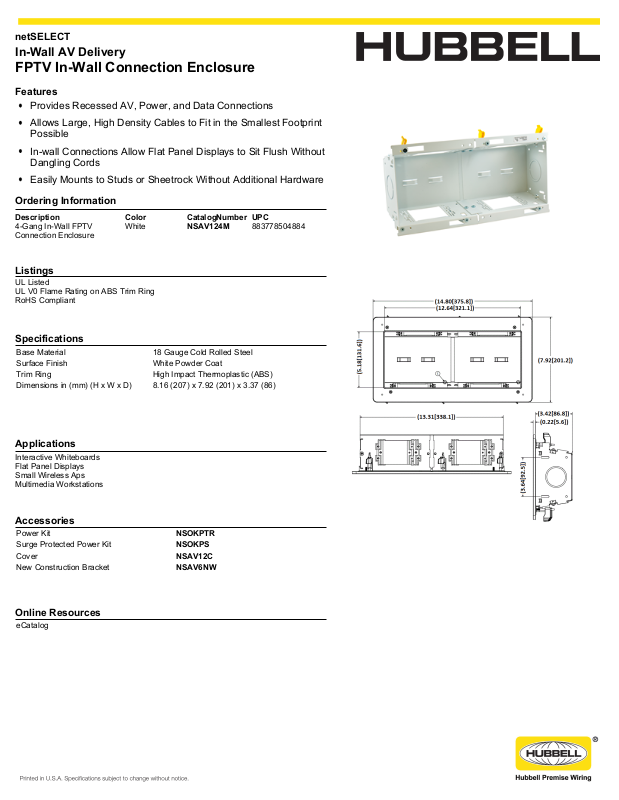

Hubbell NSAV124M Specifications

netSELECT

In-Wall AV Delivery

FPTV In-Wall Connection Enclosure

Features

Provides Recessed AV, Power, and Data Connections

Allows Large, High Density Cables to Fit in the Smallest Footprint
Possible

In-wall Connections Allow Flat Panel Displays to Sit Flush Without
Dangling Cords

Easily Mounts to Studs or Sheetrock Without Additional Hardware

Ordering Information

Description Color CatalogNumber UPC

4-Gang In-Wall FPTV
Connection Enclosure

Listings

UL Listed
UL V0 Flame Rating on ABS Trim Ring
RoHS Compliant

White NSAV124M 883778504884

Specifications

Base Material 18 Gauge Cold Rolled Steel
Surface Finish White Powder Coat
Trim Ring High Impact Thermoplastic (ABS)
Dimensions in (mm) (H x W x D) 8.16 (207) x 7.92 (201) x 3.37 (86)

Applications

Interactive Whiteboards
Flat Panel Displays
Small Wireless Aps
Multimedia Workstations

Accessories

Power Kit NSOKPTR
Surge Protected Power Kit NSOKPS
Cover NSAV12C
New Construction Bracket NSAV6NW

Online Resources

eCatalog
