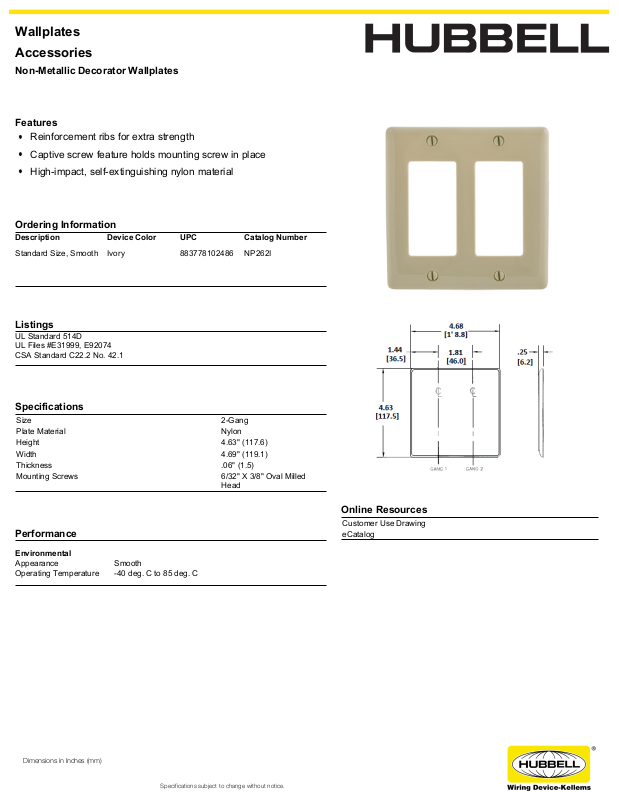

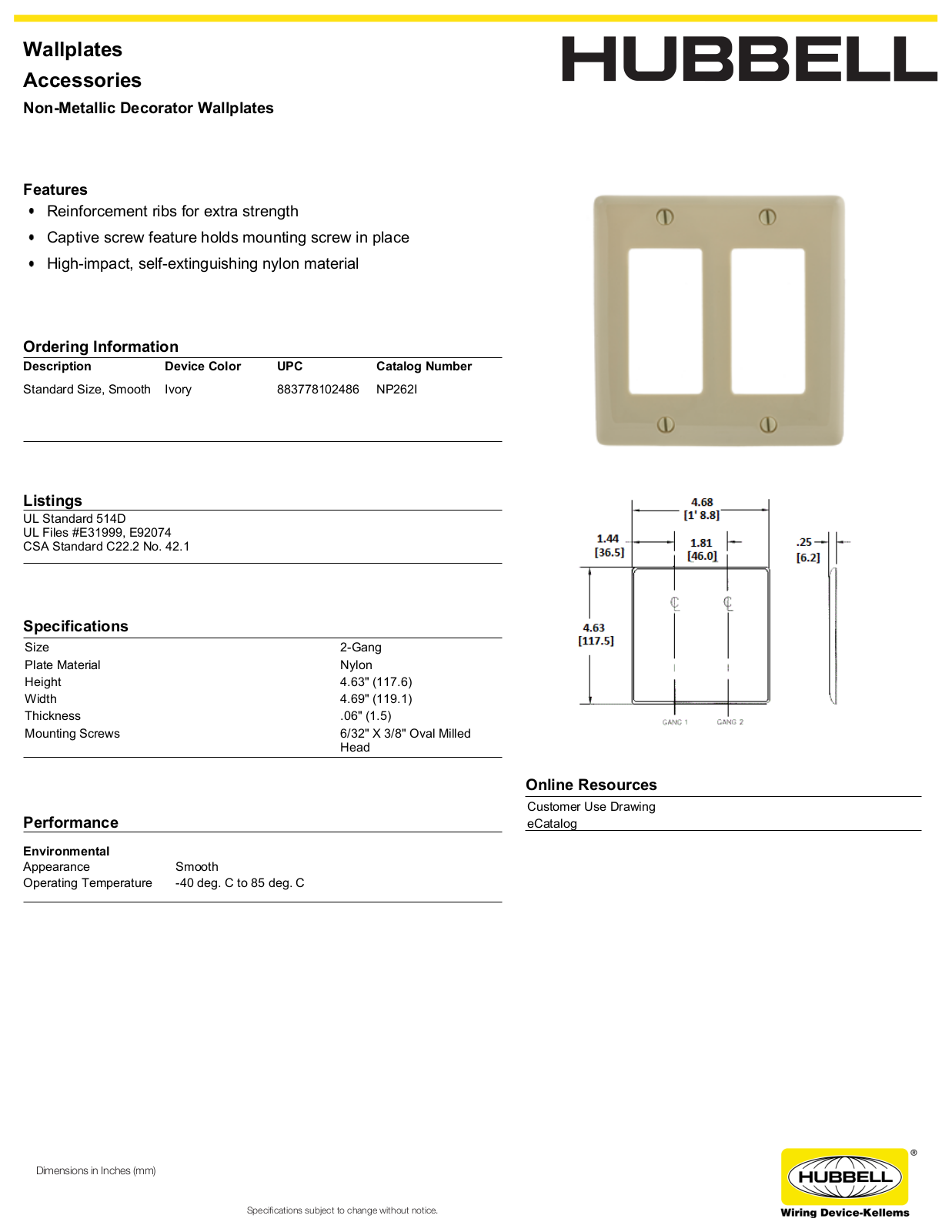

Wallplates
Accessories
Non-Metallic Decorator Wallplates
Features
Reinforcement ribs for extra strength
Captive screw feature holds mounting screw in place
High-impact, self-extinguishing nylon material
Ordering Information
Description Device Color UPC Catalog Number
Standard Size, Smooth Ivory 883778102486 NP262I
Listings
UL Standard 514D
UL Files #E31999, E92074
CSA Standard C22.2 No. 42.1
Specifications
Size 2-Gang
Plate Material Nylon
Height 4.63" (117.6)
Width 4.69" (119.1)
Thickness .06" (1.5)
Mounting Screws 6/32" X 3/8" Oval Milled
Head
Performance
Environmental
Appearance Smooth
Operating Temperature -40 deg. C to 85 deg. C
Online Resources
Customer Use Drawing
eCatalog
Dimensions in Inches (mm)
Specifications subject to change without notice.
