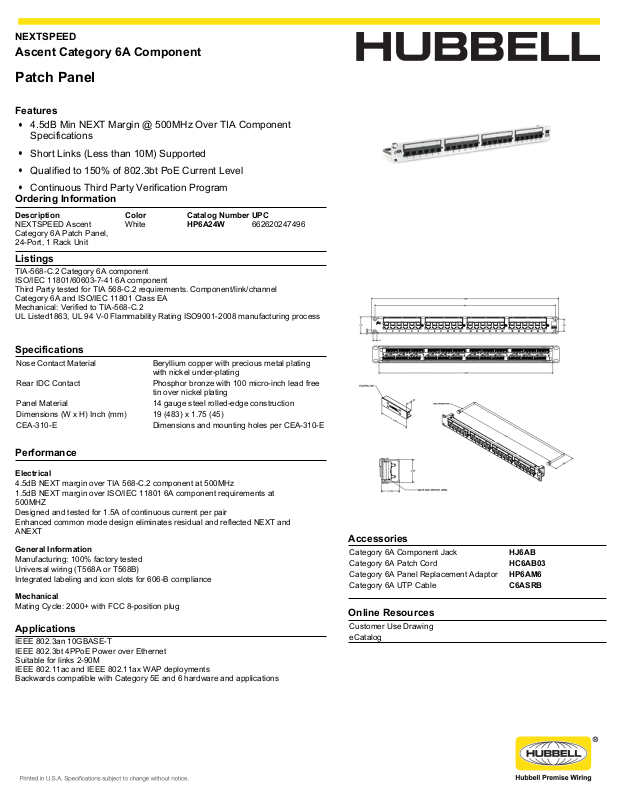

Hubbell HP6A24W Data Sheet

NEXTSPEED

Ascent Category 6A Component

Patch Panel

Features

4.5dB Min NEXT Margin @ 500MHz Over TIA Component
Specifications

Short Links (Less than 10M) Supported

Qualified to 150% of 802.3bt PoE Current Level

Continuous Third Party Verification Program

Ordering Information

Description Color Catalog Number UPC

NEXTSPEED Ascent
Category 6A Patch Panel,
24-Port, 1 Rack Unit

Listings

TIA-568-C.2 Category 6A component
ISO/IEC 11801/60603-7-41 6A component
Third Party tested for TIA 568-C.2 requirements. Component/link/channel
Category 6A and ISO/IEC 11801 Class EA
Mechanical: Verified to TIA-568-C.2
UL Listed1863, UL 94 V-0 Flammability Rating ISO9001-2008 manufacturing process

White HP6A24W 662620247496

Specifications

Nose Contact Material Beryllium copper with precious metal plating

with nickel under-plating

Rear IDC Contact Phosphor bronze with 100 micro-inch lead free

tin over nickel plating
Panel Material 14 gauge steel rolled-edge construction
Dimensions (W x H) Inch (mm) 19 (483) x 1.75 (45)
CEA-310-E Dimensions and mounting holes per CEA-310-E

Performance

Electrical

4.5dB NEXT margin over TIA 568-C.2 component at 500MHz

1.5dB NEXT margin over ISO/IEC 11801 6A component requirements at
500MHZ

Designed and tested for 1.5A of continuous current per pair
Enhanced common mode design eliminates residual and reflected NEXT and

ANEXT

General Information

Manufacturing: 100% factory tested
Universal wiring (T568A or T568B)
Integrated labeling and icon slots for 606-B compliance

Mechanical

Mating Cycle: 2000+ with FCC 8-position plug

Applications

IEEE 802.3an 10GBASE-T
IEEE 802.3bt 4PPoE Power over Ethernet
Suitable for links 2-90M
IEEE 802.11ac and IEEE 802.11ax WAP deployments
Backwards compatible with Category 5E and 6 hardware and applications

Accessories

Category 6A Component Jack HJ6AB
Category 6A Patch Cord HC6AB03
Category 6A Panel Replacement Adaptor HP6AM6
Category 6A UTP Cable C6ASRB

Online Resources

Customer Use Drawing
eCatalog
