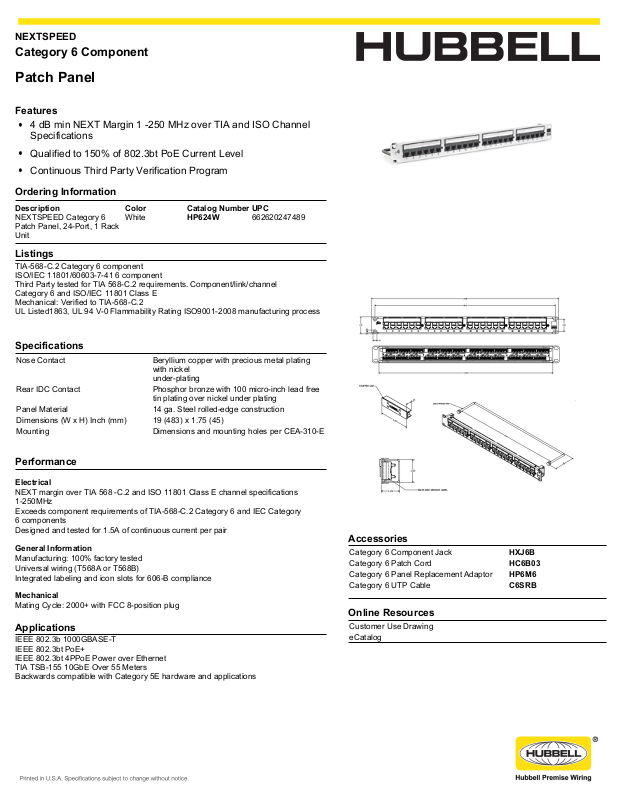

Hubbell HP624W Data Sheet

NEXTSPEED

Category 6 Component

Patch Panel

Features

4 dB min NEXT Margin 1 -250 MHz over TIA and ISO Channel
Specifications

Qualified to 150% of 802.3bt PoE Current Level

Continuous Third Party Verification Program

Ordering Information

Description Color Catalog Number UPC

NEXTSPEED Category 6
Patch Panel, 24-Port, 1 Rack
Unit

Listings

TIA-568-C.2 Category 6 component
ISO/IEC 11801/60603-7-41 6 component
Third Party tested for TIA 568-C.2 requirements. Component/link/channel
Category 6 and ISO/IEC 11801 Class E
Mechanical: Verified to TIA-568-C.2
UL Listed1863, UL 94 V-0 Flammability Rating ISO9001-2008 manufacturing process

White HP624W 662620247489

Specifications

Nose Contact Beryllium copper with precious metal plating

with nickel
under-plating

Rear IDC Contact Phosphor bronze with 100 micro-inch lead free

tin plating over nickel under plating
Panel Material 14 ga. Steel rolled-edge construction
Dimensions (W x H) Inch (mm) 19 (483) x 1.75 (45)
Mounting Dimensions and mounting holes per CEA-310-E

Performance

Electrical

NEXT margin over TIA 568 -C.2 and ISO 11801 Class E channel specifications
1-250MHz

Exceeds component requirements of TIA-568-C.2 Category 6 and IEC Category
6 components

Designed and tested for 1.5A of continuous current per pair

General Information

Manufacturing: 100% factory tested
Universal wiring (T568A or T568B)
Integrated labeling and icon slots for 606-B compliance

Mechanical

Mating Cycle: 2000+ with FCC 8-position plug

Applications

IEEE 802.3b 1000GBASE-T
IEEE 802.3bt PoE+
IEEE 802.3bt 4PPoE Power over Ethernet
TIA TSB-155 10GbE Over 55 Meters
Backwards compatible with Category 5E hardware and applications

Accessories

Category 6 Component Jack HXJ6B
Category 6 Patch Cord HC6B03
Category 6 Panel Replacement Adaptor HP6M6
Category 6 UTP Cable C6SRB
