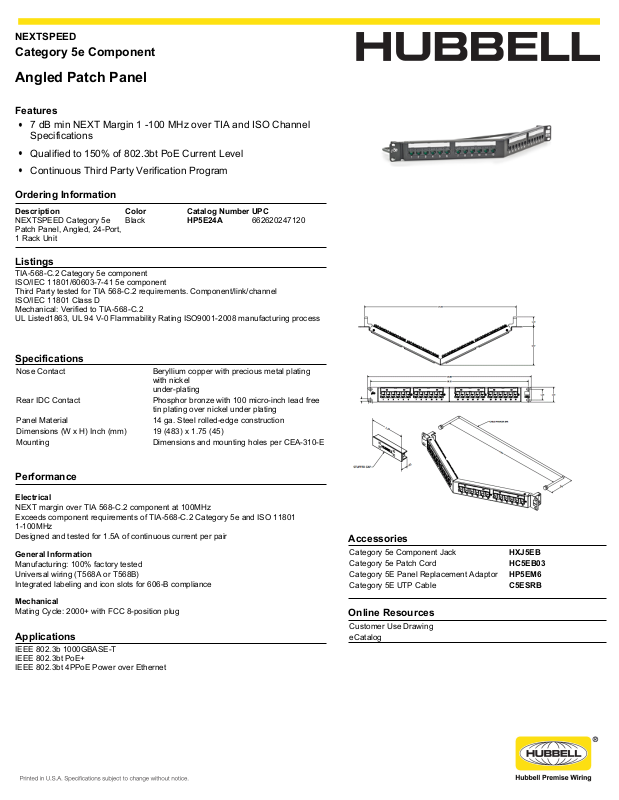

Hubbell HP5E24A Data Sheet

NEXTSPEED

Category 5e Component

Angled Patch Panel

Features

7 dB min NEXT Margin 1 -100 MHz over TIA and ISO Channel
Specifications

Qualified to 150% of 802.3bt PoE Current Level

Continuous Third Party Verification Program

Ordering Information

Description Color Catalog Number UPC

NEXTSPEED Category 5e
Patch Panel, Angled, 24-Port,
1 Rack Unit

Listings

TIA-568-C.2 Category 5e component
ISO/IEC 11801/60603-7-41 5e component
Third Party tested for TIA 568-C.2 requirements. Component/link/channel
ISO/IEC 11801 Class D
Mechanical: Verified to TIA-568-C.2
UL Listed1863, UL 94 V-0 Flammability Rating ISO9001-2008 manufacturing process

Black HP5E24A 662620247120

Specifications

Nose Contact Beryllium copper with precious metal plating

with nickel
under-plating

Rear IDC Contact Phosphor bronze with 100 micro-inch lead free

tin plating over nickel under plating
Panel Material 14 ga. Steel rolled-edge construction
Dimensions (W x H) Inch (mm) 19 (483) x 1.75 (45)
Mounting Dimensions and mounting holes per CEA-310-E

Performance

Electrical

NEXT margin over TIA 568-C.2 component at 100MHz
Exceeds component requirements of TIA-568-C.2 Category 5e and ISO 11801

1-100MHz
Designed and tested for 1.5A of continuous current per pair

General Information

Manufacturing: 100% factory tested
Universal wiring (T568A or T568B)
Integrated labeling and icon slots for 606-B compliance

Mechanical

Mating Cycle: 2000+ with FCC 8-position plug

Applications

IEEE 802.3b 1000GBASE-T
IEEE 802.3bt PoE+
IEEE 802.3bt 4PPoE Power over Ethernet

Accessories

Category 5e Component Jack HXJ5EB
Category 5e Patch Cord HC5EB03
Category 5E Panel Replacement Adaptor HP5EM6
Category 5E UTP Cable C5ESRB

Online Resources

Customer Use Drawing
eCatalog
