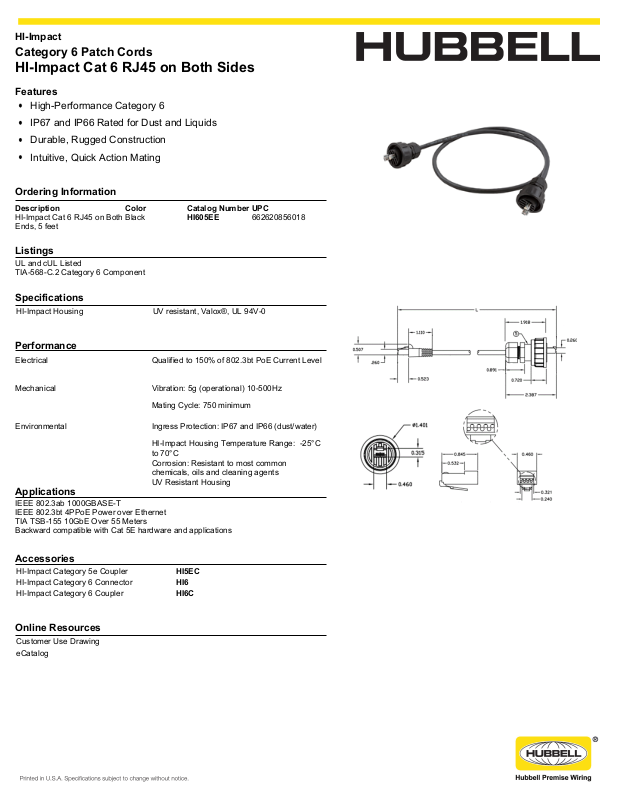

Hubbell HI605EE Specifications

HI-Impact

Category 6 Patch Cords

HI-Impact Cat 6 RJ45 on Both Sides

Features

High-Performance Category 6

IP67 and IP66 Rated for Dust and Liquids

Durable, Rugged Construction

Intuitive, Quick Action Mating

Ordering Information

Description Color Catalog Number UPC

HI-Impact Cat 6 RJ45 on Both
Ends, 5 feet

Listings

UL and cUL Listed
TIA-568-C.2 Category 6 Component

Specifications

HI-Impact Housing UV resistant, Valox®, UL 94V-0

Black HI605EE 662620856018

Performance

Electrical Qualified to 150% of 802.3bt PoE Current Level

Mechanical Vibration: 5g (operational) 10-500Hz

Mating Cycle: 750 minimum

Environmental Ingress Protection: IP67 and IP66 (dust/water)

HI-Impact Housing Temperature Range: -25°C
to 70°C

Corrosion: Resistant to most common
chemicals, oils and cleaning agents

UV Resistant Housing

Applications

IEEE 802.3ab 1000GBASE-T
IEEE 802.3bt 4PPoE Power over Ethernet
TIA TSB-155 10GbE Over 55 Meters
Backward compatible with Cat 5E hardware and applications

Accessories

HI-Impact Category 5e Coupler HI5EC
HI-Impact Category 6 Connector HI6
HI-Impact Category 6 Coupler HI6C

Online Resources

Customer Use Drawing
eCatalog
