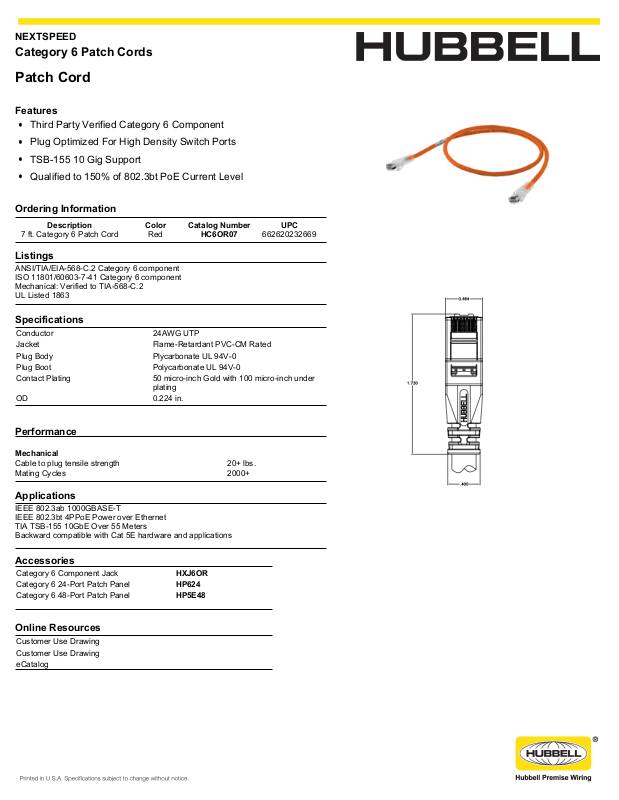

Hubbell HC6OR006 Specifications

NEXTSPEED

Category 6 Patch Cords

Patch Cord

Features

Third Party Verified Category 6 Component

Plug Optimized For High Density Switch Ports

TSB-155 10 Gig Support

Qualified to 150% of 802.3bt PoE Current Level

Ordering Information

Description Color Catalog Number UPC

7 ft. Category 6 Patch Cord Red HC6OR07 662620232669

Listings

ANSI/TIA/EIA-568-C.2 Category 6 component
ISO 11801/60603-7-41 Category 6 component
Mechanical: Verified to TIA-568-C.2
UL Listed 1863

Specifications

Conductor 24AWG UTP
Jacket Flame-Retardant PVC-CM Rated
Plug Body Plycarbonate UL 94V-0
Plug Boot Polycarbonate UL 94V-0
Contact Plating 50 micro-inch Gold with 100 micro-inch under

OD 0.224 in.

plating

Performance

Mechanical

Cable to plug tensile strength 20+ lbs.
Mating Cycles 2000+

Applications

IEEE 802.3ab 1000GBASE-T
IEEE 802.3bt 4PPoE Power over Ethernet
TIA TSB-155 10GbE Over 55 Meters
Backward compatible with Cat 5E hardware and applications

Accessories

Category 6 Component Jack HXJ6OR
Category 6 24-Port Patch Panel HP624
Category 6 48-Port Patch Panel HP5E48

Online Resources

Customer Use Drawing
Customer Use Drawing
eCatalog
