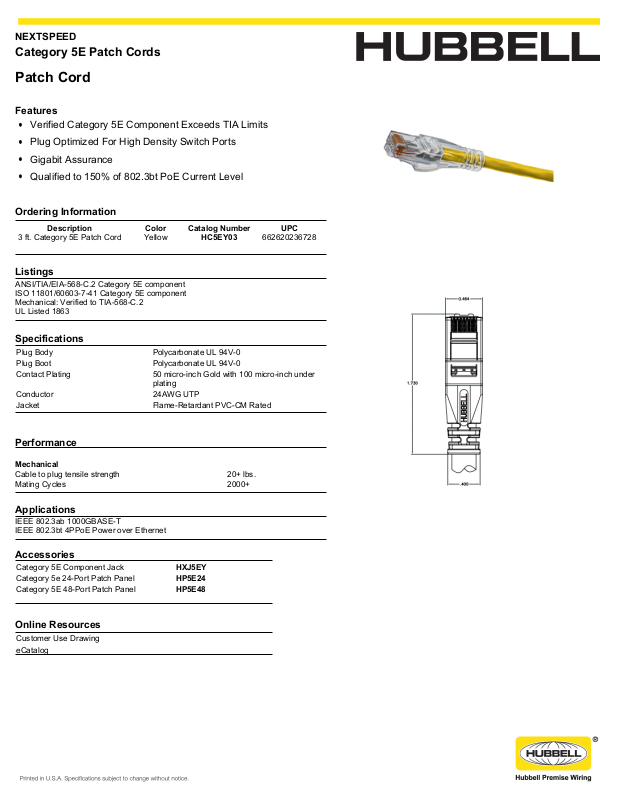

Hubbell HC5EY006 Specifications

NEXTSPEED

Category 5E Patch Cords

Patch Cord

Features

Verified Category 5E Component Exceeds TIA Limits

Plug Optimized For High Density Switch Ports

Gigabit Assurance

Qualified to 150% of 802.3bt PoE Current Level

Ordering Information

Description Color Catalog Number UPC

3 ft. Category 5E Patch Cord Yellow HC5EY03 662620236728

Listings

ANSI/TIA/EIA-568-C.2 Category 5E component
ISO 11801/60603-7-41 Category 5E component
Mechanical: Verified to TIA-568-C.2
UL Listed 1863

Specifications

Plug Body Polycarbonate UL 94V-0
Plug Boot Polycarbonate UL 94V-0
Contact Plating 50 micro-inch Gold with 100 micro-inch under

Conductor 24AWG UTP
Jacket Flame-Retardant PVC-CM Rated

plating

Performance

Mechanical

Cable to plug tensile strength 20+ lbs.
Mating Cycles 2000+

Applications

IEEE 802.3ab 1000GBASE-T
IEEE 802.3bt 4PPoE Power over Ethernet

Accessories

Category 5E Component Jack HXJ5EY
Category 5e 24-Port Patch Panel HP5E24
Category 5E 48-Port Patch Panel HP5E48

Online Resources

Customer Use Drawing
eCatalog
