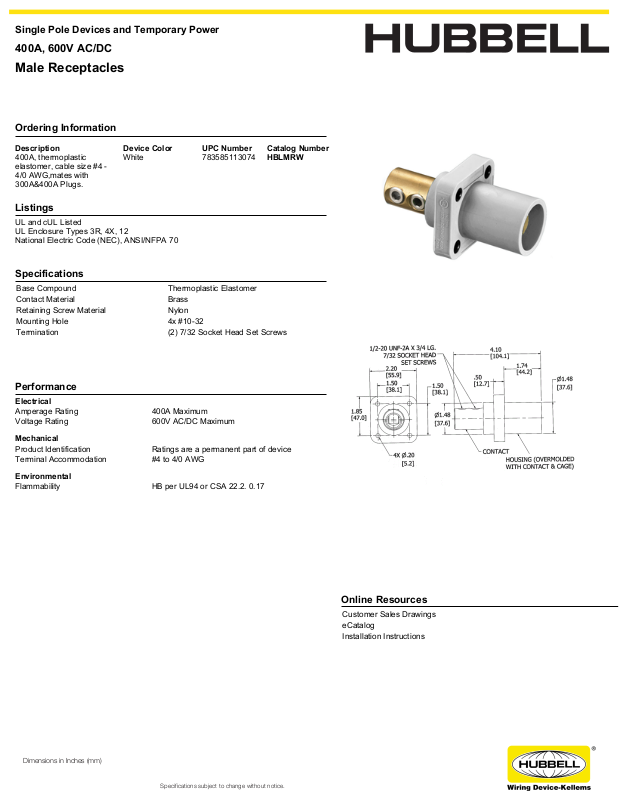

Hubbell HBLMRW Specifications
Single Pole Devices and Temporary Power
400A, 600V AC/DC
Male Receptacles
Ordering Information
Description Device Color UPC Number Catalog Number
400A, thermoplastic
elastomer, cable size #4 4/0 AWG,mates with
300A&400A Plugs.
Listings
UL and cUL Listed
UL Enclosure Types 3R, 4X, 12
National Electric Code (NEC), ANSI/NFPA 70
Specifications
Base Compound Thermoplastic Elastomer
Contact Material Brass
Retaining Screw Material Nylon
Mounting Hole 4x #10-32
Termination (2) 7/32 Socket Head Set Screws
White 783585113074 HBLMRW
Performance
Electrical
Amperage Rating 400A Maximum
Voltage Rating 600V AC/DC Maximum
Mechanical
Product Identification Ratings are a permanent part of device
Terminal Accommodation #4 to 4/0 AWG
Environmental
Flammability HB per UL94 or CSA 22.2. 0.17
Online Resources
Customer Sales Drawings
eCatalog
Installation Instructions
Dimensions in Inches (mm)
Specifications subject to change without notice.
