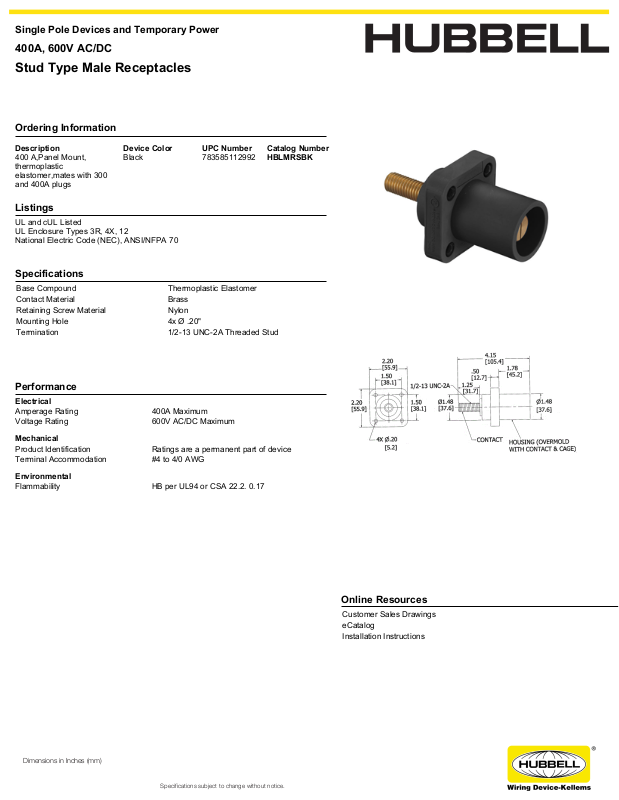

Hubbell HBLMRSBK Specifications

Single Pole Devices and Temporary Power

400A, 600V AC/DC

Stud Type Male Receptacles

Ordering Information

Description Device Color UPC Number Catalog Number

400 A,Panel Mount,
thermoplastic
elastomer,mates with 300
and 400A plugs

Listings

UL and cUL Listed
UL Enclosure Types 3R, 4X, 12
National Electric Code (NEC), ANSI/NFPA 70

Specifications

Base Compound Thermoplastic Elastomer
Contact Material Brass
Retaining Screw Material Nylon
Mounting Hole 4x Ø .20"
Termination 1/2-13 UNC-2A Threaded Stud

Black 783585112992 HBLMRSBK

Performance

Electrical

Amperage Rating 400A Maximum
Voltage Rating 600V AC/DC Maximum

Mechanical

Product Identification Ratings are a permanent part of device
Terminal Accommodation #4 to 4/0 AWG

Environmental

Flammability HB per UL94 or CSA 22.2. 0.17

Online Resources

Customer Sales Drawings
eCatalog
Installation Instructions

Dimensions in Inches (mm)

Specifications subject to change without notice.
