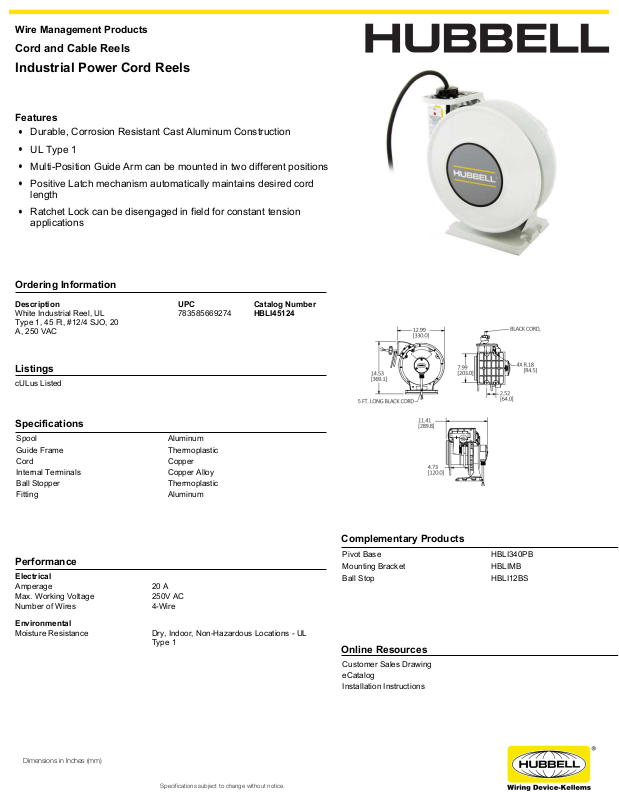

Hubbell HBLI45124 Specifications
Wire Management Products
Cord and Cable Reels
Industrial Power Cord Reels
Features
Durable, Corrosion Resistant Cast Aluminum Construction
UL Type 1
Multi-Position Guide Arm can be mounted in two different positions
Positive Latch mechanism automatically maintains desired cord
length
Ratchet Lock can be disengaged in field for constant tension
applications
Ordering Information
Description UPC Catalog Number
White Industrial Reel, UL
Type 1, 45 Ft, #12/4 SJO, 20
A, 250 VAC
783585669274 HBLI45124
Listings
cULus Listed
Specifications
Spool Aluminum
Guide Frame Thermoplastic
Cord Copper
Internal Terminals Copper Alloy
Ball Stopper Thermoplastic
Fitting Aluminum
Performance
Electrical
Amperage 20 A
Max. Working Voltage 250V AC
Number of Wires 4-Wire
Environmental
Moisture Resistance Dry, Indoor, Non-Hazardous Locations - UL
Type 1
Complementary Products
Pivot Base HBLI340PB
Mounting Bracket HBLIMB
Ball Stop HBLI12BS
Online Resources
Customer Sales Drawing
eCatalog
Installation Instructions
Dimensions in Inches (mm)
Specifications subject to change without notice.
