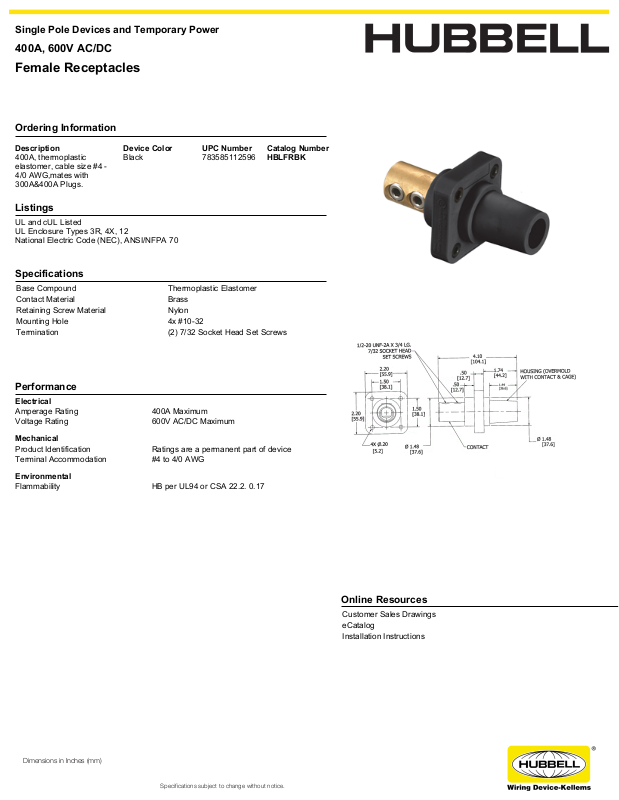

Hubbell HBLFRBK Specifications

Single Pole Devices and Temporary Power

400A, 600V AC/DC

Female Receptacles

Ordering Information

Description Device Color UPC Number Catalog Number

400A, thermoplastic
elastomer, cable size #4 ­4/0 AWG,mates with
300A&400A Plugs.

Listings

UL and cUL Listed
UL Enclosure Types 3R, 4X, 12
National Electric Code (NEC), ANSI/NFPA 70

Specifications

Base Compound Thermoplastic Elastomer
Contact Material Brass
Retaining Screw Material Nylon
Mounting Hole 4x #10-32
Termination (2) 7/32 Socket Head Set Screws

Black 783585112596 HBLFRBK

Performance

Electrical

Amperage Rating 400A Maximum
Voltage Rating 600V AC/DC Maximum

Mechanical

Product Identification Ratings are a permanent part of device
Terminal Accommodation #4 to 4/0 AWG

Environmental

Flammability HB per UL94 or CSA 22.2. 0.17

Online Resources

Customer Sales Drawings
eCatalog
Installation Instructions

Dimensions in Inches (mm)

Specifications subject to change without notice.
