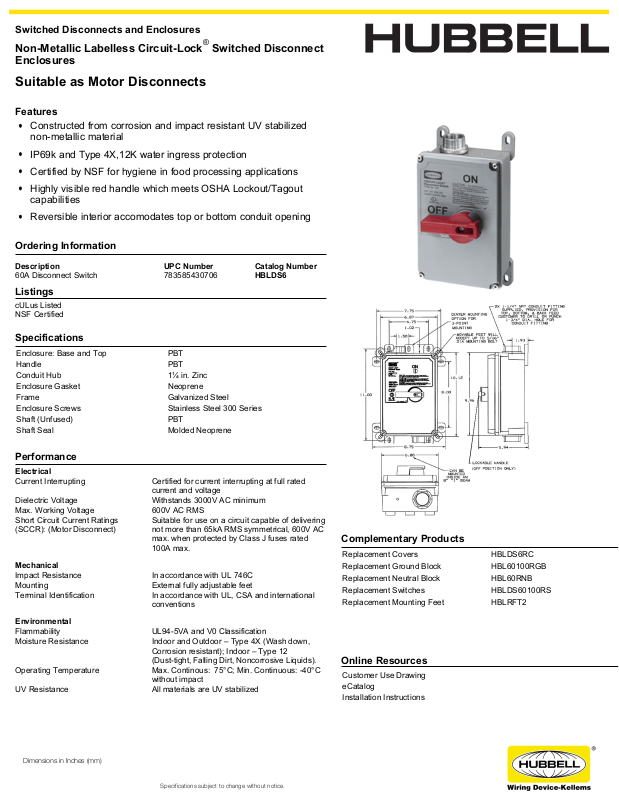

Switched Disconnects and Enclosures
Non-Metallic Labelless Circuit-Lock Switched Disconnect
®
Enclosures
Suitable as Motor Disconnects
Features
Constructed from corrosion and impact resistant UV stabilized
non-metallic material
IP69k and Type 4X,12K water ingress protection
Certified by NSF for hygiene in food processing applications
Highly visible red handle which meets OSHA Lockout/Tagout
capabilities
Reversible interior accomodates top or bottom conduit opening
Ordering Information
Description UPC Number Catalog Number
60A Disconnect Switch 783585430706 HBLDS6
Listings
cULus Listed
NSF Certified
Specifications
Enclosure: Base and Top PBT
Handle PBT
Conduit Hub 1¼ in. Zinc
Enclosure Gasket Neoprene
Frame Galvanized Steel
Enclosure Screws Stainless Steel 300 Series
Shaft (Unfused) PBT
Shaft Seal Molded Neoprene
Performance
Electrical
Current Interrupting Certified for current interrupting at full rated
Dielectric Voltage Withstands 3000V AC minimum
Max. Working Voltage 600V AC RMS
Short Circuit Current Ratings
(SCCR): (Motor Disconnect)
Mechanical
Impact Resistance In accordance with UL 746C
Mounting External fully adjustable feet
Terminal Identification In accordance with UL, CSA and international
Environmental
Flammability UL94-5VA and V0 Classification
Moisture Resistance Indoor and Outdoor – Type 4X (Wash down,
Operating Temperature Max. Continous: 75°C; Min. Continuous: -40°C
UV Resistance All materials are UV stabilized
current and voltage
Suitable for use on a circuit capable of delivering
not more than 65kA RMS symmetrical, 600V AC
max. when protected by Class J fuses rated
100A max.
conventions
Corrosion resistant); Indoor – Type 12
(Dust-tight, Falling Dirt, Noncorrosive Liquids).
without impact
Complementary Products
Replacement Covers HBLDS6RC
Replacement Ground Block HBL60100RGB
Replacement Neutral Block HBL60RNB
Replacement Switches HBLDS60100RS
Replacement Mounting Feet HBLRFT2
Online Resources
Customer Use Drawing
eCatalog
Installation Instructions
Dimensions in Inches (mm)
Specifications subject to change without notice.
