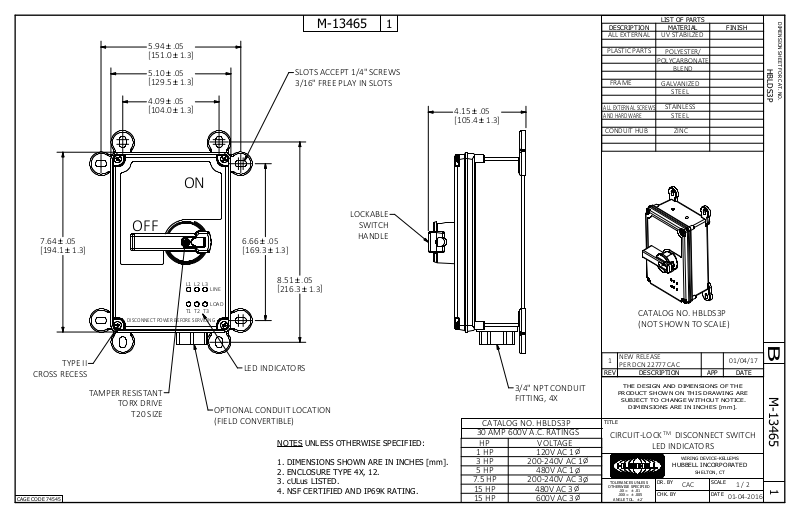

Hubbell HBLDS3P Reference Drawing

5.94 `.05
[ ]

151.0 `1.3

5.10 `.05
[ ]

129.5 `1.3

4.09 `.05
[ ]

104.0 `1.3

ON

M-13465

1

SLOTS ACCEPT 1/4" SCREWS
3/16" FREE PLAY IN SLOTS

4.15 `.05
[ ]

105.4 `1.3

LIST OF PARTS

DESCRIPTION MATERIAL FINISH

ALL EXTERNAL

PLASTIC PARTS

FRAME

ALL EXTERNAL SCREWS
AND HARDWARE

CONDUIT HUB ZINC

UV STABILZED

POLYESTER/

POLYCARBONATE

BLEND

GALVANIZED

STEEL

STAINLESS

STEEL

DIMENSION SHEET FOR CAT. NO.

HBLDS3P

7.64 `.05
[ ]

194.1 `1.3

CROSS RECESS

CAGE CODE 74545

TYPE II

OFF

DISCONNECT POWER BEFORE SERVICING

TAMPER RESISTANT

TORX DRIVE

T20 SIZE

L1 L2 L3

T1 T2 T3

6.66 `.05
[ ]

169.3 `1.3

8.51 `.05

LINE

LOAD

[ ]

216.3 `1.3

LED INDICATORS

OPTIONAL CONDUIT LOCATION
(FIELD CONVERTIBLE)

NOTES UNLESS OTHERWISE SPECIFIED:

1. DIMENSIONS SHOWN ARE IN INCHES [mm].

2. ENCLOSURE TYPE 4X, 12.

3. cULus LISTED.

4. NSF CERTIFIED AND IP69K RATING.

LOCKABLE

SWITCH

HANDLE

3/4" NPT CONDUIT
FITTING, 4X

CATALOG NO. HBLDS3P

30 AMP 600V A.C. RATINGS

HP VOLTAGE

1 HP 120V AC 1

n

3 HP 200-240V AC 1
5 HP 480V AC 1

n

7.5 HP 200-240V AC 3
15 HP 480V AC 3
15 HP 600V AC 3

n

n

n

n

CATALOG NO. HBLDS3P
(NOT SHOWN TO SCALE)

NEW RELEASE

1

PER DCN 22777 CAC

REV DESCRIPTION APP DATE

THE DESIGN AND DIMENSIONS OF THE

PRODUCT SHOWN ON THIS DRAWING ARE

SUBJECT TO CHANGE WITHOUT NOTICE.

DIMENSIONS ARE IN INCHES [mm].

TITLE

CIRCUIT-LOCK DISCONNECT SWITCH

TM

01/04/17

LED INDICATORS

WIRING DEVICE-KELLEMS

HUBBELL INCORPORATED

SHELTON, CT

TOLERANCES UNLESS

OTHERWISE SPECIFIED

.XX = ± .01

.XXX= ± .005

ANGLE TOL. ±2~

DR. BY

CHK. BY

CAC

SCALE

DATE

1 / 2

01-04-2016

B

M-13465

1
