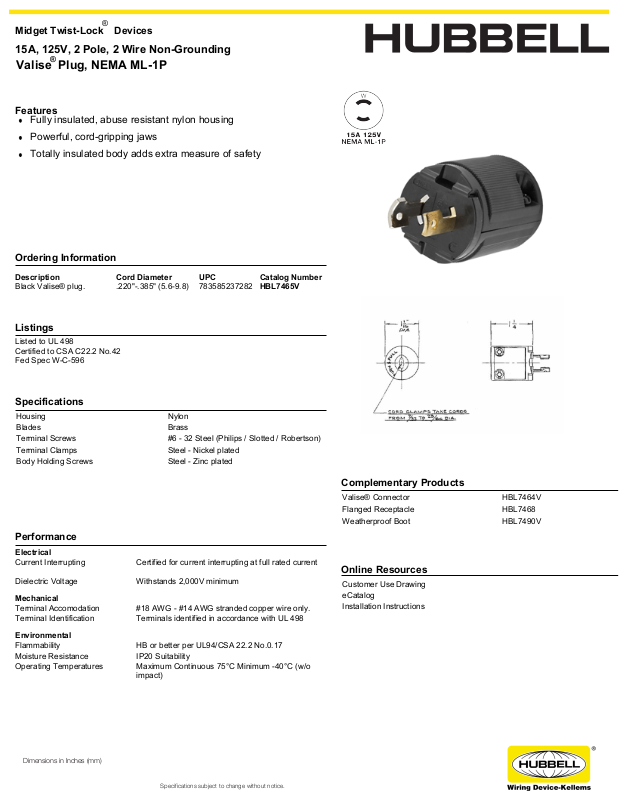

Hubbell HBL7465V Specifications
Midget Twist-Lock Devices
®
15A, 125V, 2 Pole, 2 Wire Non-Grounding
Valise Plug, NEMA ML-1P
Features
Ordering Information
Description Cord Diameter UPC Catalog Number
Black Valise® plug. .220"-.385" (5.6-9.8) 783585237282 HBL7465V
Listings
Listed to UL 498
Certified to CSA C22.2 No.42
Fed Spec W-C-596
®
Fully insulated, abuse resistant nylon housing
Powerful, cord-gripping jaws
Totally insulated body adds extra measure of safety
Specifications
Housing Nylon
Blades Brass
Terminal Screws #6 - 32 Steel (Philips / Slotted / Robertson)
Terminal Clamps Steel - Nickel plated
Body Holding Screws Steel - Zinc plated
Performance
Electrical
Current Interrupting Certified for current interrupting at full rated current
Dielectric Voltage Withstands 2,000V minimum
Mechanical
Terminal Accomodation #18 AWG - #14 AWG stranded copper wire only.
Terminal Identification Terminals identified in accordance with UL 498
Environmental
Flammability HB or better per UL94/CSA 22.2 No.0.17
Moisture Resistance IP20 Suitability
Operating Temperatures Maximum Continuous 75°C Minimum -40°C (w/o
impact)
Complementary Products
Valise® Connector HBL7464V
Flanged Receptacle HBL7468
Weatherproof Boot HBL7490V
Online Resources
Customer Use Drawing
eCatalog
Installation Instructions
Dimensions in Inches (mm)
Specifications subject to change without notice.
