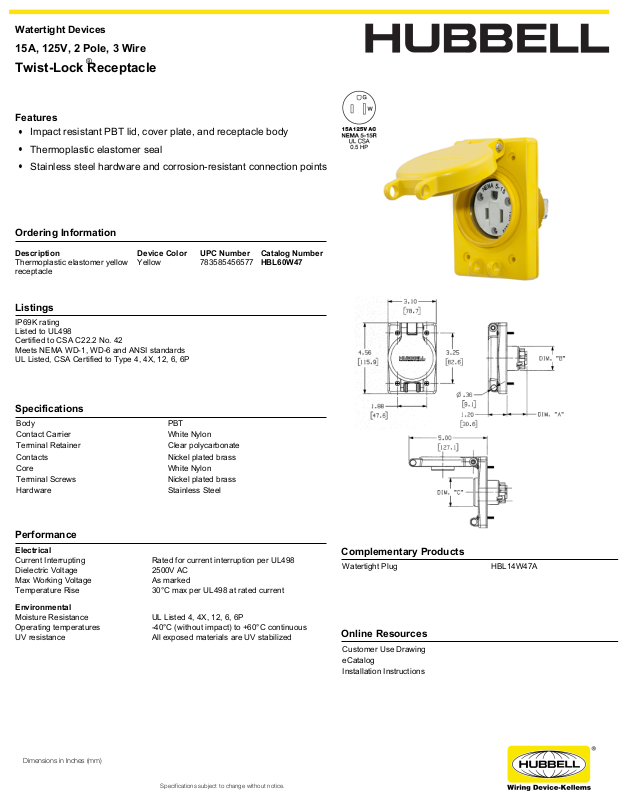

Hubbell HBL60W47 Specifications
Watertight Devices
15A, 125V, 2 Pole, 3 Wire
Twist-Lock Receptacle
®
Features
Impact resistant PBT lid, cover plate, and receptacle body
Thermoplastic elastomer seal
Stainless steel hardware and corrosion-resistant connection points
Ordering Information
Description Device Color UPC Number Catalog Number
Thermoplastic elastomer yellow
receptacle
Listings
IP69K rating
Listed to UL498
Certified to CSA C22.2 No. 42
Meets NEMA WD-1, WD-6 and ANSI standards
UL Listed, CSA Certified to Type 4, 4X, 12, 6, 6P
Yellow 783585456577 HBL60W47
Specifications
Body PBT
Contact Carrier White Nylon
Terminal Retainer Clear polycarbonate
Contacts Nickel plated brass
Core White Nylon
Terminal Screws Nickel plated brass
Hardware Stainless Steel
Performance
Electrical
Current Interrupting Rated for current interruption per UL498
Dielectric Voltage 2500V AC
Max Working Voltage As marked
Temperature Rise 30°C max per UL498 at rated current
Environmental
Moisture Resistance UL Listed 4, 4X, 12, 6, 6P
Operating temperatures -40°C (without impact) to +60°C continuous
UV resistance All exposed materials are UV stabilized
Complementary Products
Watertight Plug HBL14W47A
Online Resources
Customer Use Drawing
eCatalog
Installation Instructions
Dimensions in Inches (mm)
Specifications subject to change without notice.
