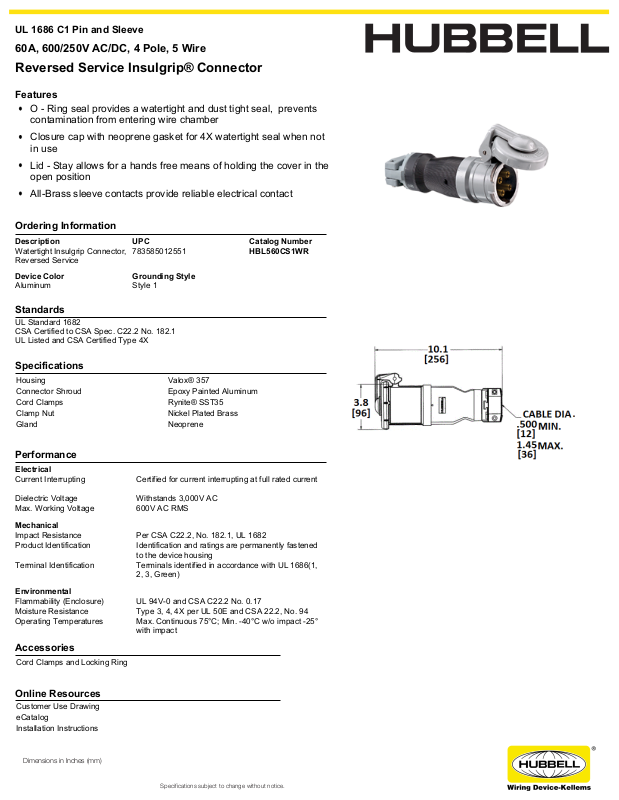

Hubbell HBL560CS1WR Specifications

UL 1686 C1 Pin and Sleeve

60A, 600/250V AC/DC, 4 Pole, 5 Wire

Reversed Service Insulgrip® Connector

Features

O - Ring seal provides a watertight and dust tight seal, prevents
contamination from entering wire chamber

Closure cap with neoprene gasket for 4X watertight seal when not
in use

Lid - Stay allows for a hands free means of holding the cover in the
open position

All-Brass sleeve contacts provide reliable electrical contact

Ordering Information

Description UPC Catalog Number

Watertight Insulgrip Connector,
Reversed Service

Device Color Grounding Style

Aluminum Style 1

Standards

UL Standard 1682
CSA Certified to CSA Spec. C22.2 No. 182.1
UL Listed and CSA Certified Type 4X

783585012551 HBL560CS1WR

Specifications

Housing Valox® 357
Connector Shroud Epoxy Painted Aluminum
Cord Clamps Rynite® SST35
Clamp Nut Nickel Plated Brass
Gland Neoprene

Performance

Electrical

Current Interrupting Certified for current interrupting at full rated current

Dielectric Voltage Withstands 3,000V AC
Max. Working Voltage 600V AC RMS

Mechanical

Impact Resistance Per CSA C22.2, No. 182.1, UL 1682
Product Identification Identification and ratings are permanently fastened

Terminal Identification Terminals identified in accordance with UL 1686(1,

Environmental

Flammability (Enclosure) UL 94V-0 and CSA C22.2 No. 0.17
Moisture Resistance Type 3, 4, 4X per UL 50E and CSA 22.2, No. 94
Operating Temperatures Max. Continuous 75°C; Min. -40°C w/o impact -25°

to the device housing

2, 3, Green)

with impact

Accessories

Cord Clamps and Locking Ring

Online Resources

Customer Use Drawing
eCatalog
Installation Instructions

Dimensions in Inches (mm)

Specifications subject to change without notice.
