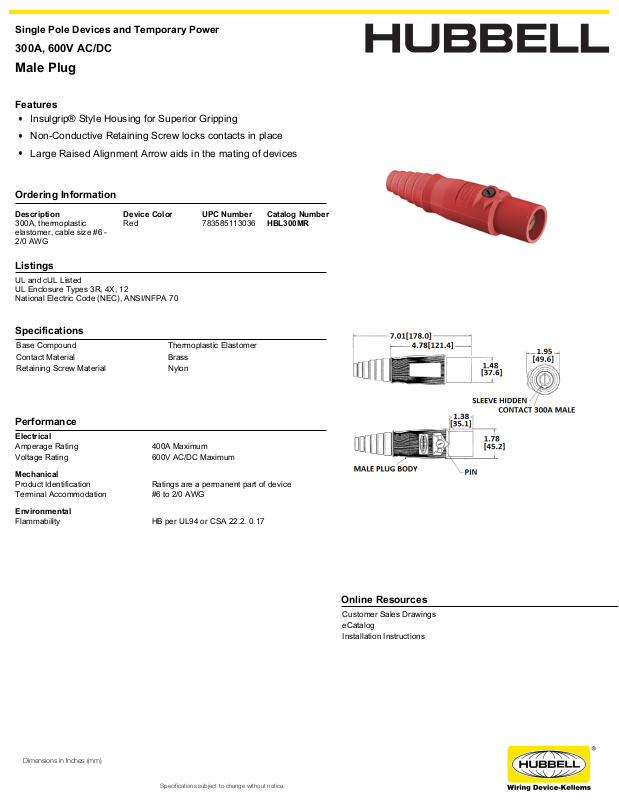

Hubbell HBL300MR Specifications
Single Pole Devices and Temporary Power
300A, 600V AC/DC
Male Plug
Features
Insulgrip® Style Housing for Superior Gripping
Non-Conductive Retaining Screw locks contacts in place
Large Raised Alignment Arrow aids in the mating of devices
Ordering Information
Description Device Color UPC Number Catalog Number
300A, thermoplastic
elastomer, cable size #6 2/0 AWG
Listings
UL and cUL Listed
UL Enclosure Types 3R, 4X, 12
National Electric Code (NEC), ANSI/NFPA 70
Red 783585113036 HBL300MR
Specifications
Base Compound Thermoplastic Elastomer
Contact Material Brass
Retaining Screw Material Nylon
Performance
Electrical
Amperage Rating 400A Maximum
Voltage Rating 600V AC/DC Maximum
Mechanical
Product Identification Ratings are a permanent part of device
Terminal Accommodation #6 to 2/0 AWG
Environmental
Flammability HB per UL94 or CSA 22.2. 0.17
Online Resources
Customer Sales Drawings
eCatalog
Installation Instructions
Dimensions in Inches (mm)
Specifications subject to change without notice.
