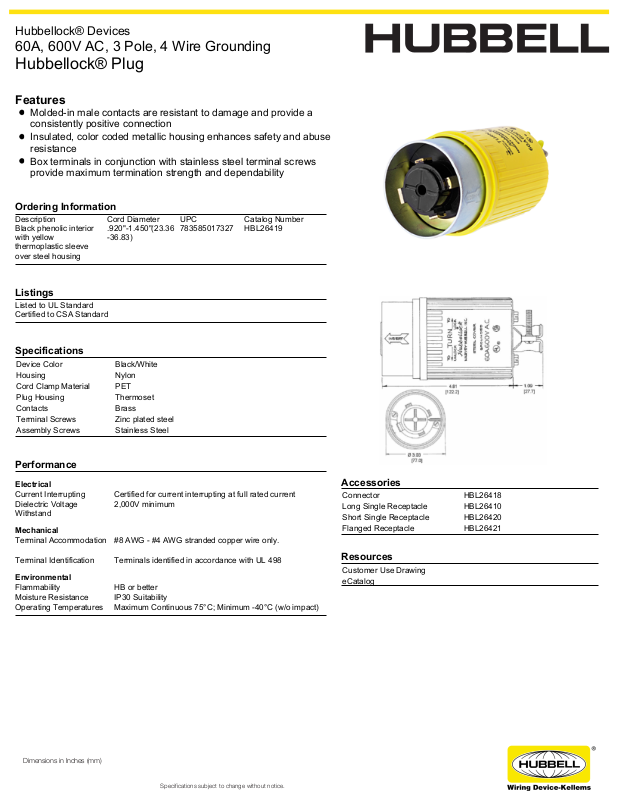

Hubbell HBL26419 Specifications

Hubbellock® Devices

60A, 600V AC, 3 Pole, 4 Wire Grounding

Hubbellock® Plug

Features

Molded-in male contacts are resistant to damage and provide a
consistently positive connection

Insulated, color coded metallic housing enhances safety and abuse
resistance

Box terminals in conjunction with stainless steel terminal screws
provide maximum termination strength and dependability

Ordering Information

Description Cord Diameter UPC Catalog Number
Black phenolic interior
with yellow
thermoplastic sleeve
over steel housing

Listings

Listed to UL Standard
Certified to CSA Standard

.920"-1.450"(23.36

-36.83)

783585017327 HBL26419

Specifications

Device Color Black/White
Housing Nylon
Cord Clamp Material PET
Plug Housing Thermoset
Contacts Brass
Terminal Screws Zinc plated steel
Assembly Screws Stainless Steel

Performance

Electrical

Current Interrupting Certified for current interrupting at full rated current
Dielectric Voltage

Withstand

Mechanical

Terminal Accommodation #8 AWG - #4 AWG stranded copper wire only.

Terminal Identification Terminals identified in accordance with UL 498

Environmental

Flammability HB or better
Moisture Resistance IP30 Suitability
Operating Temperatures Maximum Continuous 75°C; Minimum -40°C (w/o impact)

2,000V minimum

Accessories

Connector HBL26418
Long Single Receptacle HBL26410
Short Single Receptacle HBL26420
Flanged Receptacle HBL26421

Resources

Customer Use Drawing
eCatalog

Dimensions in Inches (mm)

Specifications subject to change without notice.
