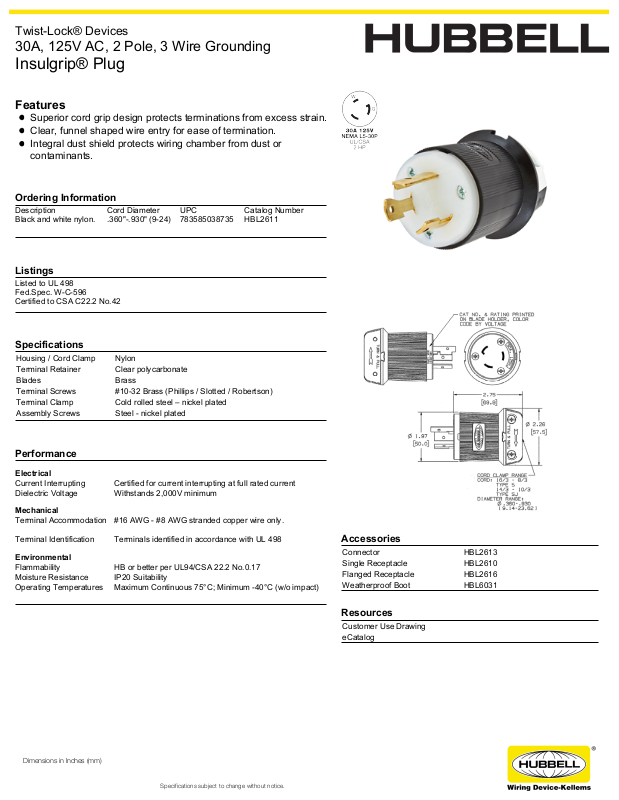

Hubbell HBL2611 Specifications

Twist-Lock® Devices

30A, 125V AC, 2 Pole, 3 Wire Grounding

Insulgrip® Plug

Features

Superior cord grip design protects terminations from excess strain.
Clear, funnel shaped wire entry for ease of termination.
Integral dust shield protects wiring chamber from dust or

contaminants.

Ordering Information

Description Cord Diameter UPC Catalog Number
Black and white nylon. .360"-.930" (9-24) 783585038735 HBL2611

Listings

Listed to UL 498
Fed.Spec. W-C-596
Certified to CSA C22.2 No.42

Specifications

Housing / Cord Clamp Nylon
Terminal Retainer Clear polycarbonate
Blades Brass
Terminal Screws #10-32 Brass (Phillips / Slotted / Robertson)
Terminal Clamp Cold rolled steel – nickel plated
Assembly Screws Steel - nickel plated

Performance

Electrical

Current Interrupting Certified for current interrupting at full rated current
Dielectric Voltage Withstands 2,000V minimum

Mechanical

Terminal Accommodation #16 AWG - #8 AWG stranded copper wire only.

Terminal Identification Terminals identified in accordance with UL 498

Environmental

Flammability HB or better per UL94/CSA 22.2 No.0.17
Moisture Resistance IP20 Suitability
Operating Temperatures Maximum Continuous 75°C; Minimum -40°C (w/o impact)

Accessories

Connector HBL2613
Single Receptacle HBL2610
Flanged Receptacle HBL2616
Weatherproof Boot HBL6031

Resources

Customer Use Drawing
eCatalog

Dimensions in Inches (mm)

Specifications subject to change without notice.
