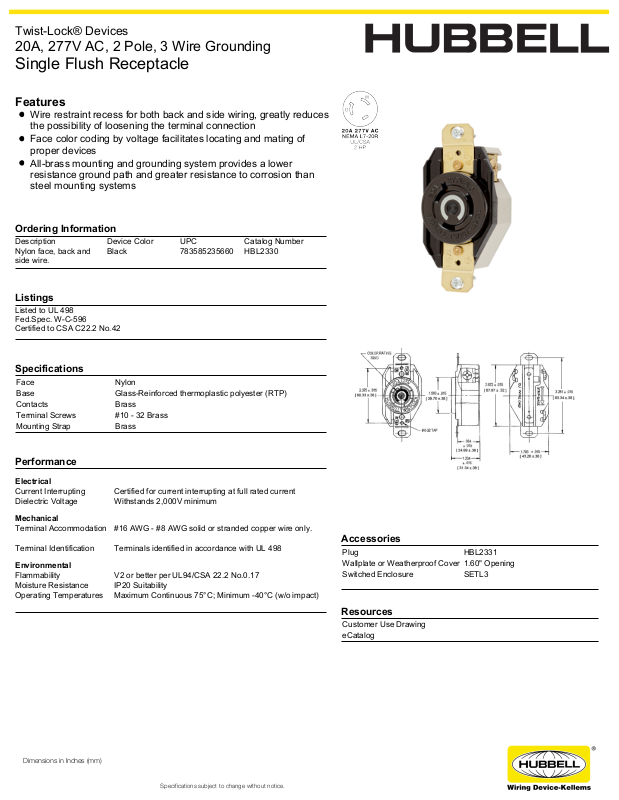

Hubbell HBL2330 Specifications

Twist-Lock® Devices

20A, 277V AC, 2 Pole, 3 Wire Grounding

Single Flush Receptacle

Features

Wire restraint recess for both back and side wiring, greatly reduces
the possibility of loosening the terminal connection

Face color coding by voltage facilitates locating and mating of
proper devices

All-brass mounting and grounding system provides a lower
resistance ground path and greater resistance to corrosion than
steel mounting systems

Ordering Information

Description Device Color UPC Catalog Number
Nylon face, back and
side wire.

Listings

Listed to UL 498
Fed.Spec. W-C-596
Certified to CSA C22.2 No.42

Black 783585235660 HBL2330

Specifications

Face Nylon
Base Glass-Reinforced thermoplastic polyester (RTP)
Contacts Brass
Terminal Screws #10 - 32 Brass
Mounting Strap Brass

Performance

Electrical

Current Interrupting Certified for current interrupting at full rated current
Dielectric Voltage Withstands 2,000V minimum

Mechanical

Terminal Accommodation #16 AWG - #8 AWG solid or stranded copper wire only.

Terminal Identification Terminals identified in accordance with UL 498

Environmental

Flammability V2 or better per UL94/CSA 22.2 No.0.17
Moisture Resistance IP20 Suitability
Operating Temperatures Maximum Continuous 75°C; Minimum -40°C (w/o impact)

Accessories

Plug HBL2331
Wallplate or Weatherproof Cover 1.60" Opening
Switched Enclosure SETL3

Resources

Customer Use Drawing
eCatalog

Dimensions in Inches (mm)

Specifications subject to change without notice.
