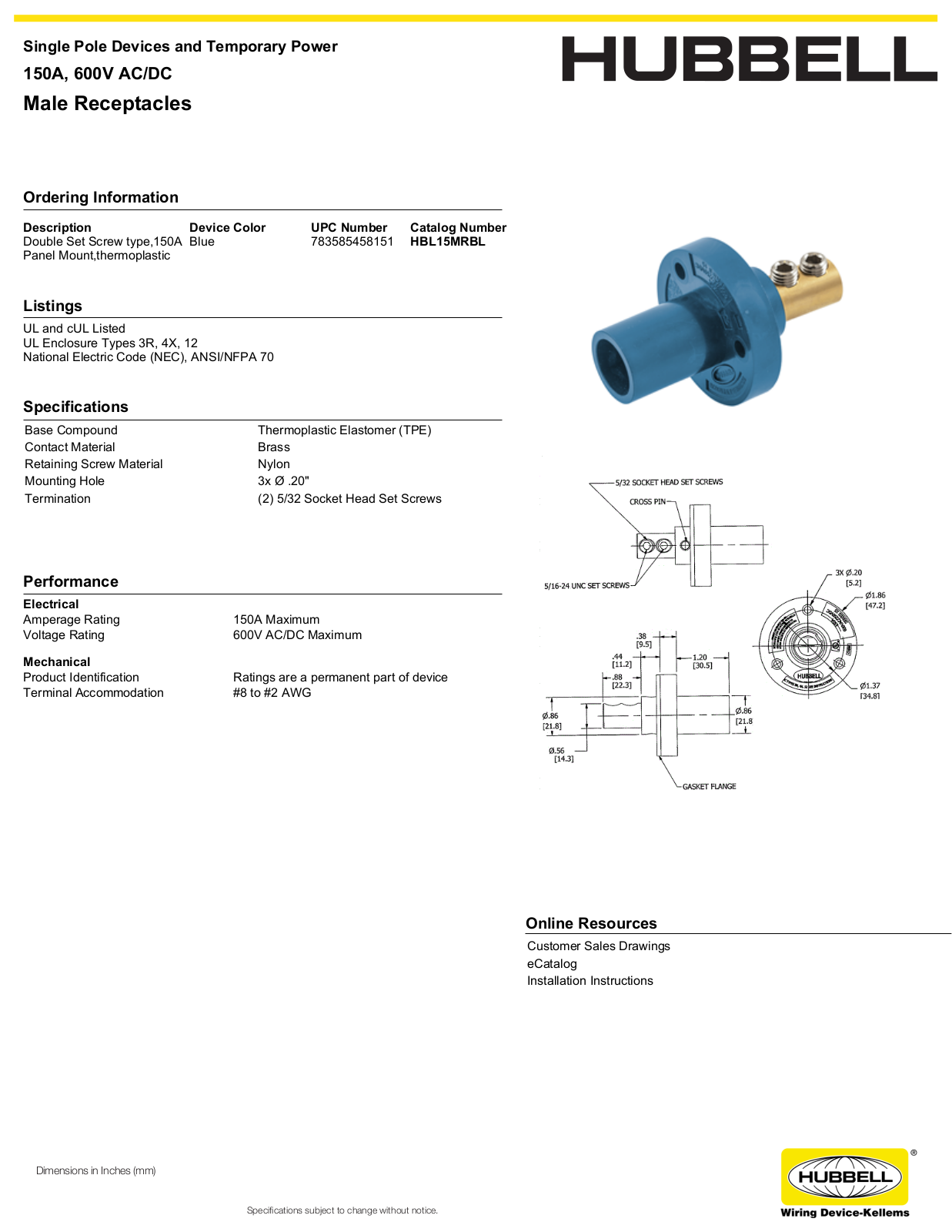

Hubbell HBL15MRBL Specifications

Single Pole Devices and Temporary Power

150A, 600V AC/DC

Male Receptacles

Ordering Information

Description Device Color UPC Number Catalog Number

Double Set Screw type,150A
Panel Mount,thermoplastic

Listings

UL and cUL Listed
UL Enclosure Types 3R, 4X, 12
National Electric Code (NEC), ANSI/NFPA 70

Specifications

Base Compound Thermoplastic Elastomer (TPE)
Contact Material Brass
Retaining Screw Material Nylon
Mounting Hole 3x Ø .20"
Termination (2) 5/32 Socket Head Set Screws

Blue 783585458151 HBL15MRBL

Performance

Electrical

Amperage Rating 150A Maximum
Voltage Rating 600V AC/DC Maximum

Mechanical

Product Identification Ratings are a permanent part of device
Terminal Accommodation #8 to #2 AWG

Online Resources

Customer Sales Drawings
eCatalog
Installation Instructions

Dimensions in Inches (mm)

Specifications subject to change without notice.
