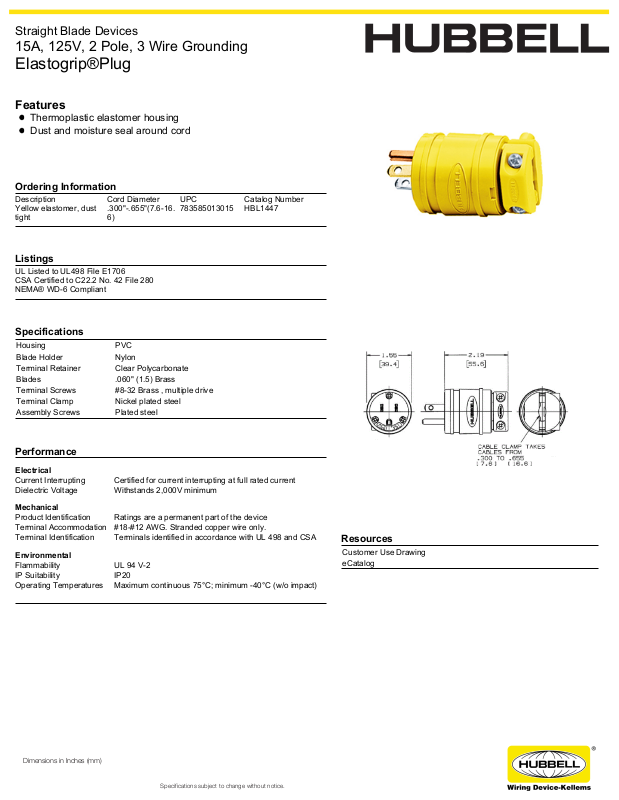

Hubbell HBL1447 Specifications

Straight Blade Devices

15A, 125V, 2 Pole, 3 Wire Grounding

Elastogrip®Plug

Features

Thermoplastic elastomer housing
Dust and moisture seal around cord

Ordering Information

Description Cord Diameter UPC Catalog Number
Yellow elastomer, dust
tight

Listings

UL Listed to UL498 File E1706
CSA Certified to C22.2 No. 42 File 280
NEMA® WD-6 Compliant

.300"-.655"(7.6-16.6)783585013015 HBL1447

Specifications

Housing PVC
Blade Holder Nylon
Terminal Retainer Clear Polycarbonate
Blades .060" (1.5) Brass
Terminal Screws #8-32 Brass , multiple drive
Terminal Clamp Nickel plated steel
Assembly Screws Plated steel

Performance

Electrical

Current Interrupting Certified for current interrupting at full rated current
Dielectric Voltage Withstands 2,000V minimum

Mechanical

Product Identification Ratings are a permanent part of the device
Terminal Accommodation #18-#12 AWG. Stranded copper wire only.
Terminal Identification Terminals identified in accordance with UL 498 and CSA

Environmental

Flammability UL 94 V-2
IP Suitability IP20
Operating Temperatures Maximum continuous 75°C; minimum -40°C (w/o impact)

Resources

Customer Use Drawing
eCatalog

Dimensions in Inches (mm)

Specifications subject to change without notice.
