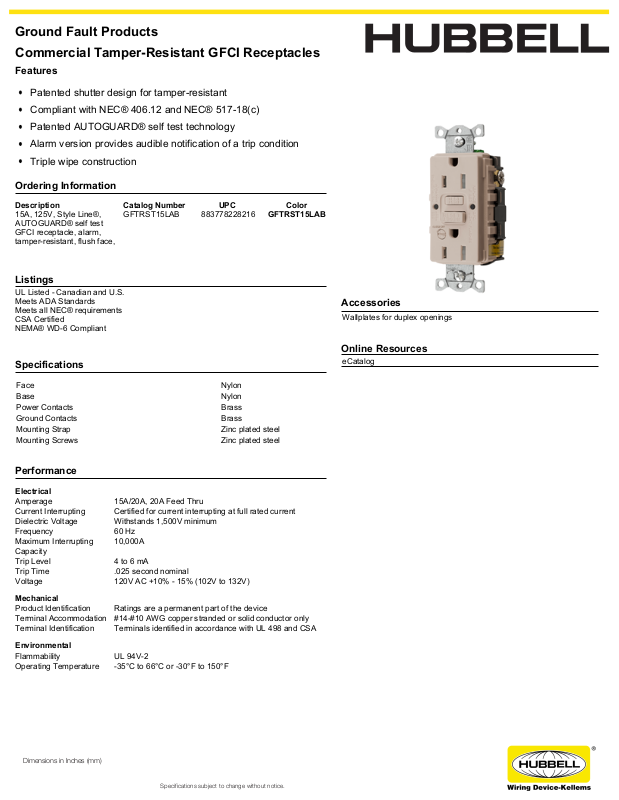

Hubbell GFTRST15LAB Specifications
Ground Fault Products
Commercial Tamper-Resistant GFCI Receptacles
Features
Patented shutter design for tamper-resistant
Compliant with NEC® 406.12 and NEC® 517-18(c)
Patented AUTOGUARD® self test technology
Alarm version provides audible notification of a trip condition
Triple wipe construction
Ordering Information
Description Catalog Number UPC Color
15A, 125V, Style Line®,
AUTOGUARD® self test
GFCI receptacle, alarm,
tamper-resistant, flush face,
Listings
UL Listed - Canadian and U.S.
Meets ADA Standards
Meets all NEC® requirements
CSA Certified
NEMA® WD-6 Compliant
GFTRST15LAB 883778228216 GFTRST15LAB
Accessories
Wallplates for duplex openings
Specifications
Face Nylon
Base Nylon
Power Contacts Brass
Ground Contacts Brass
Mounting Strap Zinc plated steel
Mounting Screws Zinc plated steel
Performance
Electrical
Amperage 15A/20A, 20A Feed Thru
Current Interrupting Certified for current interrupting at full rated current
Dielectric Voltage Withstands 1,500V minimum
Frequency 60 Hz
Maximum Interrupting
Capacity
Trip Level 4 to 6 mA
Trip Time .025 second nominal
Voltage 120V AC +10% - 15% (102V to 132V)
Mechanical
Product Identification Ratings are a permanent part of the device
Terminal Accommodation #14-#10 AWG copper stranded or solid conductor only
Terminal Identification Terminals identified in accordance with UL 498 and CSA
Environmental
Flammability UL 94V-2
Operating Temperature -35°C to 66°C or -30°F to 150°F
10,000A
Online Resources
eCatalog
Dimensions in Inches (mm)
Specifications subject to change without notice.
