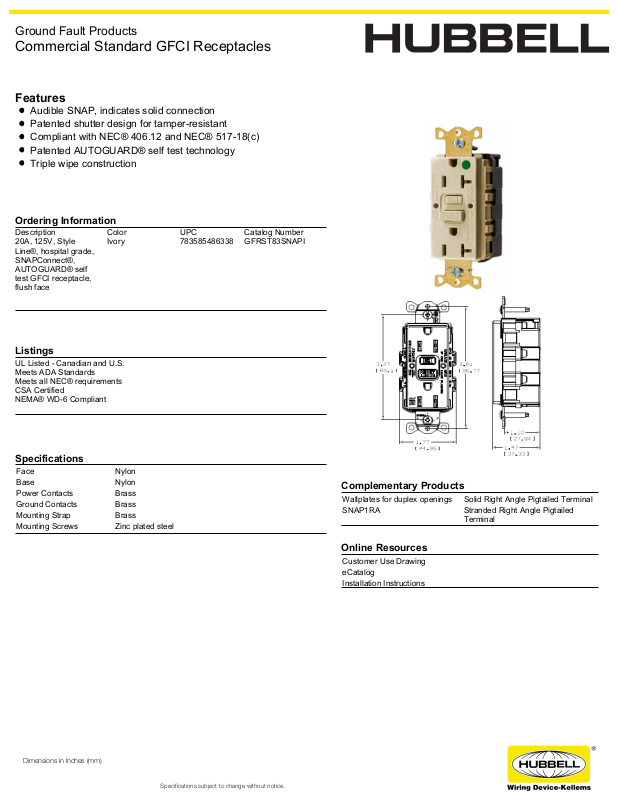

Hubbell GFRST83SNAPI Specifications

Ground Fault Products

Commercial Standard GFCI Receptacles

Features

Audible SNAP, indicates solid connection
Patented shutter design for tamper-resistant
Compliant with NEC® 406.12 and NEC® 517-18(c)
Patented AUTOGUARD® self test technology
Triple wipe construction

Ordering Information

Description Color UPC Catalog Number
20A, 125V, Style
Line®, hospital grade,
SNAPConnect®,
AUTOGUARD® self
test GFCI receptacle,
flush face

Ivory 783585486338 GFRST83SNAPI

Listings

UL Listed - Canadian and U.S.
Meets ADA Standards
Meets all NEC® requirements
CSA Certified
NEMA® WD-6 Compliant

Specifications

Face Nylon
Base Nylon
Power Contacts Brass
Ground Contacts Brass
Mounting Strap Brass
Mounting Screws Zinc plated steel

Complementary Products

Wallplates for duplex openings Solid Right Angle Pigtailed Terminal
SNAP1RA Stranded Right Angle Pigtailed

Terminal

Online Resources

Customer Use Drawing
eCatalog
Installation Instructions

Dimensions in Inches (mm)

Specifications subject to change without notice.
