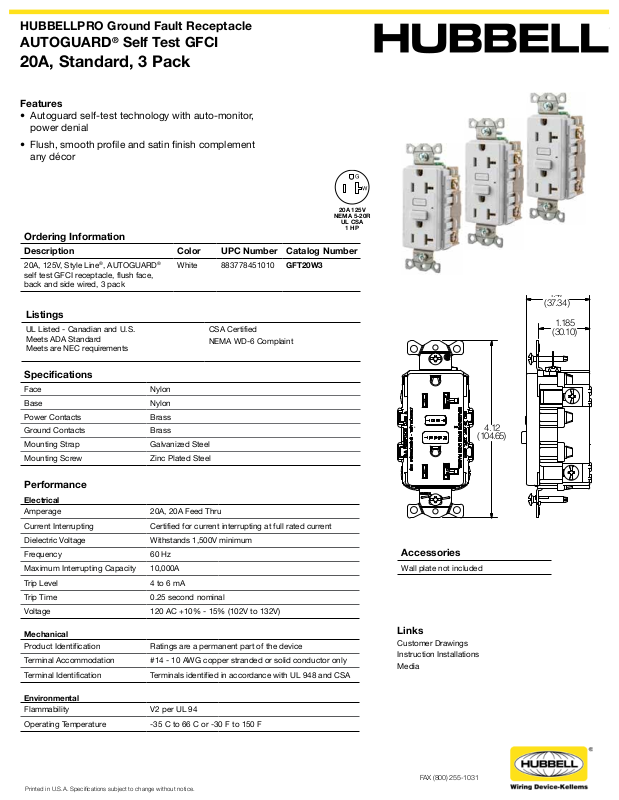

Hubbell GF20W3 Specifications

HUBBELLPRO Ground Fault Receptacle

1.185

(30.10)

1.47

(37.34)

4.12

(104.65)

NEMA 5-20R

AUTOGUARD® Self Test GFCI

20A, Standard, 3 Pack

Features

• Autoguard self-test technology with auto-monitor,
power denial

• Flush, smooth profile and satin finish complement
any décor

20A 125V

UL CSA

Ordering Information

Description Color UPC Number Catalog Number

20A, 125V, Style Line®, AUTOGUARD®
self test GFCI receptacle, flush face,
back and side wired, 3 pack

Listings

UL Listed - Canadian and U.S.
Meets ADA Standard
Meets are NEC requirements

White 883778451010 GFT20W3

CSA Certified
NEMA WD-6 Complaint

1 HP

Specications

Face Nylon

Base Nylon

Power Contacts Brass

Ground Contacts Brass

Mounting Strap Galvanized Steel

Mounting Screw Zinc Plated Steel

Performance

Electrical

Amperage 20A, 20A Feed Thru

Current Interrupting Certified for current interrupting at full rated current

Dielectric Voltage Withstands 1,500V minimum

Frequency 60 Hz

Maximum Interrupting Capacity 10,000A

Trip Level 4 to 6 mA

Trip Time 0.25 second nominal

Voltage 120 AC +10% - 15% (102V to 132V)

Mechanical

Product Identification Ratings are a permanent part of the device

Terminal Accommodation #14 - 10 AWG copper stranded or solid conductor only

Terminal Identification Terminals identified in accordance with UL 948 and CSA

Accessories

Wall plate not included

Links

Customer Drawings
Instruction Installations
Media

Environmental

Flammability V2 per UL 94

Operating Temperature -35 C to 66 C or -30 F to 150 F

Printed in U.S.A. Specications subject to change without notice.
