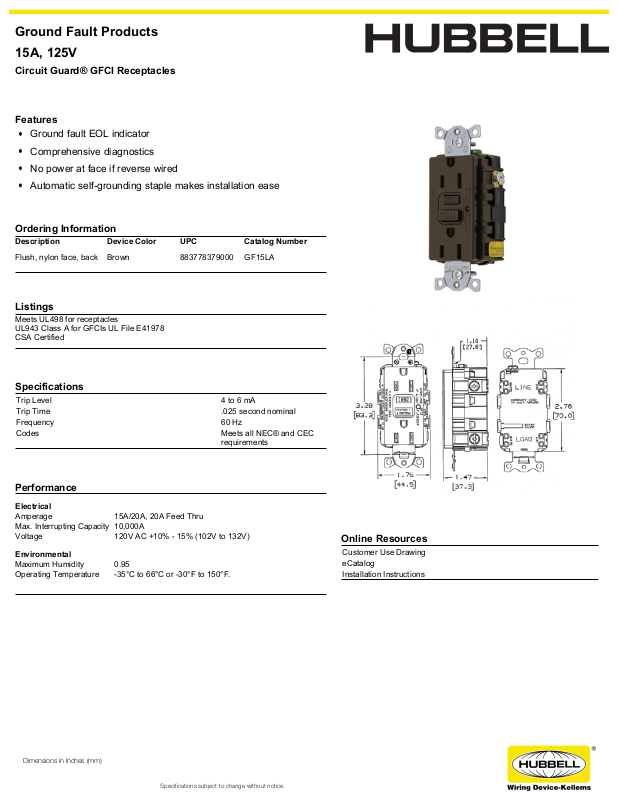

Hubbell GF15LA Specifications
Ground Fault Products
15A, 125V
Circuit Guard® GFCI Receptacles
Features
Ground fault EOL indicator
Comprehensive diagnostics
No power at face if reverse wired
Automatic self-grounding staple makes installation ease
Ordering Information
Description Device Color UPC Catalog Number
Flush, nylon face, back Brown 883778379000 GF15LA
Listings
Meets UL498 for receptacles
UL943 Class A for GFCIs UL File E41978
CSA Certified
Specifications
Trip Level 4 to 6 mA
Trip Time .025 second nominal
Frequency 60 Hz
Codes Meets all NEC® and CEC
requirements
Performance
Electrical
Amperage 15A/20A, 20A Feed Thru
Max. Interrupting Capacity 10,000A
Voltage 120V AC +10% - 15% (102V to 132V)
Environmental
Maximum Humidity 0.95
Operating Temperature -35°C to 66°C or -30°F to 150°F.
Online Resources
Customer Use Drawing
eCatalog
Installation Instructions
Dimensions in Inches (mm)
Specifications subject to change without notice.
