INSTALLATION, OPERATION &
MAINTENANCE DATA SHEET

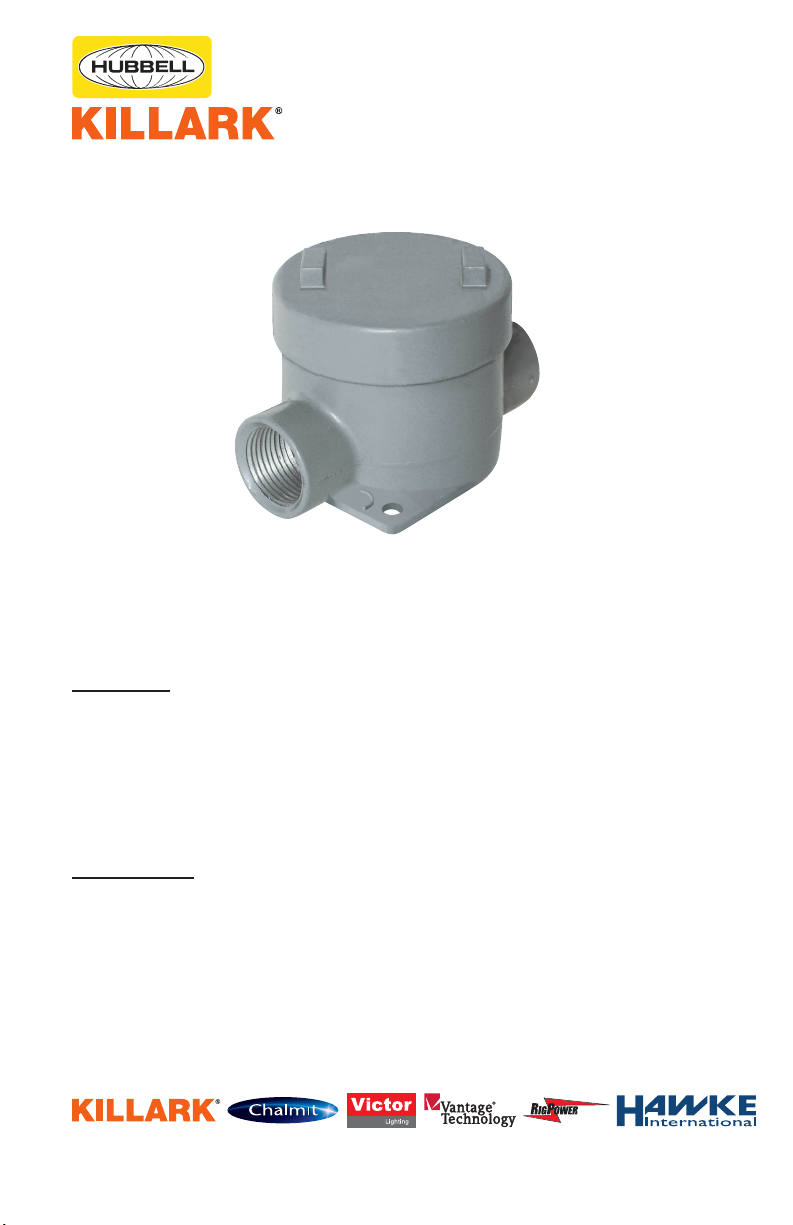

CATALOG LOGIC (GEx-x)
GEB Series
GEB Series
CATALOG LOGIC (GEx-x)
CAUTION:
Before installing, make sure you are compliant with area classications, failure to do so may result in bodily injury,
death and property damage. Do not attempt installation until you are familiar with the following procedures. All
installation must comply with the applicable Electrical Code.
Make sure that the circuit is de-energized before starting installation or maintenance.
Verify that the installation is grounded. Failure to ground will create electrical shock hazards, which can cause
serious injury and or death.
IMPORTANT:
Please read these instructions carefully before installing or maintaining this equipment. Good electrical practices
should be followed at all times and this data should be used as a guide only.
Technical information, advice and recommendations contained in these documents is based upon information
that Killark believes to be reliable. All the information and advice contained in these documents is intended for
use only by persons having been trained and possessing the requisite skill and know-how and to be used by
such persons only at their own discretion and risk. The nature of these instructions is informative only and does
not cover all of the details, variations or combinations in which this equipment may be used, its storage, delivery,
installation, check out, safe operation and maintenance. Since conditions of use of the product are outside of the
care, custody and control of Killark, the purchaser should determine the suitability of the product for his intended
use, and assumes all risk and liability whatsoever in connection therewith.
3940 Dr. Martin Luther King Drive
St. Louis, MO 63113
P/N KIL00921432 FORM NO. K1432 01/14 ERO-8-007-14
Page 1 of 2
Page 2
Before installing, be sure to read and be familiar with
the following instruction procedures. All installations
must comply with applicable local, National Electrical
Codes and/or Canadian Electrical Code.
GEB series conduit boxes are installed in conduit
systems within hazardous areas. The function
of the GEB series are protection for conductors
in threaded rigid conduit, act as a pull and splice
boxes, interconnect lengths of conduit, change
conduit directions & provide access to conductors for
maintenance and future system changes.
DIRECTIONS FOR INSTALLATION
WARNING: Electrical power supply MUST BE OFF
Before and during installation and maintenance.
1. Do not use this equipment for any other than the
intended use as specied per certied UL or CSA
les and their ratings.
2. Turn OFF the supplying circuit before beginning
installation or performing any maintenance. With
power turned off, service must be done in nonhazardous atmosphere.
3. Ensure thread type and sizes are compatible with
enclosure thread.
4. The tting must be engaged per instructed NEC
regulations located at 500.8(E)(A), E2, or E3.
Killark thread lubricants should be used to assist
achieving an easier t.
5. Connect ground wiring to Green Ground screw.
6. All open conduit hubs should be sealed with the
correct NPT size insert plugs of similar metal.
3940 Dr. Martin Luther King Drive
St. Louis, MO 63113
P/N KIL00921432 FORM NO. K1432 01/14 ERO-8-007-14
Page 2 of 2
