Type AR (Automation-Ready) Switch
14.4kV, 25kV or 34.5kV 900 Amperes Continuous/Interrupt
U.S. Patents 6,207,919; 6,215,082;
Description
The Hubbell unitized Type AR switch is a distribution-level, loadbreak, gang-operated side-break switch designed to meet not only today’s needs but well into utilities’ future of distribution automation. Designed for nominal system voltages of 14.4kV and 25kV three- and four-wire systems and 34.5kV grounded-wye systems. The Type AR switch is available with a variety of options, and in ratings for present and planned requirements.
To minimize eld installation time, the Type AR switch is pre-assembled, adjusted and mounted on a crossarm. Instal­lation time is even faster for a Type AR switch with the hook stick-operation option.
Horizontal Mounting
(Torsional down-the-pole control shown)
Inverted Mounting
Variations and Configurations
The Type AR switch is available in ve basic congura­tions:
•Horizontal •Vertical
•Phase-over-Phase
•Delta •Inverted All feature clockwise opening and are operable by torsional or reciprocating controls as well a hookstick operation option (full-length down-the-pole control or crossarm-mounted hook stick-operation control).
1. Full-length down-the-pole controls consist of Torsional swing-handle operation for Horizontal, Delta and Inverted switches and Reciprocating pump-handle operation for Verti­cal and Phase-over-Phase switches. (Standard Duty or Heavy Duty conrols are available for Vertical and Phase-over-Phase switches.) Switch open or close positions locking provisions are provided.
2. Crossarm-mounted hook stick-operation controls
provide pull-to-open / pull-to-close switch with maximum target hook stick accessibility.
Features:
All three phase switches feature a four-link overtoggle mecha­nism to assure locked closed blades, mechanical advantage for easier open and close operation, and "snap" feedback to the operator.
Phase­over­Phase
(Hook stick control shown)
Vertical Mounting
(Reciprocating down-the-pole control shown)
Mounting
(Reciprocating down-the-pole control shown)
Delta Mounting
(Hook stick control shown)
Type AR Switch Ratings
Nominal Voltage/Lightning Impulse Withstand .... 14.4 kV/110 kV, 25 kV/150 kV or 34.5 kV grounded-wye/150 kV
Continuous Current ................................................. 900 amperes
Interrupting Current ............................................... 900 amperes
Peak Withstand Current...........................................65,000 amperes peak
Short Time Withstand Current...........3 sec.............25,000 amperes, symmetrical
Fault Making: 1 time ................. ..........................25,000 amperes, asymmetrical
3 time ................. ..........................20,000 amperes, asymmetrical
Dead-ending: .............................................................8,000-lb. working load
Ice Breaking: ............................................................
SEPTEMBER 2007 HUBBELL / CHANCE COMPANY – CENTRALIA, MISSOURI
3
/4-in. thick, opening and closing
®
®
POWER SYSTEMS, INC.
Type AR (Automation-Ready) Switch
14.4kV, 25kV or 34.5kV 900 Amperes Continuous/Interrupt
14A-3
Feature
Automation-ready design
Advantage —
• Compatiblewithtoday’sD/Aenvironmentbyaddingamotoroperator
and RTU of your choice, or upgrade in the future
• 900-ampcontinuousand
• Meetspresentandfutureoperationrequirements
interruption current rating
• Four-linkovertoggle
mechanism
• Mechanicaladvantagereducesoperatingtorquetothelowestlevel
in the industry to date
• Overtoggle feature assures blades are closed and gives “snap”
feedback to the operator
• Hookstickoperation
capability
• Unitized,pre-assembled
• Minimizesinstallationtime,reducespossiblevandalism,eliminates
control adjustments
• Minimizesinstallationtimeandeliminatescontroladjustments
construction
• Fourmountingarrangements
• Meetsvariousutilityinstallationrequirements
7
Interrupter
5
6
8
4
3
2
1
Available Options
Hook stick Operation The Type AR switch can be operated
by a hook stick operation. This option eliminates control pipe sections down the pole and their attendant adjustment during installation and maintenance.
Extra Pipe The extra pipe section includes guide, coupling, and all hardware for attachment.
Extension Links When deadending to the AR switch, exten- sion links must be used to give needed clearance. The end clevis has a slotted hole for inserting the machine bolt with­out having to remove the extension bar. The extension links supplied are 14 inches long, hot-dip galvanized, and REA accepted. Catalog No. C2070112; six required per switch.
Surge Arrester Brackets Three brackets can be supplied for mounting six surge arresters (utility supplied) for over­voltage protection.
Sensor Brackets Extension Brackets can be supplied, or added to the AR Switch, to allow for the additon of line volt­age/current sensors.
Single Phase of Type AR Switch
(1) Hot-rolled steel base formed into a channel and galvanized per ASTM A153.
(2) Hot-rolled crank lever provides high strength and corro­sion resistance. Galvanized per ASTM A153.
(3) Delrin shaft eliminates the need for lubrication during the life of the switch.
(4) Insulators available in 2.25" bolt circle, porcelain or polymer.
(5) High-conductivity copper with phosphorous-bronze back­up springs and copper-tungsten fault-closing tips provide reli­able contact areas. Silver-to-silver current-transfer points.
(6) Blade formed from hard-drawn, high-conductivity copper for maximum current carrying capability.
(7) Interrupter provides current interruption without exter­nal arc or ame. High-strength polyurethane material for strength, weatherability and UV resistance. Bolted tongue­in-groove mounting ensures positive alignment.
(8) Polycarbonate ice shield helps protect contacts from ice build up.
Crossarm Braces Crossarm braces may be specied as an option.
ESP
inch bolt circle, are available in a U.S.-manufactured ESP polymer design. They are light weight, durable, and they offer long-term performance in every type of environment.
Terminal Connectors Catalog No. ATC1343, fortied cadmi­um-plated aluminum parallel-groove clamp can be supplied with switches. Six per switch.
Cable Range: Minimum No. 2 solid copper [0.258 inch (6.55 mm)] to maximum 500 kcmil copper [0.811 inch (20.60 mm)].
Control Insulator One 150 kV LIW (Lightining Impulse With­stand - BIL) polymer insulator in vertical control pipe.
Captive Hardware Two stainless-steel spline bolts pressed into each terminal pad, nuts and lockwashers included.
®
bushing coupled with a cast aluminum rotating
polymer Insulators The distribution insulators, 2.25-
SEPTEMBER 2007HUBBELL / CHANCE COMPANY – CENTRALIA, MISSOURI
14A-4
®
®
POWER SYSTEMS, INC.
Type AR (Automation-Ready) Switch
14.4kV, 25kV or 34.5kV 900 Amperes Continuous/Interrupt
Horizontal Mounting
SEPTEMBER 2007 HUBBELL / CHANCE COMPANY – CENTRALIA, MISSOURI
®
®
POWER SYSTEMS, INC.
Type AR (Automation-Ready) Switch
14.4kV, 25kV or 34.5kV 900 Amperes Continuous/Interrupt
Vertical Mounting
14A-5
SEPTEMBER 2007HUBBELL / CHANCE COMPANY – CENTRALIA, MISSOURI
14A-6
®
®
POWER SYSTEMS, INC.

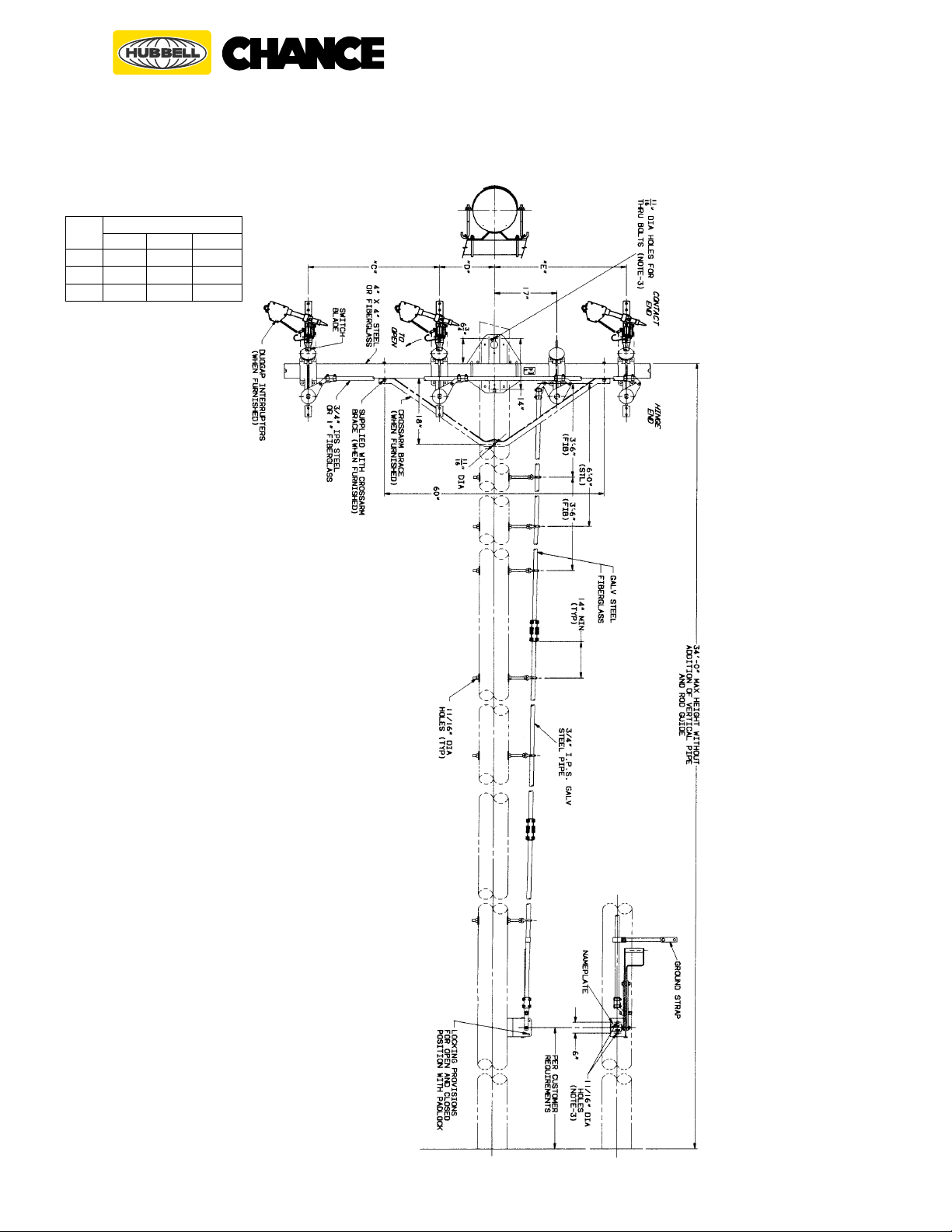

7-1/4" 184 MM
(17.1KV)16-1/4" 413 MM (29KV)19-1/4" 489 MM
ALL MOUNTING HARDWARE 5/8"(16 MM)DIA
23-1/2" 597 MM
28 FT(8.5 M)MAX WITHOUT ADDITION OF PIPE SECTION
ENF OF CROSSARM
VIEW "A"-"A"
6-1/2" 165 MM
25" 635 MM
4"(102 MM)SQUARE CROSSARM GALV STEEL OR FIBERGLASS
2-1/2" 64 MM
81-1/2" 2070 MM
8-1/2" 216 MM
11-1/2" 292 MM
99" 2515 MM
10" 254 MM
14" 356 MM
14" 356 MM
6" 152 MM
32" 813 MM
32" 813 MM
SIDE VIEW
STANDARD CONTROL TYPE "S" AND "F"
3/4"(19 MM)NPS GALV PIPE OR 1"(25 MM)FIBERGLASS ROD
TOP SECTION 3/4"(19 MM) NPS GALV PIPE OR 1"(25 MM) FIBERGLASS ROD
COUPLINGS
GUIDES
ALL LOWER SECTIONS 3/4"(19 MM) NPS GALV PIPE
85" 216 MM (TYPICAL)
(TYPICAL)
"B-B"
RECIPROCATING HANDLE
GROUND STRAP
"B"
"B"
HEAVY DUTY CONTROL
TYPE "T" AND "G"
AS REQUIRED BY USER
NAMEPLATE
OPEN AND CLOSED LOCKING PROVISIONS
6" 152 MM
TOP SECTION 1-1/4"(32 MM) NPS GALV PIPE OR FIBERGLASS
STEADY LEVER
ALL LOWER SECTIONS 1-1/4"(32 MM) NPS GALV PIPE
6" 152 MM (TYPICAL)
86-3/4" 2203 MM
84" 2134 MM (TYPICAL)
"A"
"A"
Type AR (Automation-Ready) Switch
14.4kV, 25kV or 34.5kV 900 Amperes Continuous/Interrupt
Phase-over-Phase Mounting
SEPTEMBER 2007 HUBBELL / CHANCE COMPANY – CENTRALIA, MISSOURI
®
®
POWER SYSTEMS, INC.
Type AR (Automation-Ready) Switch
14.4kV, 25kV or 34.5kV 900 Amperes Continuous/Interrupt
Delta Mounting
14A-7
SEPTEMBER 2007HUBBELL / CHANCE COMPANY – CENTRALIA, MISSOURI
14A-8
®
®
POWER SYSTEMS, INC.
Type AR (Automation-Ready) Switch
14.4kV, 25kV or 34.5kV 900 Amperes Continuous/Interrupt
Inverted Mounting
SEPTEMBER 2007 HUBBELL / CHANCE COMPANY – CENTRALIA, MISSOURI
®
®
POWER SYSTEMS, INC.
Type AR (Automation-Ready) Switch
14.4kV, 25kV or 34.5kV 900 Amperes Continuous/Interrupt
Catalog Numbering System
14A-9
U.S. Patents 6,207,919; 6,215,082; 6,281,460; 6,409,135; 6,459,053; 6,541,717; 6,818,846; 6,946,607.
A
R
Position 1:
Configuration
1 = Horizontal 2 = Vertical 3 = Ø-over-Ø 4 = Delta
5 = Inverted
1
XX
Position 2:
Insulation, kV Impulse (maximum system kV)
1 = 110 porcelain (17.1kV) 3 = 110 polymer (17.1kV) 4 = 150 polymer (29kV) 6 = 150 polymer
(38kV grounded-wye) 7 = 150 polymer Long Leak (39.6") (38kV grounded-wye)
X X
Position 3:
Crossarm/Inter-
Phase Shaft
S = Steel
F = Fiberglass
M = Steel crossarm, berglass
interphase shaft
Option Tables by Configuration
Horizontal and Inverted Switches B = Sensor Brackets * C = Control Insulator
H = Captive Hardware L = Surge Arrester Brackets * P = Extra Pipe * PP = Two Extra Pipes S = Steel Crossarm Brace, only one supplied
T = Terminal Connectors (ATC 1343) W = Wood Crossarm Brace, only one supplied X = Extension Links
Phase-over-PhaseSwitch,S&FControls
B = Sensor Brackets * C = Control Insulator
H = Captive Hardware L = Surge Arrester Brackets * P = Extra Pipe * PP = Two Extra Pipes
T = Terminal Connectors (ATC 1343) X = Extension Links
Phase-over-PhaseSwitch,S&FControls
B = Sensor Brackets * C = Control Insulator
H = Captive Hardware L = Surge Arrester Brackets * R = Extra Pipe * RR = Two Extra Pipes
T = Terminal Connectors (ATC 1343) X = Extension Links
X X X X X
XXX
Position 4:
Standard Controls — Pipe sizes
on drawings, pages 14A-4 thru -8
(All configurations)
S = All Steel Vertical Sections
F = One Fiberglass Vertical Section
H = Vertical Controls replaced with Hook stick Operating Mechanism
Heavy-Duty Controls — 11⁄4" IPS
(Vertical and Ø-over-Ø only) T = All Steel Vertical Sections G = One Fiberglass Vertical Section
Positions 5 through 12:
See Option Tables for each Conguration
VerticalSwitch,S&FControls
B = Sensor Brackets * C = Control Insulator H = Captive Hardware L = Surge Arrester Brackets * P = Extra Pipe * PP = Two Extra Pipes
T = Terminal Connectors (ATC 1343)
Vertical Switch, T & G Controls B = Sensor Brackets * D = Control Insulator H = Captive Hardware L = Surge Arrester Brackets * R = Extra Pipe * RR = Two Extra Pipes
T = Terminal Connectors (ATC 1343)
Delta Switch
B = Sensor Brackets * C = Control Insulator
H = Captive Hardware
L = Surge Arrester Brackets * P = Extra Pipe
* PP = Two Extra Pipes
T = Terminal Connectors (ATC 1343)
X = Extension Links
*Options C, P, R, PP and RR do not apply when Hook Stick Operated Control is supplied.
Options H and T, Captive Hardware and Terminal Con-
nectors, cannot be ordered together.
Replacement Parts
C8180001 Interrupter for all Mounting Congurations E8181000P Live Parts for all kV Ratiings and Mounting Congurations
SEPTEMBER 2007HUBBELL / CHANCE COMPANY – CENTRALIA, MISSOURI
14A-10
®
®
POWER SYSTEMS, INC.
Unitized and Pre-Assembled
Type D7 Switches — Unitized
15 to 38 kV 600 Amperes
Three mounting variations of the D7 are available.
Horizontal Mounting
Phase-over-Phase
Mounting
Riser Pole Mounting
Application and Ratings
The Chance unitized D7 is a distribution-level, gang-operated, side-break switch for 15 through 38 kV applications. It is pre-assembled, adjusted, and mounted on a common support at the factory for three-phase service. D7 switches meet a continuous-current rating of 600 amperes, a momentary rating of 40,000 amperes, a three-second short time current rating of 25,000 amperes, and applicable NEMA and ANSI standards. It is available in 15 kV (110 kV LIW*), 27 kV (150 kV LIW*), 34.5kV (150kV LIW*) or 38 kV (200 kV LIW*). The D7 is a 600-ampere loadbreak switch with the Duogap of switching load currents up to 600 amperes, with full recovery voltage across the switch, and interrupting transformer magnetizing and line-charging currents. This switch may be used for disconnecting, line sectionalizing, circuit breaker bypassing, and isolating.
*Lightning Impulse Withstand (BIL)
Convenient Installation
Field installation time of this pre-assembled switch is greatly reduced below what is usually required to install separate gang-operated distribution level switches. The three-phase unit is conveniently raised in one piece to its mounting position, secured to the pole, control sections attached, and eld adjustment made. Proper synchronization and phase spacing have been made at the factory. Unitized switches are installed in 2 to 4 hours, compared to non-unitized switches that take 6 to 8 hours.
One-lift installation cuts time and cost of separate gang-operated, distribution­level switches.
SEPTEMBER 2007 HUBBELL / CHANCE COMPANY – CENTRALIA, MISSOURI
®
expulsion interrupters. With the Duogap, the D7 is capable
®
®
POWER SYSTEMS, INC.
Unitized and Pre-Assembled
Type D7 Switches — Unitized
15 to 38 kV 600 Amperes
DesignFeatures
The jaw socket and hinge terminal castings of the D7 are bronze with tin-plated NEMA terminal pads. The blade is a round tubular copper with attened ends to allow for a silver/copper contact. A four-point silver plated contact is supplied on the jaw end to make the switch easier to open and close. An all-copper current path is provided.
Interrupters
Chance Duogap® expulsion interrupter converts any D7 to a loadbreak switch. Built-in sockets on each switch accept the interrupter. The
Chance 15.5, 27 and 38 kV Duogap expulsion interrupters .
Duogap may be ordered with the switch or may be hotstick-installed for load management conversion. For more on the Duogap, see Bulletin No. 14-9405.
Terminal Pads, Arcing Horns
Two-hole NEMA terminal pads are standard. The D7 terminal pads are bronze with tin-plating to provide low-resistance efcient current transfer.
14A-11
A stainless steel arcing horn is provided to pick up load current, thus preventing burning or arc pitting on the main contacts.
Insulators
The Vee conguration of the insulators simulates a low prole with less bulk and a pleasing visual appearance. The gray-tone insulator for the unitized D7 switch is NEMA 3-inch BC.
15 thru 34.5 kV Switch Base and Bearings
The base castings consist of high strength, high corrosion resistant aluminum alloy. This lightweight aluminum is comparable to bronze in almost all metal technical categories, such as: ultimate tensile, tensile yield, elongation, hardness, modulus of elasticity, thermal conductivity, and electrical conductivity. Bearings are high-strength, high-density Delrin, for smooth pivotal action.
Conductors are dead-ended to each individual switch base. Pull-off holes are designed for a 6,000-lb. working load rating. The switch frame is limited to an unequal loading of 700 lb.
Common Support
The 4 x 4-inch common support member is furnished in either galva­nized-steel or berglass tubing. The “interphase” shaft which connects the three rotating insulators is constructed of the same material as the crossarm.
Controls
Controls are either all metal or metal with a vertical berglass section. Three options combine the metal or insulated interphase shaft with the metal or berglass common support.
The arcing horn will pick up load current upon closing to prevent burning or arc pitting on the main contact surfaces.
SEPTEMBER 2007HUBBELL / CHANCE COMPANY – CENTRALIA, MISSOURI
14A-12
®
®
POWER SYSTEMS, INC.
Riser Pole Mounting
Dimensions (inches)
D 36 48 48
C
15 17 17
kV 15 27 *34.5 *150 kV LIW (Lightning Impulse Withstand)
Unitized and Pre-Assembled
Type D7 Switches — Unitized
15 to 38 kV 600 Amperes
E 36 42 42
SEPTEMBER 2007 HUBBELL / CHANCE COMPANY – CENTRALIA, MISSOURI
®
®
POWER SYSTEMS, INC.
Unitized and Pre-Assembled
Type D7 Switches — Unitized
15 to 38 kV 600 Amperes
14A-13
Horizontal Mounting
Dimensions (inches)
D
kV 15 27 *34.5 *150 kV LIW (Lightning Impulse Withstand)
C 36 48 48
15 17 17
E 36 42 42
Horizontal Mounting
38 kV — 200 BIL
SEPTEMBER 2007HUBBELL / CHANCE COMPANY – CENTRALIA, MISSOURI
14A-14
®
®
POWER SYSTEMS, INC.
Unitized and Pre-Assembled
Type D7 Switches — Unitized
15 to 38 kV 600 Amperes
Phase-over-Phase Mounting
kV 15 27 *34.5 *150 kV LIW (Lightning Impulse Withstand)
Dimensions (inches)
A
84 108 108
B 36 48 48
Phase-over-Phase Mounting
38 kV — 200 kV LIW (Lightning Impulse Withstand)
SEPTEMBER 2007 HUBBELL / CHANCE COMPANY – CENTRALIA, MISSOURI
®
®
POWER SYSTEMS, INC.
Unitized and Pre-Assembled
Type D7 Switches — Unitized
15 to 38 kV 600 Amperes
15kV (110kV LIW*) Switch Phase Outline
14A-15
4" x 4" CROSSARM STEEL OR FIBERGLASS
27kV (150kV LIW*) Switch Phase Outline
34.5 kV (150kV LIW*) Switch Phase Outline
4" x 4" CROSSARM STEEL OR FIBERGLASS
*Lightning Impulse Withstand
4" x 4" CROSSARM STEEL OR FIBERGLASS
SEPTEMBER 2007HUBBELL / CHANCE COMPANY – CENTRALIA, MISSOURI
14A-16
®
®
POWER SYSTEMS, INC.
Unitized and Pre-Assembled
Type D7 Switches — Unitized
38 kV 600 Amperes
38 kV (200 LIW*) Switch Phase Outline
Ordering Information — Type D7 Unitized Switches
Catalog Numbering System
Horizontal Upright CCW Opening ------------ H
CCW Opening
CW Opening
Vertical CCW Opening ------------V
Phase-over-Phase CCW Opening ------------ P
CW Opening ------------ X
Extra pole clearance - R
Extra pole clearance - T
Support
Mounting
Galvanized Steel --- S
Fiberglass ------------ E
Ratings
15 kV/110 kV LIW* NEMA Porcelain Insulator ---1 15 kV/110 kV LIW* NEMA Polymer Insulator -----4 27 kV/150 kV LIW* NEMA Porcelain Insulator ---2 38 kV/200 kV LIW* NEMA Porcelain Insulator ---3 38 kV/200 kV LIW* NEMA Polymer Insulator ---- 6
34.5 kV/150 kV LIW* NEMA Porcelain Insulator--7
All steel controls (Used with steel support only) --A Fiberglass universal section and steel interphase shaft (Used with steel support only) ----------------- B Fiberglass universal section and interphase rod (used with Fiberglass support only) ----------------- C
NOTE: (1) 200 kV LIW* not available with vertical mounting or fiberglass crossarm. (2) Consult factory for motor operators.
*Lightning Impulse Withstand
SEPTEMBER 2007 HUBBELL / CHANCE COMPANY – CENTRALIA, MISSOURI
Controls
D7 X X X X X X
A- Additional 10 ft. operating pipe, coupling,
Options
and guide bracket. Horizontal mounting only. Cat. No. E8012729P.
B- Additional 10 ft. operating pipe, coupling,
and pipe guide. Phase-Over-Phase and Vertical only. Cat. No. E8012729P.
D- Lightning arrester brackets. Horizontal and
Vertical only. Specify Cat. No. C8011014 for complete mounting assembly for six distribution class lightning arresters.
E- Lighting arrester brackets. Phase-Over-
Phase only. Specify Cat. No. C8011381 for complete mounting assembly for six distri­bution class arresters; C8011380 for three arrester application.
Q- One 150 kV LIW* insulator in vertical
controls. Specify porcelain or polymer.
T- Six fortied cadmium-plated aluminum
parallel-groove terminal connectors. Cat. No. ATC1343 for one connector, No. 2 through 500 kcmil.
U- Crossarm braces. Wood braces for ber-
glass crossarm (pair), steel brace for steel crossarms.
Interrupter
L - With Duogap N - No interrupter
®
Interrupter
®
®
POWER SYSTEMS, INC.
Type D6 Switches — Non-Unitized
15 to 38 kV 600 Amperes
Application and Ratings
The Chance Type D6 is a distribution-level, gang-operated, side-break switch for 15 through 38kV applications. D6 switches meet a continuous-current rating of 600 amperes, a momentary rating of 40,000 amperes, a three-second short­time current rating of 25,000 amperes, and all applicable NEMA and ANSI standards. It is available in 15 kV (110 kV LIW*), 27 kV (150 kV LIW*) and 38 kV (200 kV LIW*). The unit is a 600-ampere loadbreak switch with Duogap sion interrupters. Each switch comes pretted with a socket to accept the Duogap. Orders also may specify switches come without the interrupters. With the Duogap, D6 is capable of switching load currents up to 600 amperes, with full recov­ery voltage across the switch, and interrupting transformer magnetizing and line-charging currents. The D6 switch may be used for disconnecting, line sectionalizing, circuit breaker bypassing, and isolating.
DesignFeatures
D6 jaw socket and hinge terminal pads are bronze castings with stainless steel supports. The blade is round tubular cop­per with attened ends to allow for a silver/copper contact. Silver contacts are used to ensure smooth, easy operation.
Bases and Bearings
The switch base for 38 kV (200 kV LIW*) is galvanized-steel hat-section. A sealed, greaseless main bearing supports the rotating insulator. The stainless-steel balls are encased in a high-strength, heat-treated aluminum housing for mainte­nance-free operation. The switch base for 15 kV (110 kV LIW*) and 27 kV (150 kV LIW*) is extruded aluminum channel and the bearings are high-density Delrin.
Insulators
®
expul-
The Sky-Glaze® insulator is gray porcelain NEMA 3-inch BC.
Blade Opening
All side-break D6 switches open in the counter-clockwise direction.
Terminal Pads, Arcing Horn
NEMA-standard, two-hole terminal pads accept aluminum or bronze connectors. Tin-plated bronze D6 pads reduce resistance to assure efcient current transfer. A stainless steel arcing horn picks up load current, preventing burning or arc pitting on the main contacts.
Interrupters
Chance Duogap® expulsion interrupter makes the D6 a loadbreak switch. Built-in sockets on each switch accept the interrupter. The Duogap may be ordered with the switch or may be hotstick-installed for load management conversion. For more on the Duogap, see Bulletin No.14-9405.
14A-17
Alternate Mounting Arrangements
The standard D6 switch design allows for a multitude of mounting and control congurations. The switch can be mounted horizontally or vertically. Controls can be installed on any side of the pole or off the switch ends for structure mount. Some common congurations are shown below. Consult factory for other requirements.
*Lightning Impulse Withstand
38 kV (200 kV LIW*) Switch Phase15 kV (110 kV LIW*) Switch Phase 27 kV (150 kV LIW*) Switch Phase
SEPTEMBER 2007HUBBELL / CHANCE COMPANY – CENTRALIA, MISSOURI
14A-18
®
®
POWER SYSTEMS, INC.
Type D6 Switches — Non-Unitized
15 to 38 kV 600 Amperes
Dimensions (inches)
Horizontal Mounting Horizontal Mounting 38 kV — 200 kV LIW*
kV 15 27
E 36 48
F
15 17
G 36 42
Foralternatemountingcongurations,
see preceding page.
Ordering Information Catalog Numbering System
Phase-over-Phase CCW Opening ---P Horizontal Upright CCW Opening -- H Vertical (Riser Pole) CCW Opening ---V
15 kV/110 kV LIW* NEMA Insulator - 1
27 kV/150 kV LIW* NEMA Insulator - 2
38 kV/200 kV LIW* NEMA Insulator - 3
All steel controls -------------------- A
Fiberglass universal section
and steel interphase shaft --- B
NOTE:
1. 200 kV KIW* is not available with vertical mounting or fiberglass support.
2. Consult factory for structure mounting applications.
*Lightning Impulse Withstand
SEPTEMBER 2007 HUBBELL / CHANCE COMPANY – CENTRALIA, MISSOURI
Mounting
Support
None ------------------ 0
* Galvanized Steel --- S
(Horizontal mount only)
* Supports are bundled with the control pipe separate from the switch crate.
Ratings
Controls
3. Consult factory for motor operators.
4.Ifnon-standardphasespacingisrequired,pleasepro­vide length of interphase control desired.
A- Additional 10 ft. operating pipe, coupling, and guide bracket. Horizontal mounting only. Cat. No. E8012729P. B- Additional 10 ft. operating pipe, coupling, and pipe guide. Phase-Over-Phase and Vertical only. Cat. No. E8012729P. D- Lightning arrester brackets. Horizontal and Vertical only. Specify Cat. No. C8011014 for complete mounting assembly for six distribution class arresters. E- Lighting arrester brackets. Phase-Over-Phase only. Specify Cat. No. C8011381 for complete mounting assembly for six distribution-class arresters; C8011380 for three arrester application. Q- One 150 kV LIW* insulator in vertical controls. Specify porcelain or polymer. T- Six fortied cadmium-plated aluminum parallel­ groove terminal connectors. Cat. No. ATC1343 for one connector, No. 2 through 500 kcmil.
L - With Duogap® Interrupter N - No interrupter
D6 X X X X X X
Options
Interrupter
14A-19
®
®
POWER SYSTEMS, INC.
SEPTEMBER 2007HUBBELL / CHANCE COMPANY – CENTRALIA, MISSOURI
14A-20
®
®
POWER SYSTEMS, INC.
®
®
®
®
Web: http://www.hubbellpowersystems.com
E-mail: hpsliterature@hps.hubbell.com
UNITED STATES
HUBBELL POWER SYSTEMS, INC. 210 N. Allen Centralia, Mo 65240-1395 Phone: 573-682-5521 Fax: 573-682-8714 e-mail: hpsliterature@hps.hubbell.com
SEPTEMBER 2007 HUBBELL / CHANCE COMPANY – CENTRALIA, MISSOURI
MEXICO
HUBBELL DE MEXICO, S.A. DE. CV Av. Coyoacan No. 1051 Col. Del Valle 03100 Mexico, D.F. Phone: 52-55-9151-9999 Fax: 52-55-9151-9988 e-mail: vtasdf@hubbell.com.mx
Loading...
