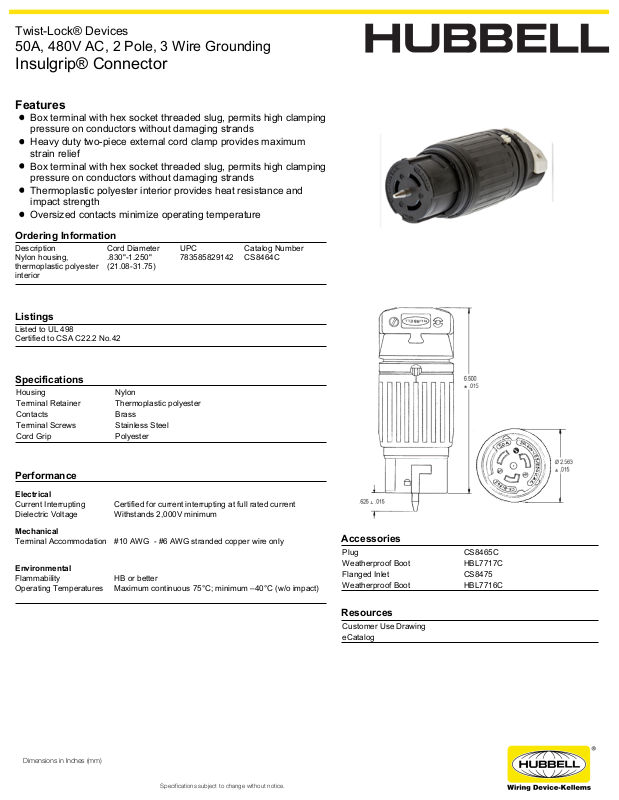

Hubbell CS8464C Specifications

Twist-Lock® Devices

50A, 480V AC, 2 Pole, 3 Wire Grounding

Insulgrip® Connector

Features

Box terminal with hex socket threaded slug, permits high clamping
pressure on conductors without damaging strands

Heavy duty two-piece external cord clamp provides maximum
strain relief

Box terminal with hex socket threaded slug, permits high clamping
pressure on conductors without damaging strands

Thermoplastic polyester interior provides heat resistance and
impact strength

Oversized contacts minimize operating temperature

Ordering Information

Description Cord Diameter UPC Catalog Number
Nylon housing,
thermoplastic polyester
interior

Listings

Listed to UL 498
Certified to CSA C22.2 No.42

.830"-1.250"
(21.08-31.75)

783585829142 CS8464C

Specifications

Housing Nylon
Terminal Retainer Thermoplastic polyester
Contacts Brass
Terminal Screws Stainless Steel
Cord Grip Polyester

Performance

Electrical

Current Interrupting Certified for current interrupting at full rated current
Dielectric Voltage Withstands 2,000V minimum

Mechanical

Terminal Accommodation #10 AWG - #6 AWG stranded copper wire only

Environmental

Flammability HB or better
Operating Temperatures Maximum continuous 75°C; minimum –40°C (w/o impact)

Accessories

Plug CS8465C
Weatherproof Boot HBL7717C
Flanged Inlet CS8475
Weatherproof Boot HBL7716C

Resources

Customer Use Drawing
eCatalog

Dimensions in Inches (mm)

Specifications subject to change without notice.
